Installation instructions, for professionals only

5.2. Connection diagram for 230 V

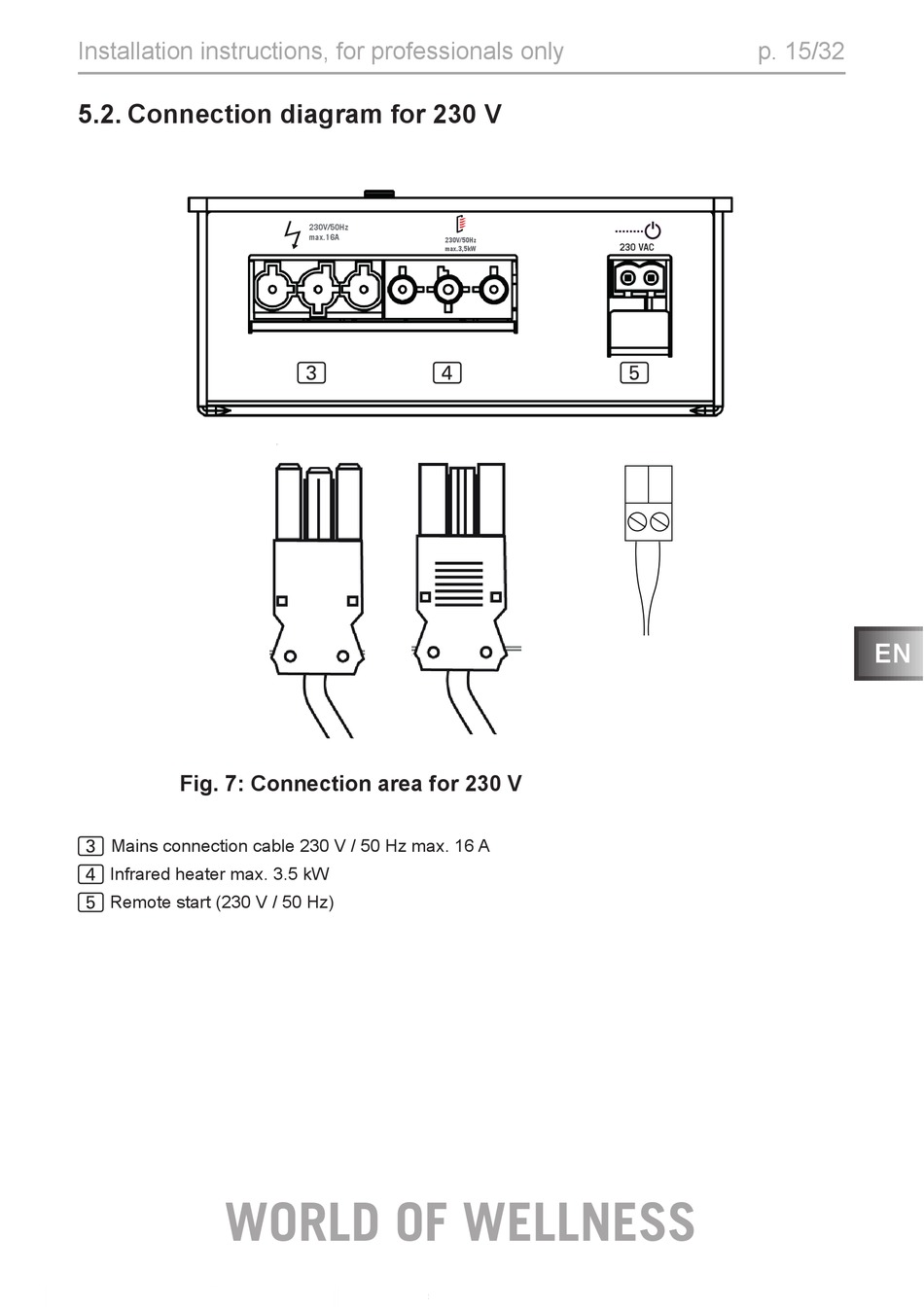

Fig. 7: Connection area for 230 V
Mains connection cable 230 V / 50 Hz max. 16 A
3
Infrared heater max. 3.5 kW
4
Remote start (230 V / 50 Hz)
5
