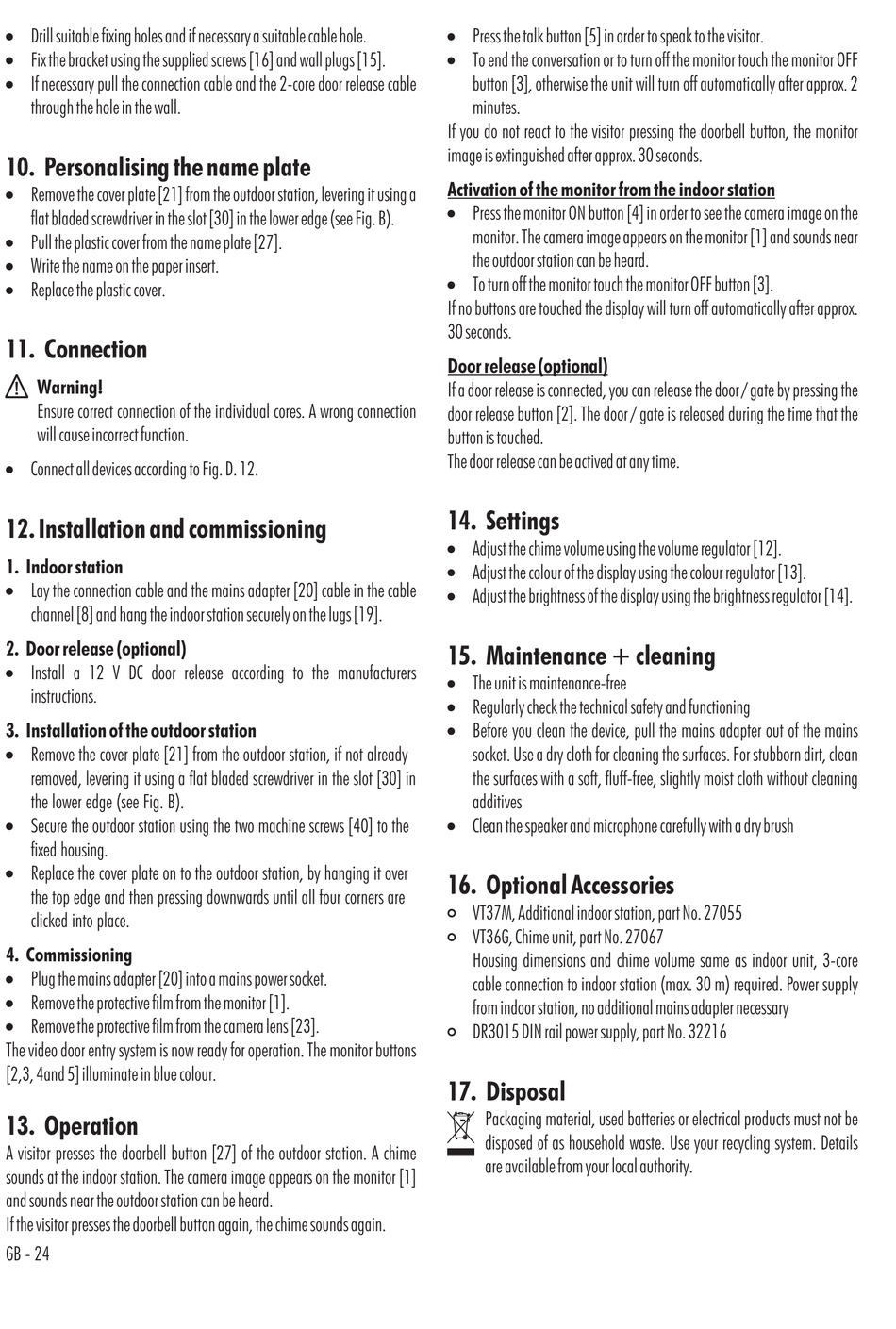

Operation; Maintenance / Cleaning - indexa VT37 Set Bedienungsanleitung

!
Drill suitable fixing holes and if necessary a suitable cable hole.
!
Fix the bracket using the supplied screws [16] and wall plugs [15].
!
If necessary pull the connection cable and the 2-core door release cable
through the hole in the wall.
10. Personalising the name plate
!
Remove the cover plate [21] from the outdoor station, levering it using a
flat bladed screwdriver in the slot [30] in the lower edge (see Fig. B).
!
Pull the plastic cover from the name plate [27].
!
Write the name on the paper insert.
!
Replace the plastic cover.
11. Connection
Warning!
Ensure correct connection of the individual cores. A wrong connection
will cause incorrect function.
!
Connect all devices according to Fig. D. 12.
12. Installation and commissioning
1. Indoor station
!
Lay the connection cable and the mains adapter [20] cable in the cable
channel [8] and hang the indoor station securely on the lugs [19].
2. Door release (optional)
!
Install a 12 V DC door release according to the manufacturers
instructions.
3. Installation of the outdoor station
!
Remove the cover plate [21] from the outdoor station, if not already
removed, levering it using a flat bladed screwdriver in the slot [30] in
the lower edge (see Fig. B).
!
Secure the outdoor station using the two machine screws [40] to the
fixed housing.
!
Replace the cover plate on to the outdoor station, by hanging it over
the top edge and then pressing downwards until all four corners are
clicked into place.
4. Commissioning
!
Plug the mains adapter [20] into a mains power socket.
!
Remove the protective film from the monitor [1].
!
Remove the protective film from the camera lens [23].
The video door entry system is now ready for operation. The monitor buttons
[2,3, 4and 5] illuminate in blue colour.

13. Operation

A visitor presses the doorbell button [27] of the outdoor station. A chime
sounds at the indoor station. The camera image appears on the monitor [1]
and sounds near the outdoor station can be heard.
If the visitor presses the doorbell button again, the chime sounds again.
GB - 24
!
Press the talk button [5] in order to speak to the visitor.
!
To end the conversation or to turn off the monitor touch the monitor OFF
button [3], otherwise the unit will turn off automatically after approx. 2
minutes.
If you do not react to the visitor pressing the doorbell button, the monitor
image is extinguished after approx. 30 seconds.
Activation of the monitor from the indoor station
!
Press the monitor ON button [4] in order to see the camera image on the
monitor. The camera image appears on the monitor [1] and sounds near
the outdoor station can be heard.
!
To turn off the monitor touch the monitor OFF button [3].
If no buttons are touched the display will turn off automatically after approx.
30 seconds.
Door release (optional)
If a door release is connected, you can release the door / gate by pressing the
door release button [2]. The door / gate is released during the time that the
button is touched.
The door release can be actived at any time.
14. Settings
!
Adjust the chime volume using the volume regulator [12].
!
Adjust the colour of the display using the colour regulator [13].
!
Adjust the brightness of the display using the brightness regulator [14].
15. Maintenance + cleaning
!
The unit is maintenance-free
!
Regularly check the technical safety and functioning
!
Before you clean the device, pull the mains adapter out of the mains
socket. Use a dry cloth for cleaning the surfaces. For stubborn dirt, clean
the surfaces with a soft, fluff-free, slightly moist cloth without cleaning
additives
!
Clean the speaker and microphone carefully with a dry brush
16. Optional Accessories
#
VT37M, Additional indoor station, part No. 27055
#
VT36G, Chime unit, part No. 27067
Housing dimensions and chime volume same as indoor unit, 3-core
cable connection to indoor station (max. 30 m) required. Power supply
from indoor station, no additional mains adapter necessary
#
DR3015 DIN rail power supply, part No. 32216
17. Disposal
Packaging material, used batteries or electrical products must not be
disposed of as household waste. Use your recycling system. Details
are available from your local authority.
