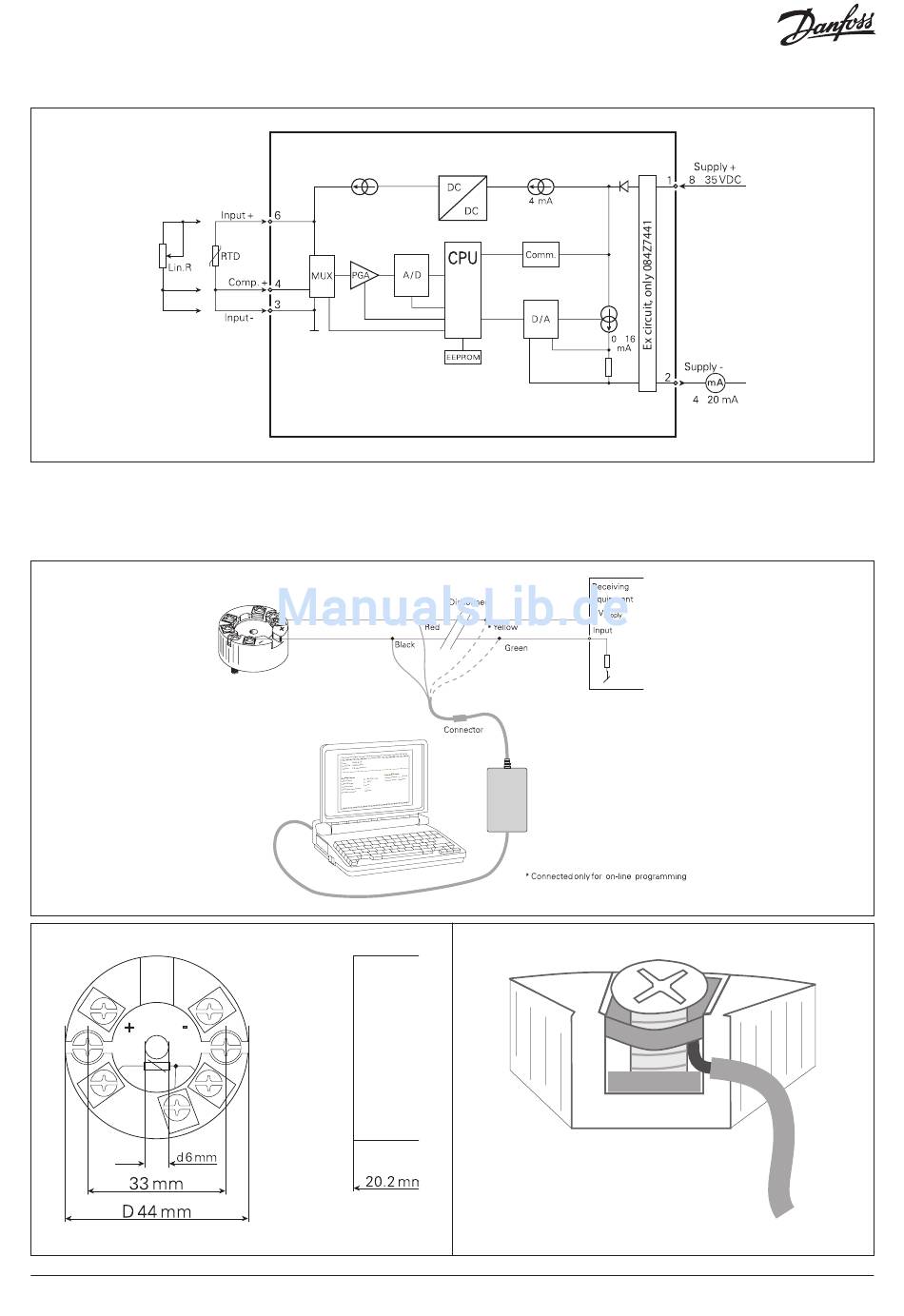

BLOCK DIAGRAM

PROGRAMMING

• Loop Link is a communications interface that is needed for programming MBT 9110
• For programming please refer to the drawing below and the help functions in PReset
• Loop Link is not approved for communication with modules installed in hazard ous (EEx) areas

Mechanical specifications

6 | 520B7737 | IC.PS.P40.A4.ML
1
2
MBT 9110
MBT 9110
084Z7440, 084Z7441
*
L oop
5909 - USB
L ink
5905 - RS232

Mounting of sensor wires

–
–
–
Wires must be mounted
between the metal plates
