CONTENTS
Application ..............................................................................................................................................................................................3
Technical characteristics .....................................................................................................................................................................3
Mounting / installation .......................................................................................................................................................................3
Applications ............................................................................................................................................................................................3
Type / version .........................................................................................................................................................................................4
Electrical specifications .......................................................................................................................................................................4
Connections ............................................................................................................................................................................................5
Block diagram .........................................................................................................................................................................................6
Programming ..........................................................................................................................................................................................6
Mechanical specifications ..................................................................................................................................................................6
Mounting of sensor wires ..................................................................................................................................................................6
Appendix ..................................................................................................................................................................................................7
- ATEX Installation drawing................................................................................................................................................................7
- Safety instructions ..............................................................................................................................................................................7
• RTD or Ohm input
• High measurement accuracy
• 3-wire connection
• Programmable sensor error value
• Can be mounted in DIN form B sensor head

Application

• Linearised temperature measurement with Pt100 / Pt1000 or Ni100 / Ni1000 sensor
• Conversion of linear resistance variation to a standard analogue current signal, for instance from valves
or Ohmic level sensors

Technical characteristics

• The RTD and resistance inputs have cable compensation for 3-wire connection

Mounting / installation

• For DIN form B sensor head mounting
• In non-hazardous areas the transmitter can be mounted on a DIN rail with a special fitting

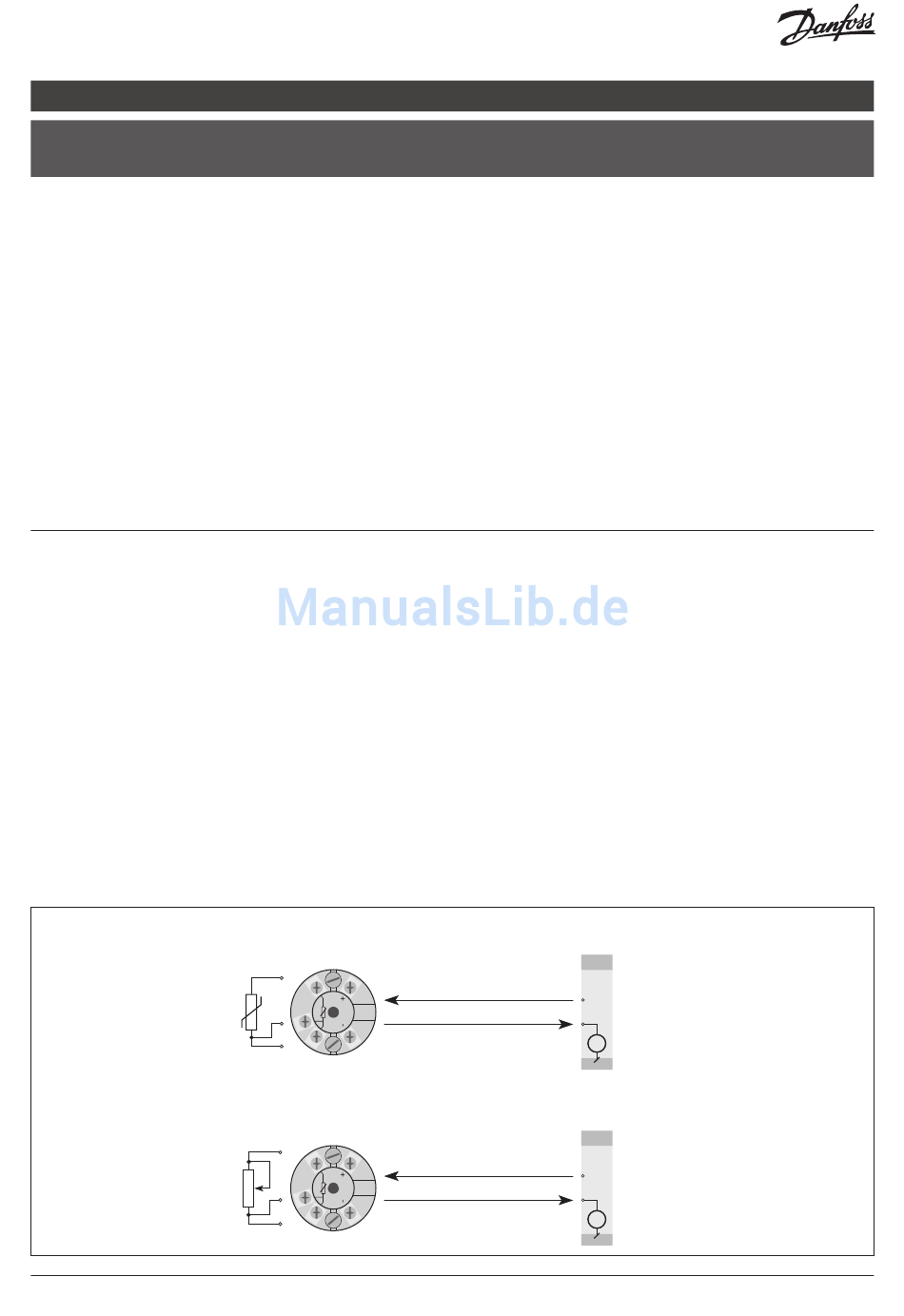

APPLICATIONS

© Danfoss | DCS (im) | 2017.07
ENGLISH
2-WIRE PROGRAMMABLE TRANSMITTER
MBT 9110 - 084Z7441
RTD to 4 - 20 mA
Resistance to 4 - 20 mA
2-wire installation
in control room
V+
mA
2-wire installation
in control room
V+
mA
IC.PS.P40.A4.ML | 520B7737 | 3
