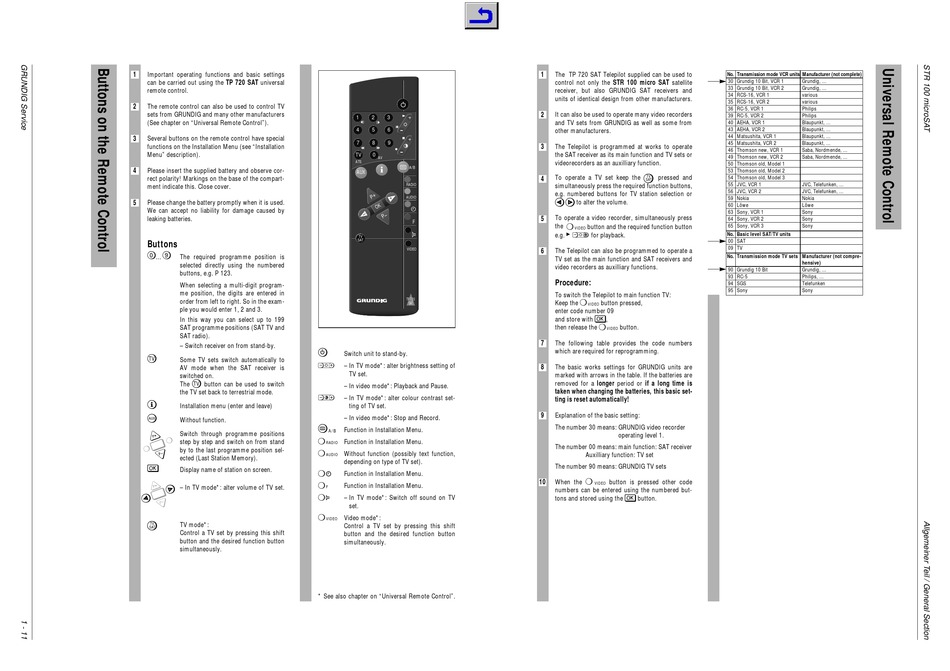

Important operating functions and basic settings
1
can be carried out using the TP 720 SAT universal
remote control.
The remote control can also be used to control TV
2
sets from GRUNDIG and many other manufacturers
(See chapter on "Universal Remote Control").
Several buttons on the remote control have special
3
functions on the Installation Menu (see "Installation
Menu" description).
Please insert the supplied battery and observe cor-
4
rect polarity! Markings on the base of the compart-
ment indicate this. Close cover.
5
Please change the battery promptly when it is used.
We can accept no liability for damage caused by
leaking batteries.
Buttons
0
9
...
The required programme position is
selected directly using the numbered
buttons, e.g. P 123.
When selecting a multi-digit program-
me position, the digits are entered in
order from left to right. So in the exam-
ple you would enter 1, 2 and 3.
In this way you can select up to 199
SAT programme positions (SAT TV and
SAT radio).
– Switch receiver on from stand-by.
¢
T V
Some TV sets switch automatically to
AV mode when the SAT receiver is
switched on.
¢
The
T V
button can be used to switch
the TV set back to terrestrial mode.
.
Installation menu (enter and leave)
-
Without function.
Switch through programme positions
step by step and switch on from stand
by to the last programme position sel-
ected (Last Station Memory).
O
Display name of station on screen.
– In TV mode*: alter volume of TV set.
¢
TV
TV mode*:
SAT
Control a TV set by pressing this shift
button and the desired function button
simultaneously.
1
2
3
4
5
6
7
8
9
TV
0
AV
ATS
A/B
AUX
RADIO
AUDIO
F
TV
SAT
VIDEO
TP 720
SAT
b
Switch unit to stand-by.
®
– In TV mode*: alter brightness setting of
TV set.
– In video mode*: Playback and Pause.
™
– In TV mode*: alter colour contrast set-
ting of TV set.
– In video mode*: Stop and Record.
,
Function in Installation Menu.
A /B
¢
Function in Installation Menu.
RADIO
¢
Without function (possibly text function,
AUDIO
depending on type of TV set).
¢
Function in Installation Menu.
¢
Function in Installation Menu.
F
¢
– In TV mode*: Switch off sound on TV
set.
¢
Video mode*:
VIDEO
Control a TV set by pressing this shift
button and the desired function button
simultaneously.
* See also chapter on "Universal Remote Control".
The TP 720 SAT Telepilot supplied can be used to
1
control not only the STR 100 micro SAT satellite
receiver, but also GRUNDIG SAT receivers and
units of identical design from other manufacturers.
2
It can also be used to operate many video recorders
and TV sets from GRUNDIG as well as some from
other manufacturers.
3
The Telepilot is programmed at works to operate
the SAT receiver as its main function and TV sets or
videorecorders as an auxilliary function.
¢
TV
To operate a TV set keep the
pressed and
4
SAT
simultaneously press the required function buttons,
e.g. numbered buttons for TV station selection or
xc
to alter the volume.
To operate a video recorder, simultaneously press
5
the
¢
button and the required function button
VIDEO
•
®
e.g.
for playback.
6
The Telepilot can also be programmed to operate a
TV set as the main function and SAT receivers and
video recorders as auxilliary functions.
Procedure:
To switch the Telepilot to main function TV:
¢
Keep the
button pressed,
VIDEO
enter code number 09
O
and store with
,
¢
then release the
button.
VIDEO
7
The following table provides the code numbers
which are required for reprogramming.
8
The basic works settings for GRUNDIG units are
marked with arrows in the table. If the batteries are
removed for a longer period or if a long time is
taken when changing the batteries, this basic set-
ting is reset automatically!
9
Explanation of the basic setting:
The number 30 means: GRUNDIG video recorder
operating level 1.
The number 00 means: main function: SAT receiver
Auxilliary function: TV set
The number 90 means: GRUNDIG TV sets
¢
10
When the
button is pressed other code
VIDEO
numbers can be entered using the numbered but-
O
tons and stored using the
button.
No. Transmission mode VCR units Manufacturer (not complete)
30 Grundig 10 Bit, VCR 1
Grundig, ...
33 Grundig 10 Bit, VCR 2
Grundig, ...
34 RCS-16, VCR 1
various
35 RCS-16, VCR 2
various
36 RC-5, VCR 1
Philips
39 RC-5, VCR 2
Philips
40 AEHA, VCR 1
Blaupunkt, ...
43 AEHA, VCR 2
Blaupunkt, ...
44 Matsushita, VCR 1
Blaupunkt, ...
45 Matsushita, VCR 2
Blaupunkt, ...
46 Thomson new, VCR 1
Saba, Nordmende, ...
49 Thomson new, VCR 2
Saba, Nordmende, ...
50 Thomson old, Model 1
53 Thomson old, Model 2
54 Thomson old, Model 3
55 JVC, VCR 1
JVC, Telefunken, ...
56 JVC, VCR 2
JVC, Telefunken, ...
59 Nokia
Nokia
60 Löwe
Löwe
63 Sony, VCR 1
Sony
64 Sony, VCR 2
Sony
65 Sony, VCR 3
Sony
No. Basic level SAT/TV units
00 SAT
09 TV
No. Transmission mode TV sets Manufacturer (not compre-
hensive)
90 Grundig 10 Bit
Grundig, ...
93 RC-5
Philips, ...
94 SGS
Telefunken
95 Sony
Sony
