Operating Instructions STR 100 microSAT
Note:
This chapter contains excerpts from the operating instructions. For further particulars please refer to the
appropriate user instructions the part number of which is indicated in the relevant spare parts list.
Contact Allocation of the EURO-AV
Sockets
If you want to connect additional units (e. g. video
recorder, decoder) to your SAT receiver, your spe-
cialist dealer will be able to create a standard
connection using the following connection table:
Pin
Signal
TV Decoder V C R
1 = Audio output right
x
x
x
2 = Audio input right
x
x
3 = Audio output left
x
x
x
4 = Audio earth
x
x
x
5 = Blue earth
x
x
6 = Audio input left
x
x
7 = RGB blue
A
E
8 = Switching voltage
A
E
E
9 = Green earth
x
x
10 = –
11 = RGB green
A
E
12 = –
13 = Red earth
x
x
14 = Earth
x
x
x
15 = RGB red
A
E
16 = RGB switching voltage
A
E
17 = Video earth
x
x
x
18 = RGB switching voltage earth x
x
19 = Video output
x
x
1)
x
20 = Video input
x
x
21 = Screen/earth
x
x
x
20
2
21
19
1
1) Allocatable per station with base band (see chapter Decoder and
nor 1 ... 3).
A = output
E = input

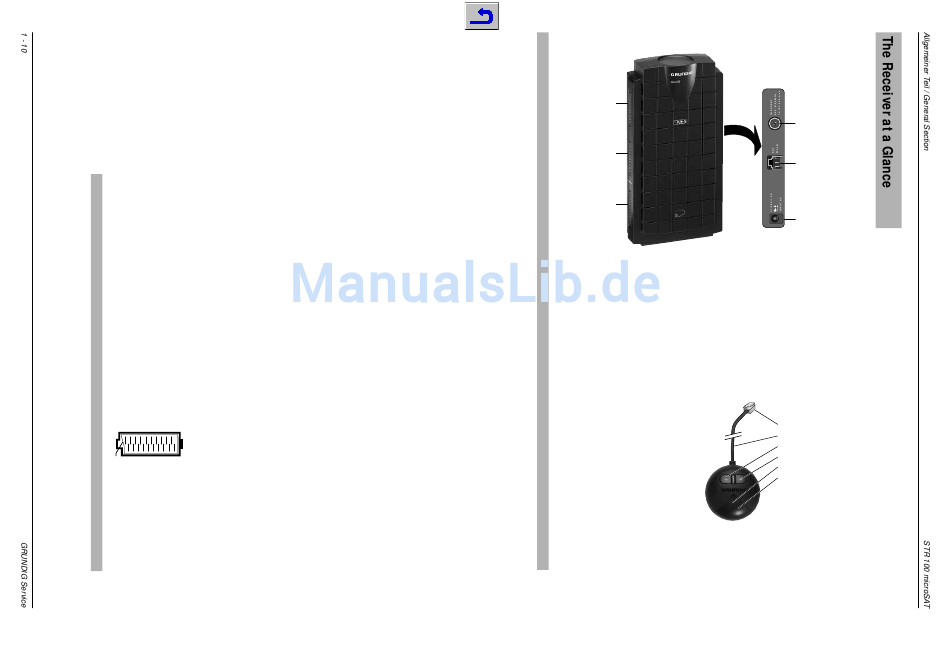

The SAT Receiver
SCART-
EURO-AV-
connections
VCR
V C
R
DECODER
D E
C
T V
TV
A plug-in adapter is supplied for 230 V voltage sup-
ply. The unit is only disconnected from the mains
when the 230 V plug is removed!
EURO-AV Connections
VCR
EURO-AV socket (input/output) for a video
recorder or further PAL decoder.
DEC
EURO-AV
socket
(input/output)
for
PAL/MAC decoders or a second video
recorder.
TV
EURO-AV socket (output only) for TV set,
with RGB transfer from the decoder
socket.
The SAT Mouse
The SAT Mouse receives the infrared signals from
the remote control and sends commands onto the
receiver via the cable. Therefore mount the SAT
Mouse somewhere where there are no obstacles
between it and the remote control. You can switch
the programme positions with the SAT Mouse but-
tons. The red operation indicator extinguishes in
stand-by mode.
SAT-aerial
SAT-mouse
Voltage supply
11 ... 26 V DC
8-pole western plug
2 m cable
Switch programme position downwards.
Switch programme position upwards.
Operation indicator
Infrared receiver
