Select the view mode (press encoder when on Mode, and change it to the desired setting and press the
encoder again).
Next scroll to the DMX port and press the encoder to view it.
When viewing, use the encoder to change the start channel or press it to go back.
Quick Setup
Select mode
In select mode:
Encoder +/- select different item
Press Encoder goto Edit mode
In Edit mode:
Encoder +/- change the value of the item
Press Encoder goto Select mode
In the quick setup you can set first the port type to either disabled/input/output.
Next set the Art-Net universe of the first port.
The Rate option can be used to set it to either
Sync, the DMX output is synchronized to the universe data on the network. This is the
fastest (lowest latency) setting. Note some equipment might not work with it nicely.
Fixed rate (40fps/33fps/25fps/20fps), use this setting if the sync mode doesn't work
The Hold option, by default to DMX port will send it's last value for always when it doesn't get new data
from the network. This setting can be changed to timeout.

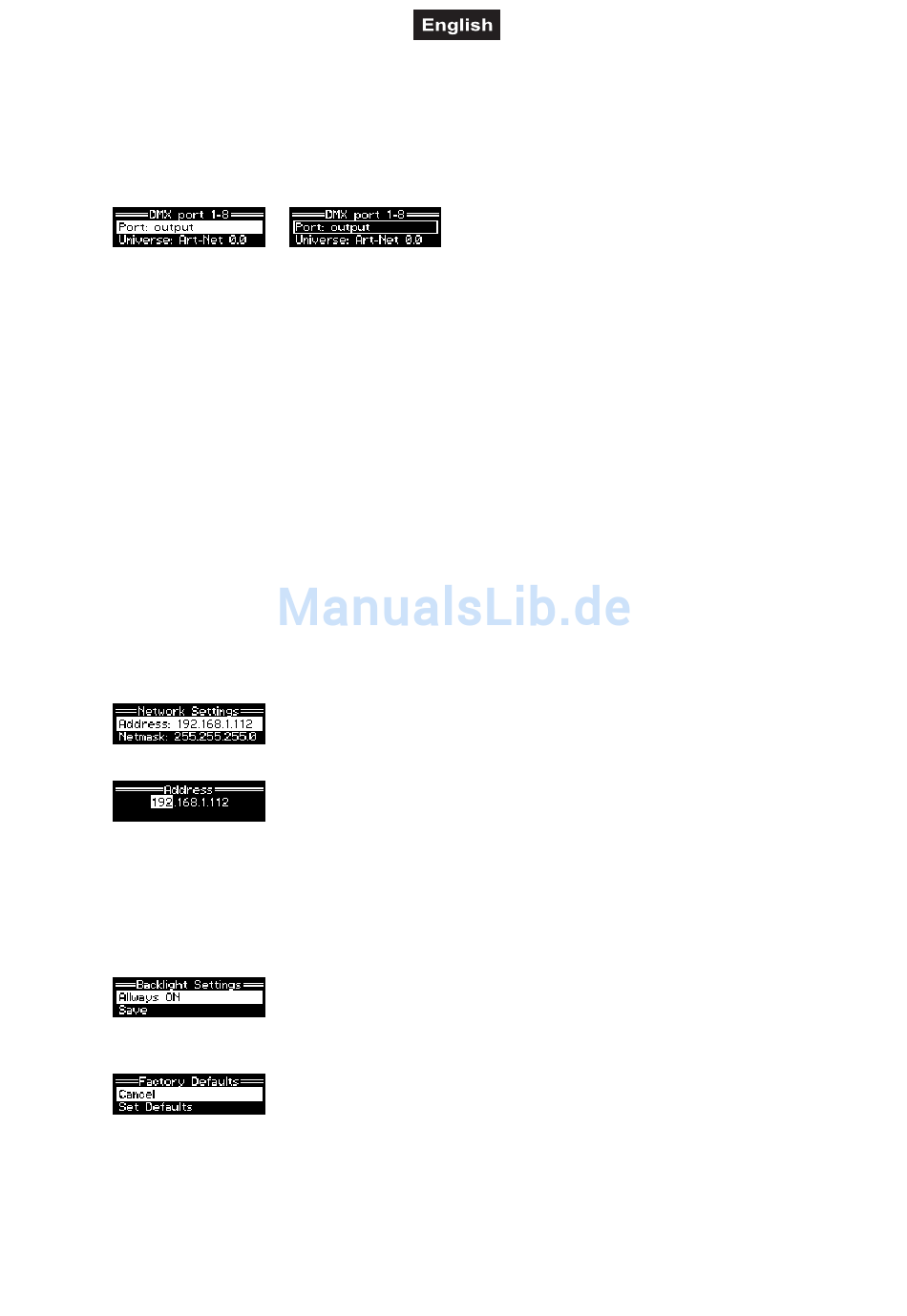

DMX port menu
Same menu handling as Quick Setup, except for one port at a time.
Network Options
Select the Address and press the encoder to change the Ip Address
Next set the netmask to Ethernet 255.0.0.0 / 255.255.0.0 / 255.255.255.0
or select Set to Default
Note For normal Art-Net operation, the netmask should be 255.0.0.0 and the ip address between 2.0.0.1 and
2.254.254.254.
Backlight
The backlight can be set to be on always or timeout
Factory Default
Set to unit back to it's default values
Edit mode
(use the edit/select mode to change it)
