Heli-Professional REVOLUTION 500E RTF Handbuch Seite 10

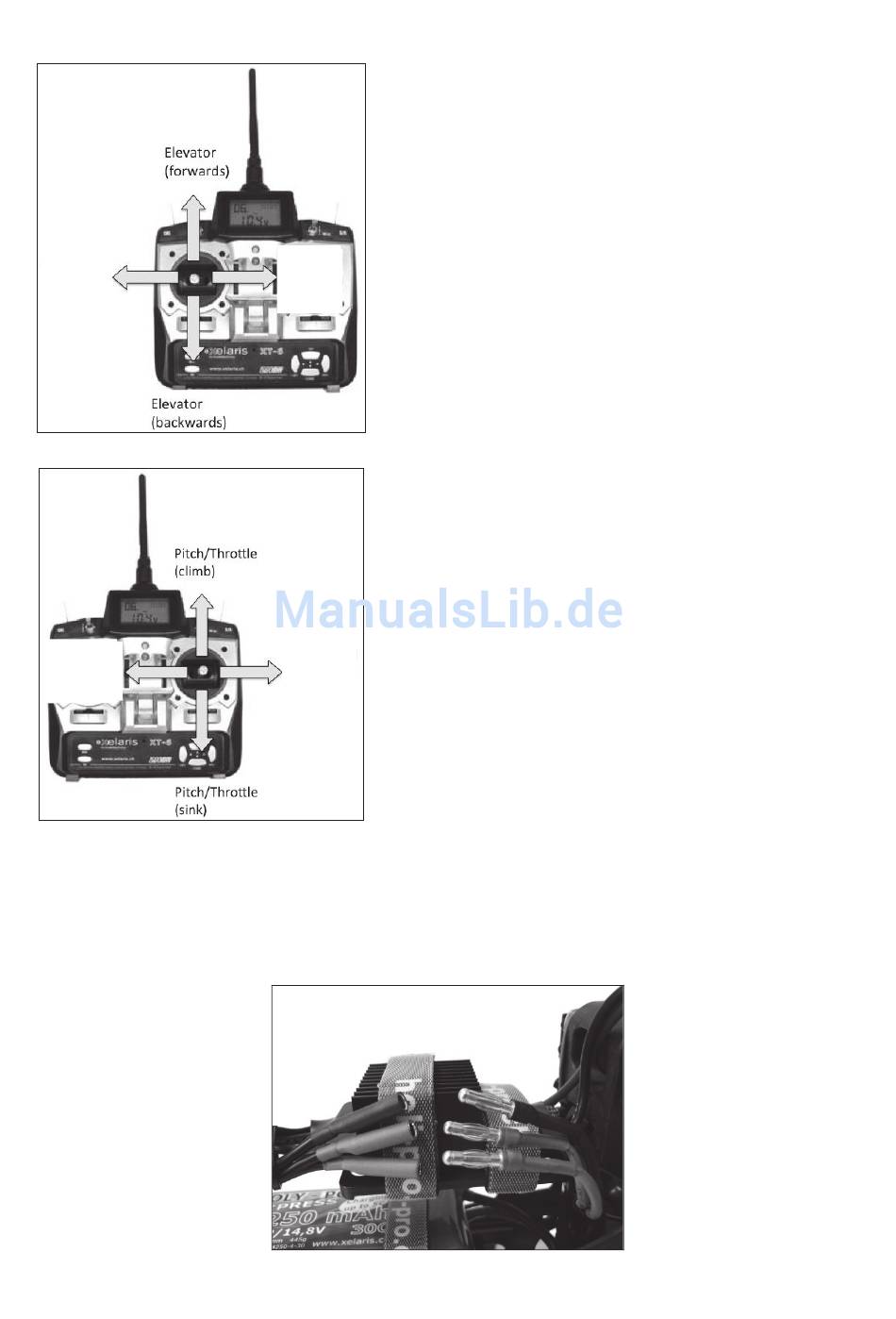

Mode 1:
Rudder
(left)
Aileron /
Roll
(left)
The following control test is explained on the basis of mode 2! If you use mode 1, the control commands change
accordingly.
Place the helicopter on a flat surface and position yourself in a way that you can look at the model from all angles.
1. It is absolutely necessary to disconnect the plugs between motor and ESC.
www.heli-professional.com
The left stick controls the swash plate movements, i.e. elevator
(forwards/backwards) and aileron/roll (left/right).
Rudder
(right)
The right stick controls collective pitch/throttle (climb/sink) and
rudder/tail rotor pitch (left/right).
Aileron /
Roll
(left)
10
