Page 4

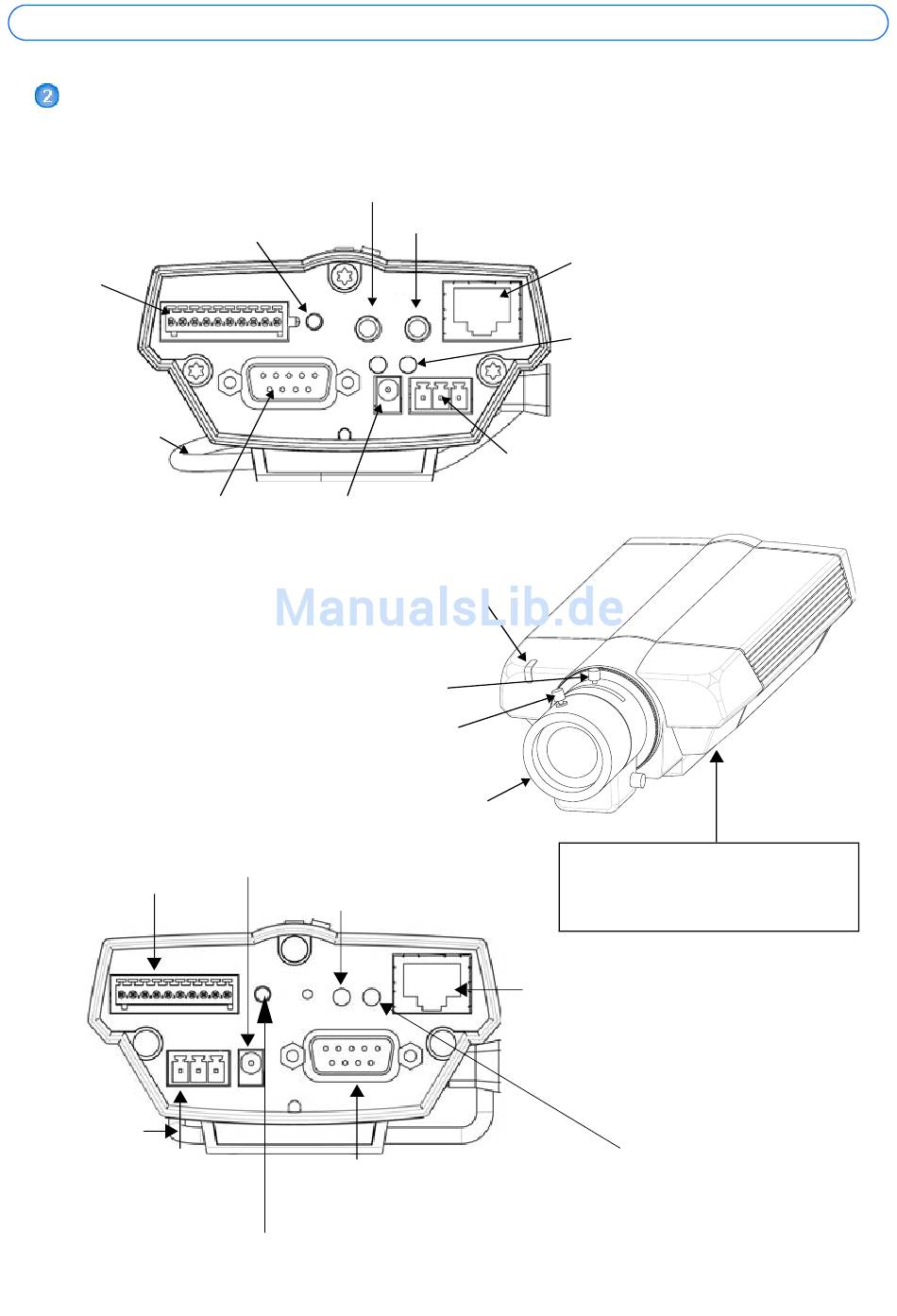

Hardware overview

AXIS 223M - Rear view
10-pin I/O
terminal
connector
DC-Iris
control cable
RS-232
connector
AXIS 221 - Rear view
PS-K power adapter
connector
10-pin I/O terminal
connector
DC-Iris
control cable
Power
connector
block
Audio out
Reset/Control
button
PS-K
power adapter
connector
Zoom puller
(Tele/wide)
Focus puller
Power indicator
RS-232
connector
Reset/Control
button
AXIS 221/223M Installation Guide
Audio in
(also PoE) (also PoE)
Power connector
block
Status
indicator
DC-Iris
Product ID & Serial number (S/N).
The serial number may be
required during the installation.
Network
connector
(also PoE)
Network indicator
Dimensions
HxWxD = 49 x 88 x 200mm (1.9" x 3.5" x 7.9")
Weight = 620g (21.9oz) (power supply not included)
Network Network
connector connector
Power and network indicators
AXIS 221/223M

Front view
