Adjust the image and focus
To adjust the position of the lens:
1. Open the Live View page in your web browser.
2. Check the image in the Live View page, and move the lens to the desired position.
To focus the AXIS 221/223M:
1. From the Basic Configuration page in the setup tools, open the Focus adjustment page.
2. Set the DC-Iris to Disabled and click Save.
3. Unscrew the zoom puller on the lens by turning it anti-clockwise. Adjust the zoom
setting as required.
4. Re-tighten the zoom puller.
5. Unscrew the focus puller on the lens. Adjust the focus as required. Re-tighten the focus
puller.
6. From the Focus
adjustment page, set the
DC-Iris to Enabled and
click Save.
Note:
The DC-Iris should always
be disabled while focusing
the camera. This opens the
iris to its maximum, which
gives the smallest depth of
field and thus the best
conditions for correct focusing. When the focus is set with this method it will then be
maintained in any light conditions.
AXIS 221/223M Installation Guide

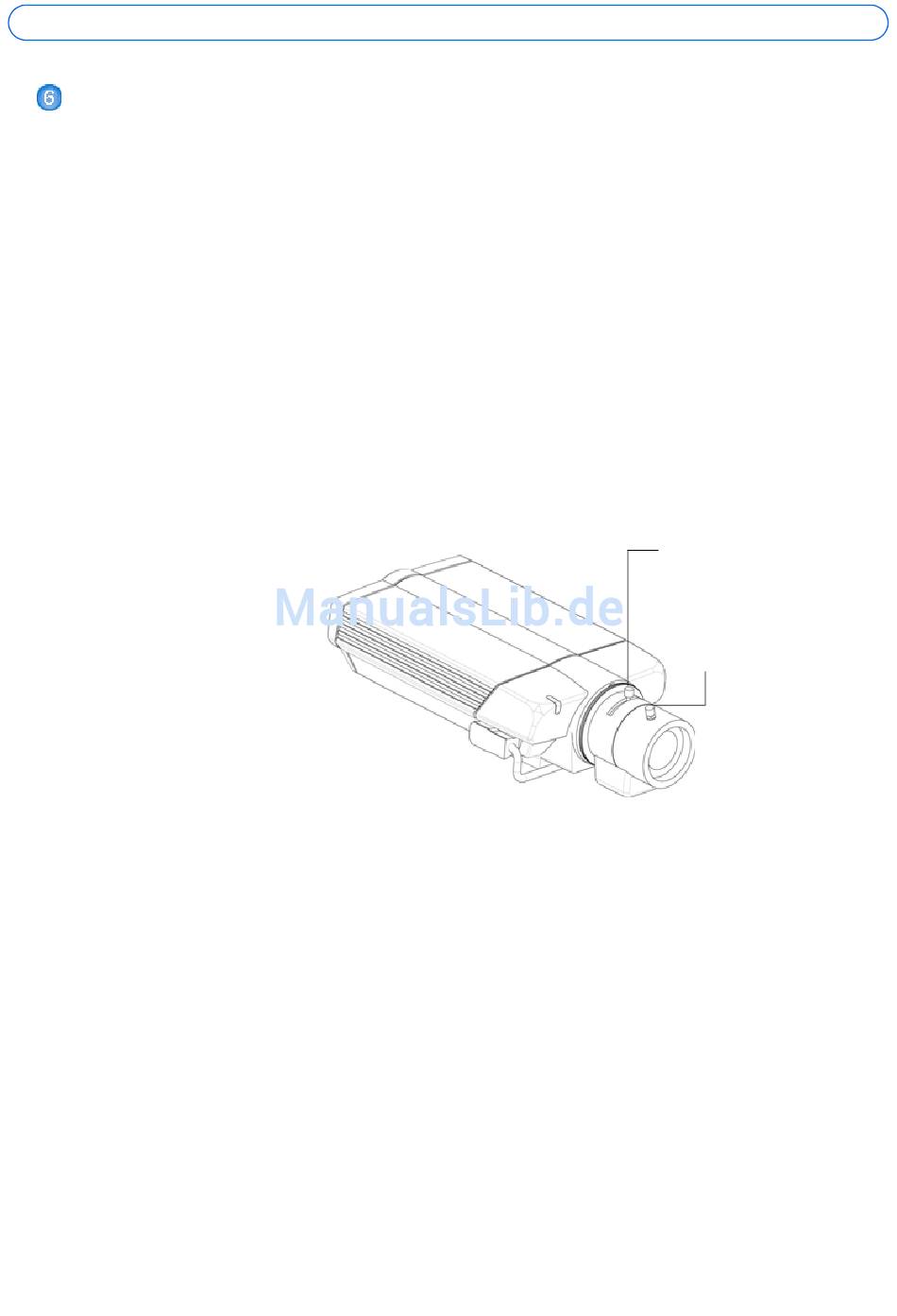

Zoom puller
(Tele/wide)
Focus puller
