Operating instructions
LED outdoor spotlight with motion detector "Cadiz", 1 W
Item no. 1435591
Intended use
The product is intended to provide outdoor lighting. The built-in PIR sensor responds to temperature changes
within the detection range (e.g., if a person enters the detection range) and activates the LED outdoor spot-
light for a preset duration of time.
The operation of the product requires 3 batteries of the type AA/Mignon (not included, can be ordered sepa-
rately).
For safety and approval reasons, you may not convert and/or alter the product. If you use the product for
purposes other than those described above, the product may be damaged. Furthermore, improper use may
cause risks such as short-circuits, fire, etc. Please read the operating instructions carefully and do not dis-
card them. If you pass the product on to a third party, please hand over these operating instructions as well.
This product complies with the applicable National and European legal requirements. All names of compa-
nies and products are the trademarks of the respective owners. All rights reserved.
Package contents
• LED outdoor spotlight
• 2x screws
• 2x dowels
• Operating instructions
Up-to-date operating instructions
Download the latest operating instructions via the link www.conrad.com/downloads or scan the QR code.
Follow the instructions on the website.
Explanation of symbols
The lightning symbol inside of a triangle is used when there is a potential risk of personal injury,
such as electric shock.
An exclamation mark in a triangle indicates important instructions in this operating manual which
absolutely have to be observed.
The arrow symbol is used to indicate where specific tips and information on handling should be
given.
Observe the operating instructions!
Safety Instructions
Please read the operating instructions carefully and pay particular attention to the safety
instructions. We do not assume liability for injuries/material damages resulting from fail-
ure to observe the safety instructions and the information in these operating instructions
regarding the proper handling of the product. Furthermore, in such cases, the warranty/
guarantee will be null and void.
a) General
• The product is not a toy. Keep out of the reach of children and pets.
• Do not leave packaging material lying around carelessly. It may become a dangerous play-
thing for children.
• The product is only intended for installation and use in outdoor areas. However, it must not be
used in or under water, as this will destroy it.
• Only use the product when it is securely installed and steady. Never install or use the product
on or inside vehicles.
Furthermore, pay attention to the correct mounting position; the PIR sensor must point down-
wards (see chapter "Preparation for the Mounting").
• Attention, LED light:
Do not look directly into the LED light!
Do not look directly or with optical instruments into the light!
• Protect the product from extreme temperatures, direct sunlight, strong vibrations and com-
bustible gases, vapours and solvents. Keep the product away from strong magnetic fields
generated by machines, electric motors or loudspeakers.
• Never expose the product to mechanical stress.
• If safe operation is no longer possible, take the device out of service and secure it against
unintended use. Safe operation is no longer possible, if the product:
- has visible damage,
- no longer functions properly,
- has been stored under adverse ambient conditions for an extended period of time or
- has been exposed to considerable strain during transport.
• Please handle the product carefully. The product can be damaged if crushed, struck or
dropped, even from a low height.
• If you have doubts about how the product should be operated or how to safely connect it,
consult a trained technician.
• Maintenance, adjustment and repair work may be carried out only by an expert or a specialist
workshop.
• If you have any questions that are not answered in these operating instructions, please con-
tact our technical customer service or another specialist.
b) Batteries/rechargeable batteries
• Please observe the correct polarity when placing batteries/rechargeable batteries into the unit.
• If you are not going to use the device for a while, remove the batteries/rechargeable batteries
to prevent damage from leaking. Leaking or damaged batteries/rechargeable batteries can
cause acid burns upon contact with the skin. Thus, you should wear protective gloves when
handling damaged batteries/rechargeable batteries.
• Keep the batteries/rechargeable batteries out of the reach of children. Do not leave batteries
lying around, as they may be swallowed by children or pets.
• Replace all the batteries/rechargeable batteries at the same time. Mixing old and new batter-
ies/rechargeable batteries or mixing different batteries/rechargeable batteries in the device
may lead to battery leaks and will thus damage the device.
• Do not dismantle batteries/rechargeable batteries, do not short-circuit them and do not throw
them into fire. Never charge conventional, non-rechargeable batteries. There is a danger of
explosion!
PIR sensor function
The PIR sensor integrated in the exterior floodlight responds to temperature changes within the detection
range, e.g., if a person or an animal, with a temperature different from the background, enters the detection
range.
The range for detecting motion is determined by several factors:
• Mounting position (height)
• The temperature difference between the moving object and the background (ambient)
• The size of the object
• The distance of the object from the PIR sensor
• Direction and speed of the movement
• Ambient temperature (summer/winter)
The horizontal detection angle of the PIR-Sensor is 130°, the vertical detection angle 60°. The range de-
pends on the above mentioned factors and is approx. 8 m.
Due to the operating principle applied, the detection of changes in temperature through glass is not possible.
Thus consider selecting an appropriate mounting site.
Do not point the PIR sensor towards reflective surfaces (windows, water, or similar) or towards moving
objects (such as a street with passing vehicles) either in order to avoid false alarms. Also do not point the
PIR sensor's detection range towards sources or other lamps.
The recommended mounting height is 1.8 to 2.5 m; however, this will depend on local conditions.
The detection range can be altered by turning the PIR sensor. You can also attach an opaque cover (such
as a piece of electrical tape) on the PIR sensor's diffuser lens in order to restrict the range of detection.
To ensure the best motion detection, you should install the LED outdoor spotlight in a way that the object
to be detected is not approaching the PIR sensor, but rather passing the detection area from left to right or
vice versa.
Preparation for the Mounting
Please observe the chapter "Safety Instructions"!
It is important to pay attention to the correct mounting position of the LED outdoor spotlight;
install it only with the PIR sensor positioned on the bottom side. The arrow marking on the
mounting plate must point upwards in a vertically direction.
Install the LED outdoor spotlight only on a firm base, e.g., masonry. Use screws and, if neces-
sary, screw anchors that are suitable for the surface.
The LED outdoor spotlight must be installed so that it is out of the reach of children.
Select the mounting height depending on the on-site conditions.

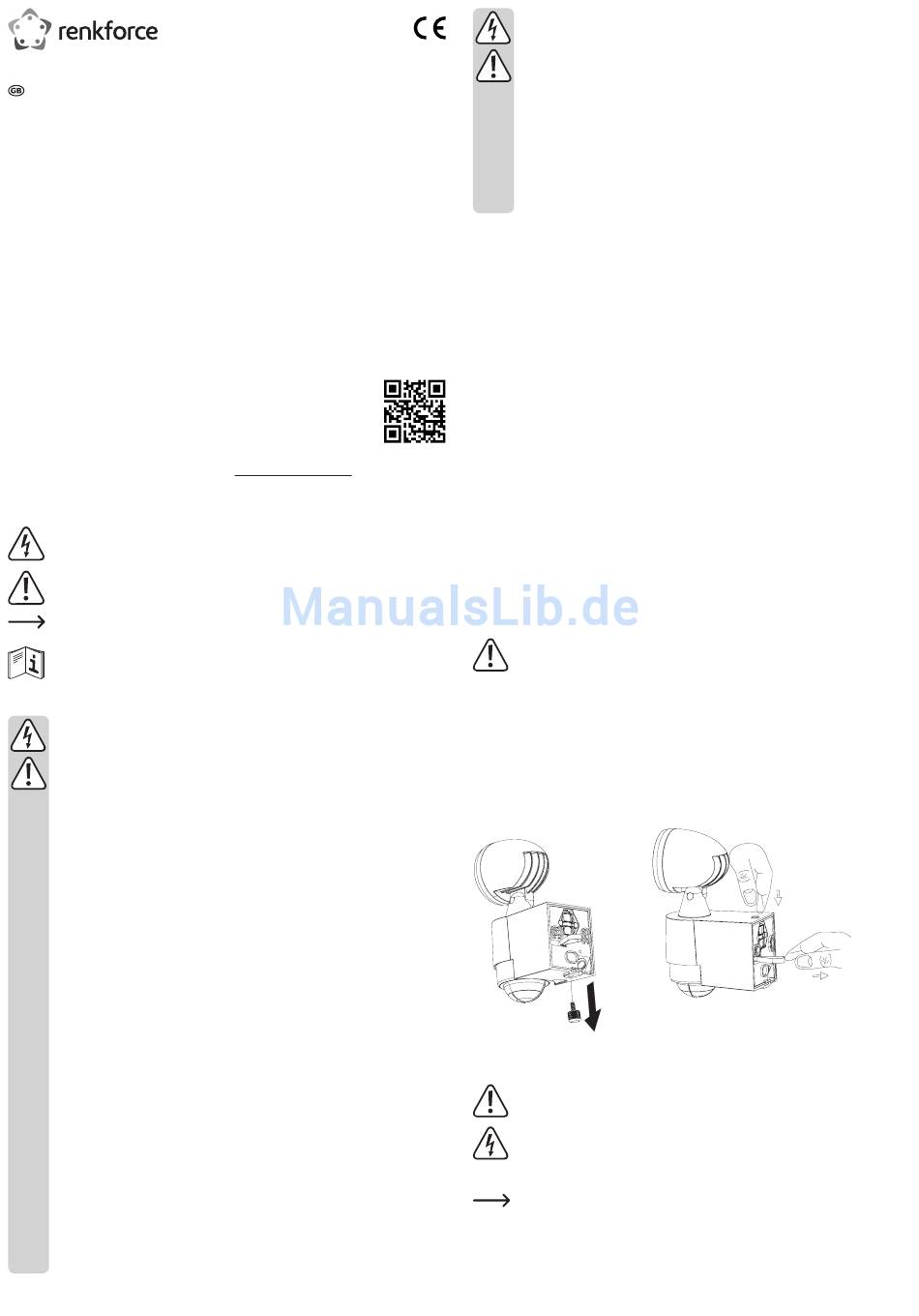

Mounting, installing batteries, starting operation
• Undo first the single screw on the bottom (A).
• After that keep the locking knob pressed (B) and pull out the wall holder by means of the strap (C).
• Attach the wall holder with four suitable screws and, if necessary, wall plugs to the wall (distance between
the holes is approx 39.5 mm). The textile strap should be placed behind the wall mount here (do not cut!).
Pay attention to the correct mounting position of the wall holder! An arrow mark inside and
outside on the wall bracket must point vertically upwards.
Pay attention when drilling and tightening the screws that no cables or pipes are damaged.
• Insert three type AA/Mignon batteries with the correct polarity into the battery holder inside the LED out-
door spotlight.
Take care that the textile strap in the battery holder is under the batteries. During a battery
change, the batteries are easily removed from the battery holder with the textile strap.
A battery chance is necessary when the brightness of the LED outdoor spotlight is considerably reduced.
Then change the batteries quickly, because the empty batteries can leak and damage the product, resulting
in loss of guarantee/warranty!
