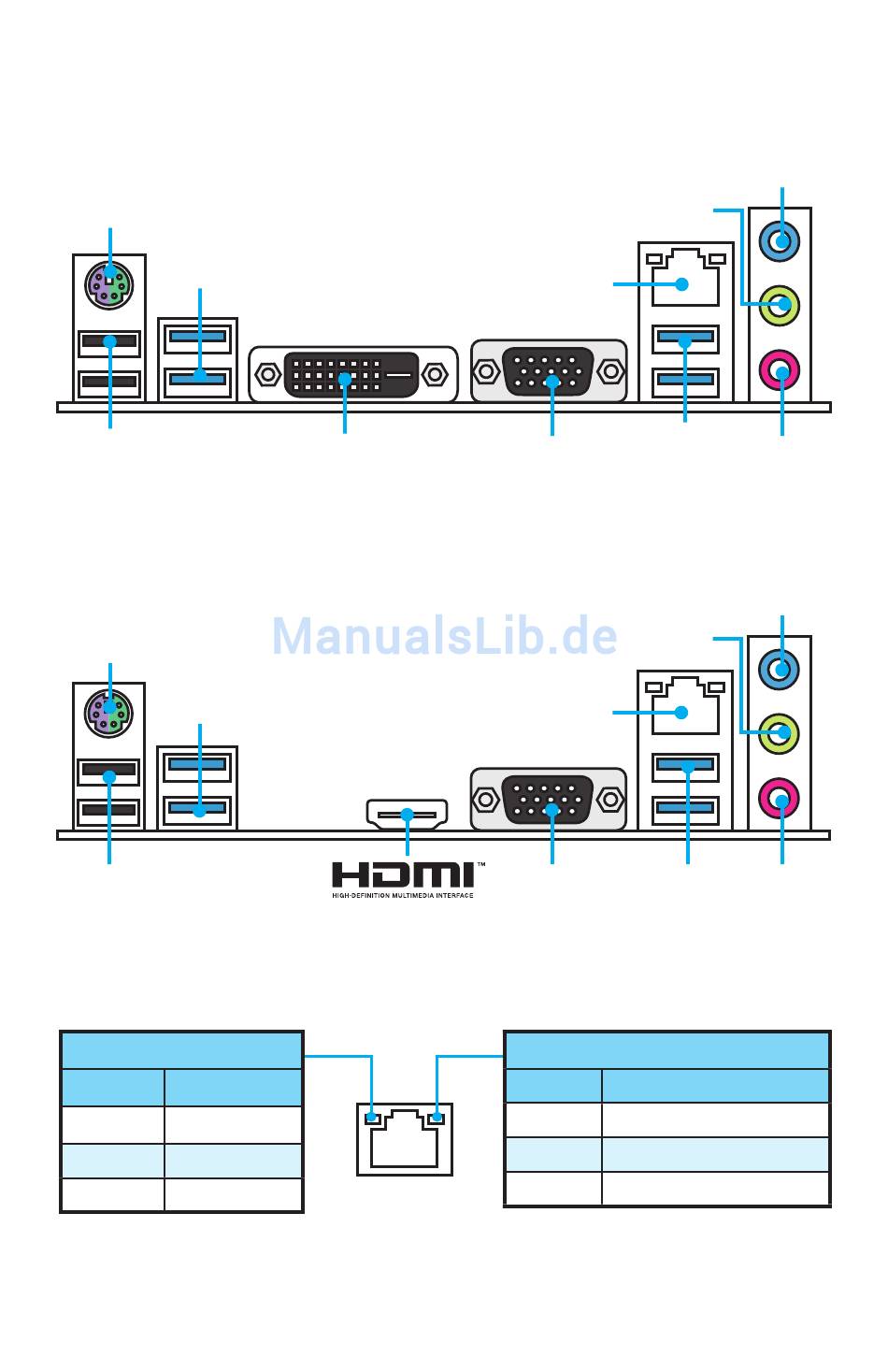

Rear I/O Panel

H170M PRO-VD/ B150M PRO-VD/ B150M-ICAFE/ B150M PRO-D
PS/2
USB 3.1 Gen1
USB 2.0
B150M PRO-VH
PS/2
USB 3.1 Gen1
USB 2.0

LAN Port LED Status Table

Link/ Activity LED
Status Description
Off No link
Yellow Linked
Blinking Data activity
6
Rear I/O Panel
DVI-D
(H170M PRO-VD/
B150M PRO-VD/
B150M-ICAFE)
Line-out
LAN
USB 3.1 Gen1
VGA
Line-out
LAN
VGA
USB 3.1 Gen1
Speed LED
Status Description
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
Line-in
Mic in
Line-in
Mic in
