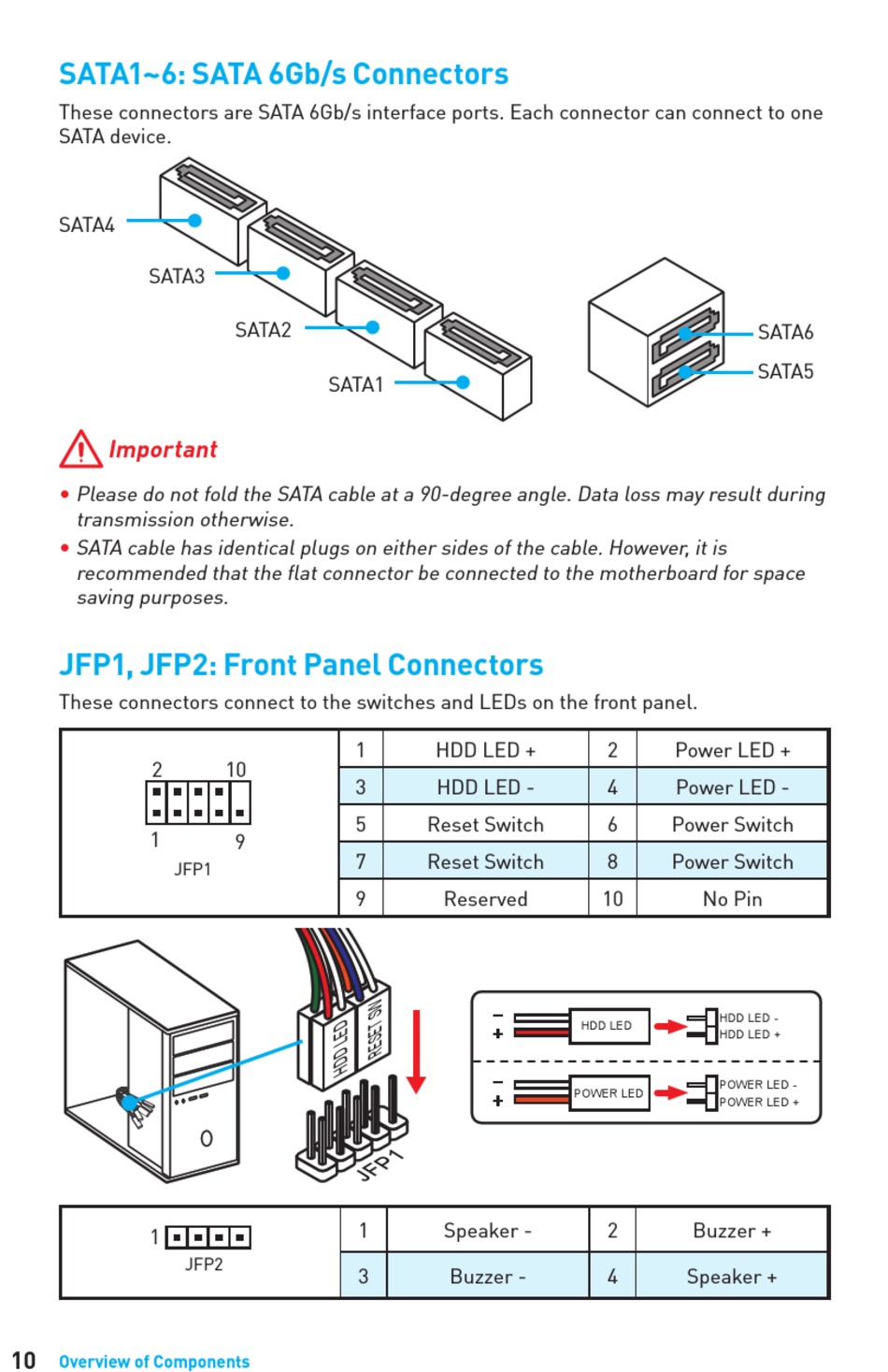

SATA1~6: SATA 6Gb/s Connectors

These connectors are SATA 6Gb/s interface ports. Each connector can connect to one
SATA device.
SATA4
SATA3
Important
Please do not fold the SATA cable at a 90-degree angle. Data loss may result during
y
transmission otherwise.
SATA cable has identical plugs on either sides of the cable. However, it is
y
recommended that the flat connector be connected to the motherboard for space
saving purposes.

JFP1, JFP2: Front Panel Connectors

These connectors connect to the switches and LEDs on the front panel.
2
1
JFP1
1
10
Overview of Components
SATA2
SATA1
10
9
JFP2
1 HDD LED +
3 HDD LED -
5 Reset Switch
7 Reset Switch
9 Reserved
1 Speaker -
3 Buzzer -
2 Power LED +
4 Power LED -
6 Power Switch
8 Power Switch
10 No Pin
HDD LED -
HDD LED
HDD LED +
POWER LED -
POWER LED
POWER LED +
2 Buzzer +
4 Speaker +
SATA6
SATA5
