Project planning information

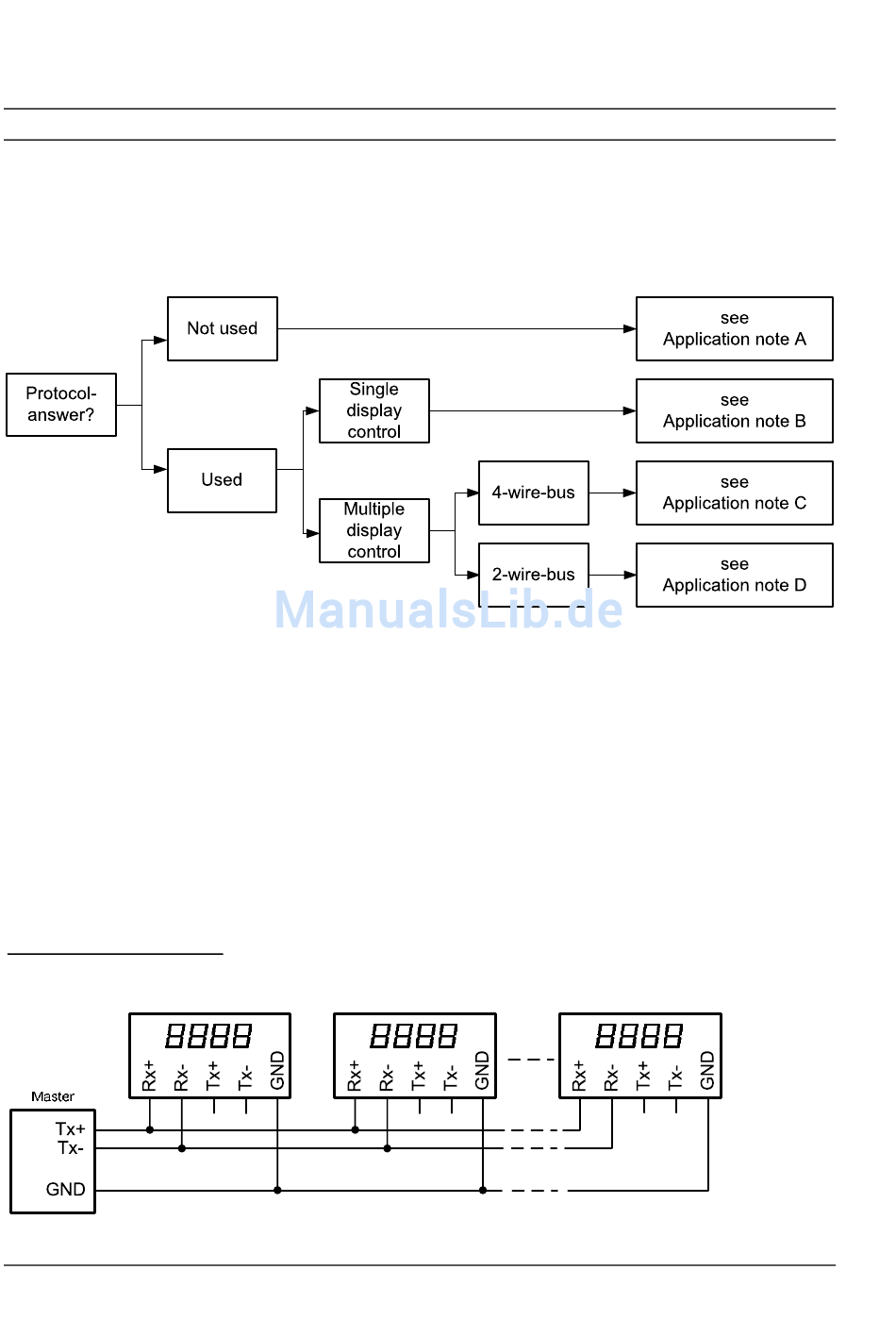

This project planning information applies to the interface format RS485.
In interface format RS485, you can select settings 485, 4-4 and 4-2 in the menu
item 1. The selected setting depends on whether the protocol reply is to be sent by
the display:
If the display should not send a protocol reply (normal case), application example A
applies for activating one or more displays.
If a protocol reply is expected, a differentiation has to be made whether one single
unit or more units are to be activated. If one single unit is activated, application
example B is valid.
If several units are to be activated, a bus wiring is necessary. You have to
differentiate, if a 4-wire bus (full-duplex) or a 2-wire bus (half-duplex) is used.
Application example C applies for 4-wire bus and application example D applies for
2-wire bus.
Application example A
34
Setting in menu item 1: RS485
Setting in menu item 6: No protocol reply
BAL S202 SER M 1.0
