Renkforce RF100 Kurzanleitung Seite 4

5
• Repeat STEP 4 for second and third
points (calibration sequence and
movement path of nozzle are shown).

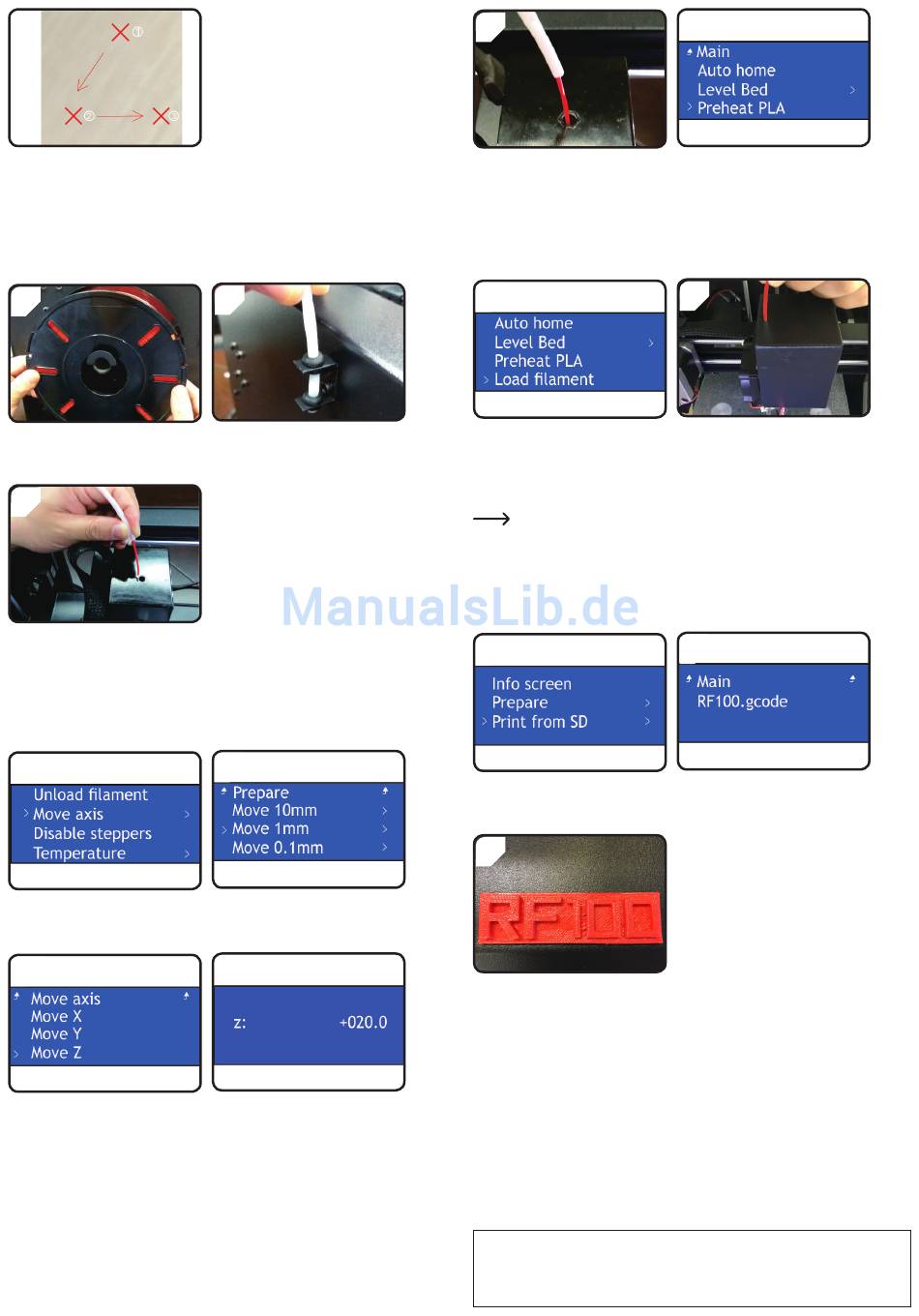

Filament setup
1
• Put the filament on the spool holder.
3
• Feed filament through tube until
approx. 5 cm are visible on the
extruder end.
Filament insert
1
• In "Prepare" menu, choose first "Auto
Home", then "Move axis".
3
• Choose "Move Z".
2
• Install filament tube into the tube
holder.
2
• Choose "Move 1mm".
4
• Turn knob anticlockwise (+20) to lower
the build bed.
5
• Put the filament into the hole of the
extruder.
7
• Once current temperature reaches
target temperature, choose "Load
Filament". Ensure the temperature of
nozzle reaches 170 °C or above before
loading filament.
If Filament movement has stopped and no filament comes out of nozzle, press
„Load filament" again. After filament loaded, the extruded filament waste can be
removed by using the tweezer.
Start to print
1
• Press the button and choose "Print
from SD".
3
• DONE.
Product features
• Max Build size 100 x 100 x 100 mm
• Able to print PLA material
• Layer resolution 0.1mm - 0.2mm
• Nozzle size 0.4mm
• Support printing from SD card & PC
• Cura software included
• Single extruder
• Print speed 30mm/s - 300mm/s
• LCD screen with control knob
This is a publication by Conrad Electronic SE, Klaus-Conrad-Str. 1, D-92240 Hirschau (www.conrad.com).
All rights including translation reserved. Reproduction by any method, e.g. photocopy, microfilming, or the capture in
electronic data processing systems require the prior written approval by the editor. Reprinting, also in part, is prohibited.
This publication represents the technical status at the time of printing.
Copyright 2016 by Conrad Electronic SE.
6
• In "Prepare" menu, choose "Preheat
PLA". Nozzle will be preheated to
default temperature 220 °C.
For protection, nozzle will be cooled
down back, if no action is taken after
5 minutes.
8
• Push slightly and control the filament
forward until filament comes out of the
noozle.
2
• Choose a model to print.
