Halogen Light Arrow HLP 8 (halogen), ref.-no. 210661
Description: The HLP 8 consists of 8 halogen high intensity lights type RS 2000 (20 watts
each), mounted on a robust aluminium frame. The master lamp contains a microproces-
sor-circuit, which controls all processes and monitors the power supply.
One important characteristic is the gentle raising of the tension (soft start) of all bulbs at
the fi rst switch-on. Lamps fi rst get low power for a short time; thereafter the normal power
is feeding the lamps for standard performance.
Advantages:
- Optimized protection of the halogen lamps (extension of the life expectancy)
- Decrease of power peaks (battery protection)
Advantages:
- Constant brightness of the incandescent bulbs
- Protection of the incandescent bulbs against over-tension
- Compensation of losses on the supply line
- Optimized usage of the accumulator capacity
- Protection of the accumulators against deep-discharging
The light output is automatically adapted according to the ambient light conditions by a
photo sensor.
The HLP 8 can easily be mounted on a vehicle.
Security advises:
Set up the HLP 8 in vertical position and direct it to the approaching traffi c. Only introdu-
ced staff is allowed to set and to implement the HLP 8.
At usage on vehicles:
Always make sure before driving that the HLP 8 is ready to use. Repairing works must not
be done in the course of an action. Do not stay in unsecured areas. Heavy accidents with
potential fatal injuries might be the consequences.
Respect the maximum speed 80 km/h when a HLP 8 is mounted on vehicle.
Start: Connect power cord and switch ON-OFF.
Maintenance and servicing:
To prevent a reduction of the light output because of dirt, the lenses have to be cleaned
with clear water and a brush. The usage of high pressure cleaners, vapour emitters or
similar equipment is inadvisable.
Change of incandescent bulbs:
Remove the lens of the corresponding RS 2000 beamer by a 90° rotation to the left and
pull the defect bulb off its socket. The re-assembly has to be made in reverse order. Only
use the incandescent bulbs12V/20W, which have been released by us.
Consideration:
Avoid touching the new bulbs directly (use a clean rag or paper). Perspiration on the glas
bodies leads to a diminution of the life expectancy as well as to a diminution of the light
effort.
6
Subject to technical alterations!

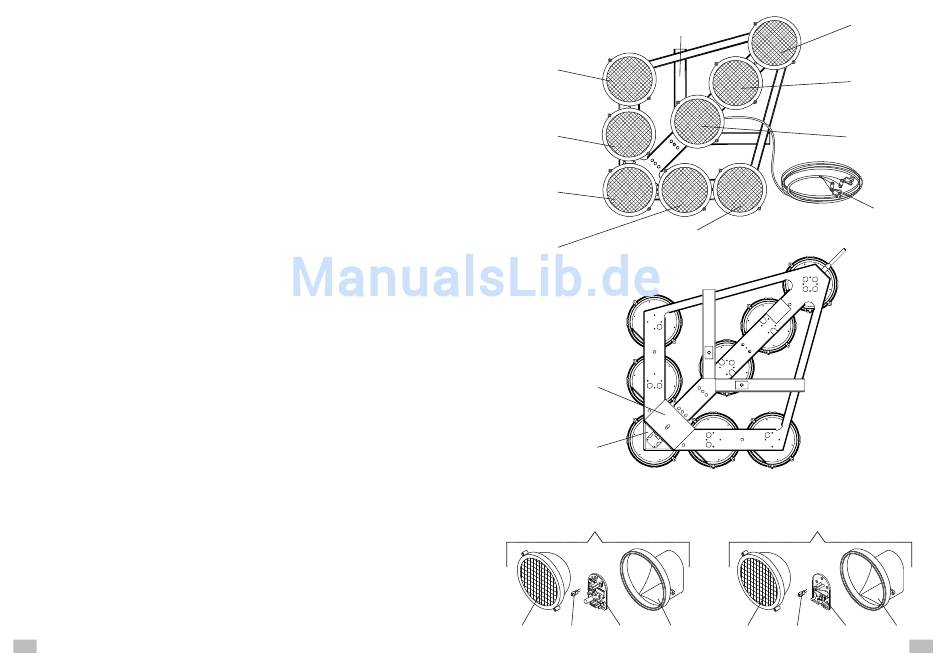

frame
Art.-No. 96224
slave lamp
( Halogen )
slave lamp
( Halogen )
slave lamp
( Halogen )
slave lamp
slave lamp ( Halogen )
( Halogen )
battery box
Art.No. 20918
mounting plate
battery
Art.Nro 84072
1 x master lamp ( halogen )
21179
92230 20100 92967 91002
Zslave lamp
( halogen )
slave lamp
( halogen )
master lamp
( halogen )
power cord
(for accumulator)
Art.No. 92937
7 x slave lamp ( halogen )
21180
92230 20100 92842 91002
