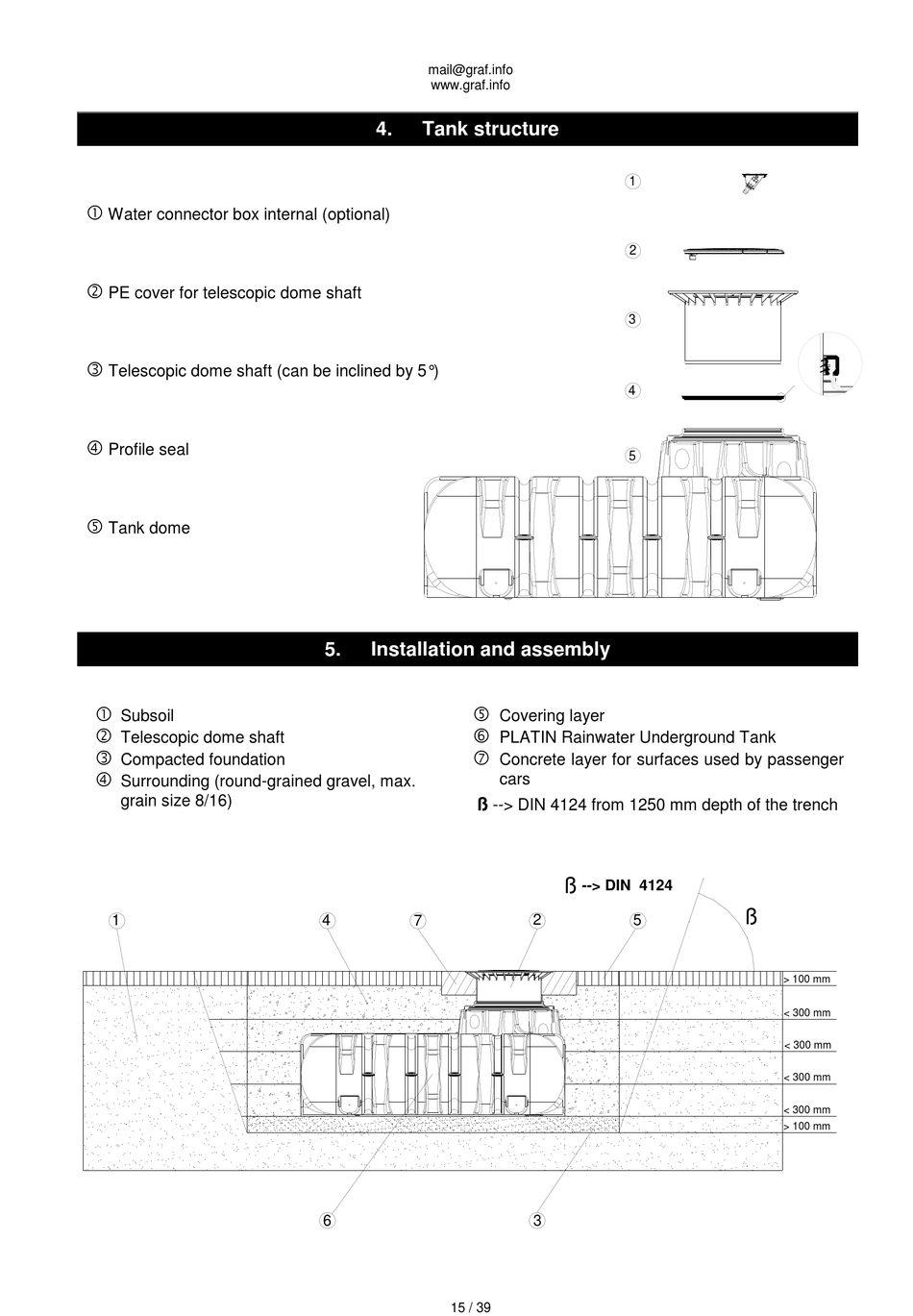

Tank Structure; Installation And Assembly - Graf PLATIN Montageanleitung


Water connector box internal (optional)

PE cover for telescopic dome shaft

Telescopic dome shaft (can be inclined by 5°)

Profile seal

Tank dome

Subsoil

Telescopic dome shaft

Compacted foundation

Surrounding (round-grained gravel, max.
grain size 8/16)
1
mail@graf.info
www.graf.info
4.

Tank structure

5.

Installation and assembly




ß
--> DIN 4124 from 1250 mm depth of the trench
4
7
6
15 / 39
1
2
3
4
5
Covering layer
PLATIN Rainwater Underground Tank
Concrete layer for surfaces used by passenger
cars
ß
--> DIN 4124
2
5
3
ß
> 100 mm
< 300 mm
< 300 mm
< 300 mm
< 300 mm
> 100 mm
