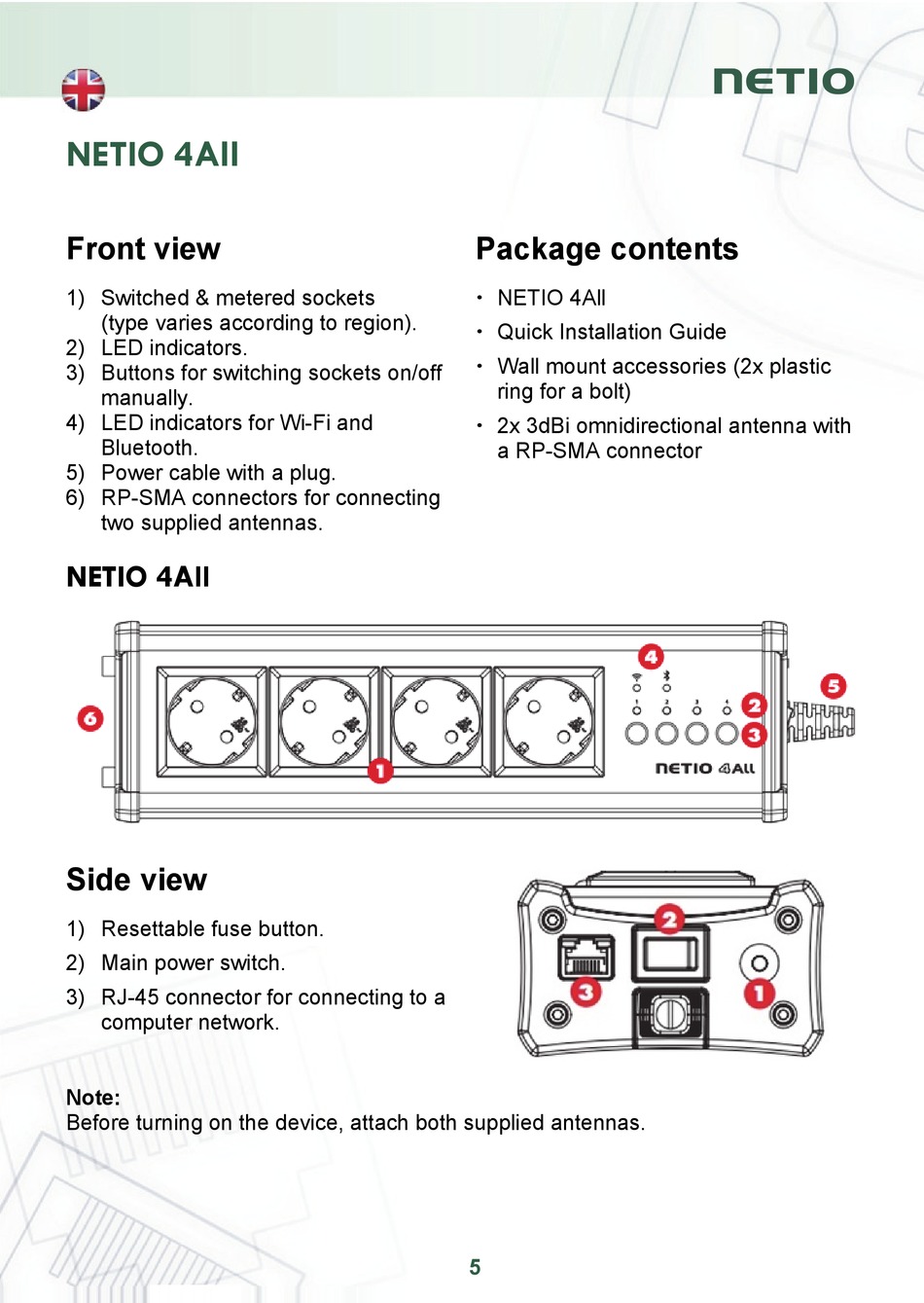

NETIO 4All
Front view
1) Switched & metered sockets
(type varies according to region).
2) LED indicators.
3) Buttons for switching sockets on/off
manually.
4) LED indicators for Wi-Fi and
Bluetooth.
5) Power cable with a plug.
6) RP-SMA connectors for connecting
two supplied antennas.
NETIO 4All
Side view
1) Resettable fuse button.
2) Main power switch.
3) RJ-45 connector for connecting to a
computer network.
Note:
Before turning on the device, attach both supplied antennas.
Package contents
 NETIO 4All
 Quick Installation Guide
 Wall mount accessories (2x plastic
ring for a bolt)
 2x 3dBi omnidirectional antenna with
a RP-SMA connector
5
