Multiplex EasyStar II Bedienungsanleitung Seite 3

! ! ! !
These operating instructions are an integral part of the
product. They contain important information and safety
notes, and should be kept in a safe place at all times. Be
sure to pass them on to the new owner if you ever dispose
of the product.
1. I
NTRODUCTION
The brushless TUNING power set for the EasyStar offers
the advanced pilot an ample amount of excess power
with a 3S LiPo battery - ideal for simple aerobatics and
windy weather.
2. C / R
ONTENTS EPLACEMENT PARTS
• 1 PERMAX BL-O 2830-1100
• 1 MULTIcont BL-20 SD-L speed controller
• 1 Li-BATT eco 3/1-2000 (M6)
3. T . O
YP PERATIONAL
S "E S II"
ET ASY TAR
3S LiPo / MPX 7" x 6" folding prop
approx. 14.0 A
Recommended flight battery:
MULTIPLEX Li-BATT eco 3/2000
Do not use the supplied PERMAX BL-O 2830-1100 motor
with more than 3S LiPo or 9 NiXX cells when using the
recommended propellers.
4. S N
AFETY OTES
The power set "EasyStar II" is designed exclusively for
use in modelling applications. Incorrect use can result in
serious personal injury.
• Read the instructions before initiation
• Before every flight, check that the motor and propeller
are securely mounted
• Remove all movable objects from the area around the
propeller before switching the motor on
• Do not allow clothing or any of your extremities to get
close to the spinning propeller
• Never start running the motor in your hand
• Stop the motor immediately if you notice vibration.
Eliminate the cause of the vibration before running it
again; you may need to correct the balance of the
propeller blades
• Make sure the power system is adequately cooled; do
not allow anything to obstruct the free circulation of air
MULTIPLEX Modellsport GmbH & Co.KG • Westliche Gewerbestraße 1 • D-75015 Bretten • www.multiplex-rc.de

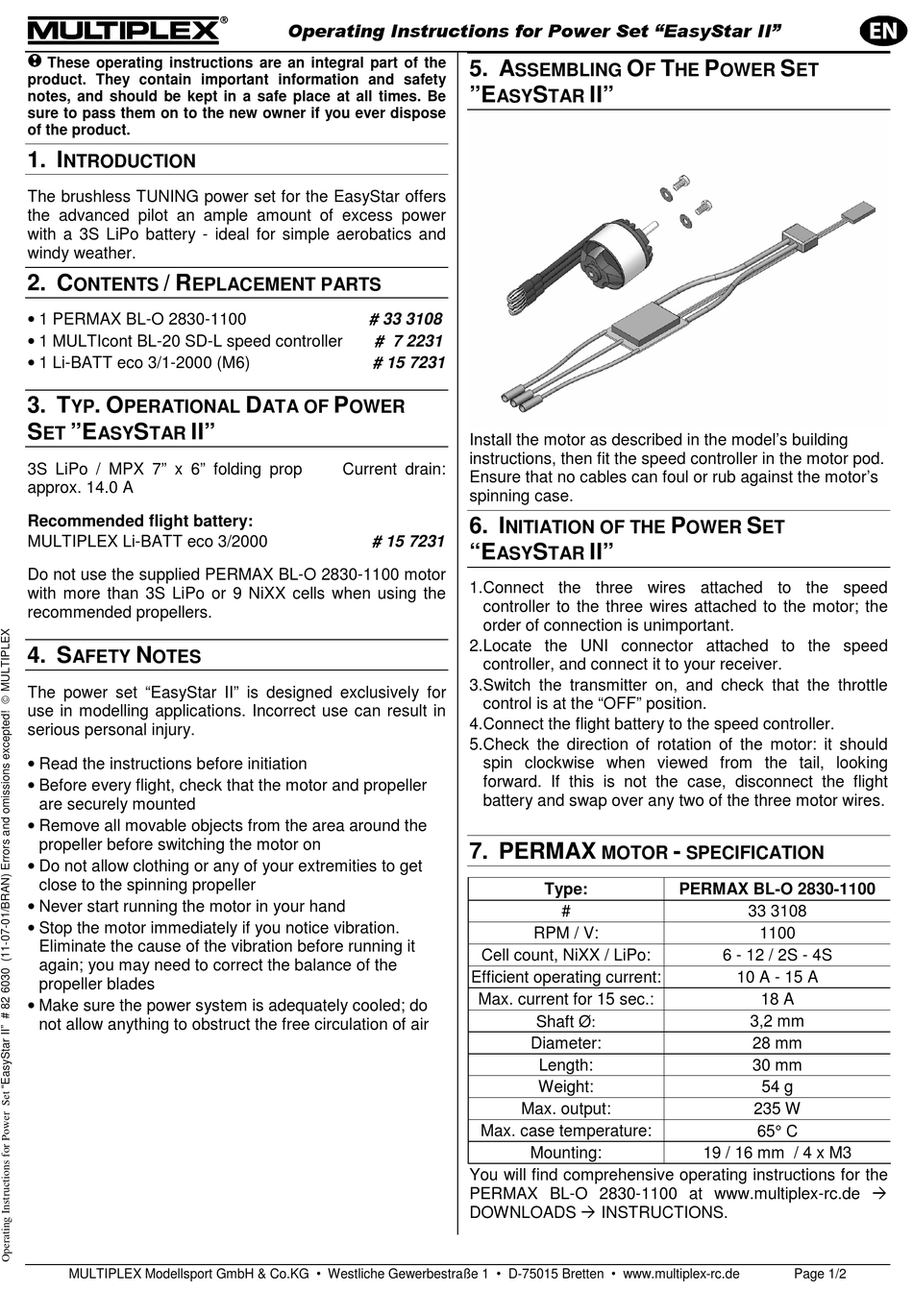

Operating Instructions for Power Set "EasyStar II"
# 33 3108
# 7 2231
# 15 7231
D P
ATA OF OWER
Current drain:
# 15 7231
5. A O
SSEMBLING
"E S II"
ASY TAR
Install the motor as described in the model's building
instructions, then fit the speed controller in the motor pod.
Ensure that no cables can foul or rub against the motor's
spinning case.
6. I
NITIATION OF THE
"E S II"
ASY TAR
1. Connect the three wires attached to the speed
controller to the three wires attached to the motor; the
order of connection is unimportant.
2. Locate the UNI connector attached to the speed
controller, and connect it to your receiver.
3. Switch the transmitter on, and check that the throttle
control is at the "OFF" position.
4. Connect the flight battery to the speed controller.
5. Check the direction of rotation of the motor: it should
spin clockwise when viewed from the tail, looking
forward. If this is not the case, disconnect the flight
battery and swap over any two of the three motor wires.
7. PERMAX
MOTOR
Type:
#
RPM / V:
Cell count, NiXX / LiPo:
Efficient operating current:
Max. current for 15 sec.:
Shaft Ø:
Diameter:
Length:
Weight:
Max. output:
Max. case temperature:
Mounting:
You will find comprehensive operating instructions for the
PERMAX BL-O 2830-1100 at www.multiplex-rc.de
DOWNLOADS INSTRUCTIONS.
T P S
F HE OWER ET
P S
OWER ET
-
SPECIFICATION
PERMAX BL-O 2830-1100
33 3108
1100
6 - 12 / 2S - 4S
10 A - 15 A
18 A
3,2 mm
28 mm
30 mm
54 g
235 W
65° C
19 / 16 mm / 4 x M3
Page 1/2
