1. Introduction

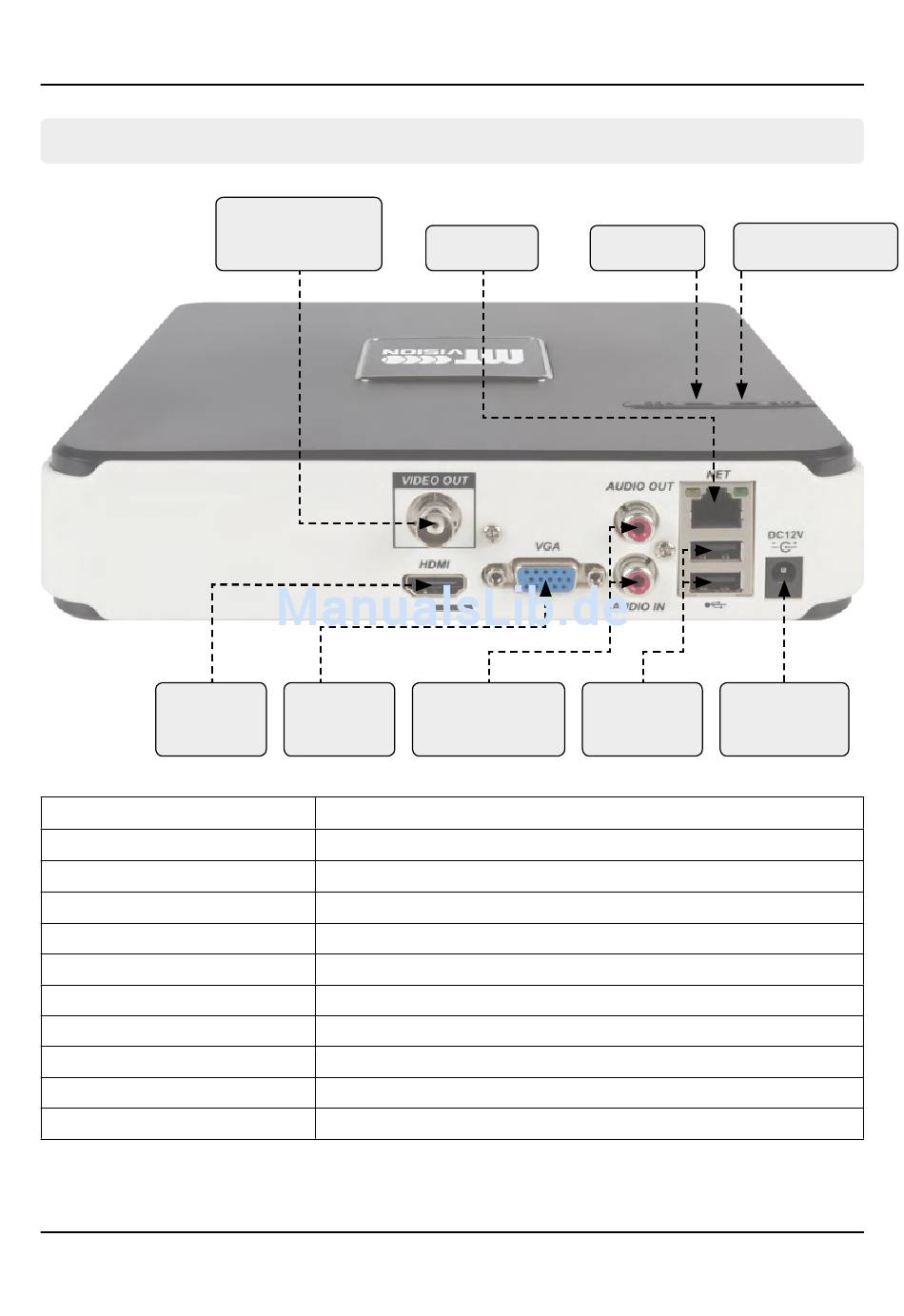

1.3 Connections and designations

HDMI
output
BNC video output
HDMI input
VGA output
LAN connection
Audio input
Audio output
USB port 1
USB port 2
Power supply
HDD LED
Pperation LED
04
BNC
Video output
VGA
output
Connecting to an external display / monitor
Connecting to an external display / monitor
Connecting to an external display / monitor
Connect to the Network
Connect to a microphone
Connection to an external speaker
Connecting the USB mouse or USB keyboard
Connecting a back-up hard drive to archiving recordings
Connection of 230/12 Volt power supply
Control indicator in HDD mode
Warning light if the device was connected to the power
ENGLISH
LAN port HDD LED
AUDIO
in / output
Operation LED
2x USB Power
port supply
