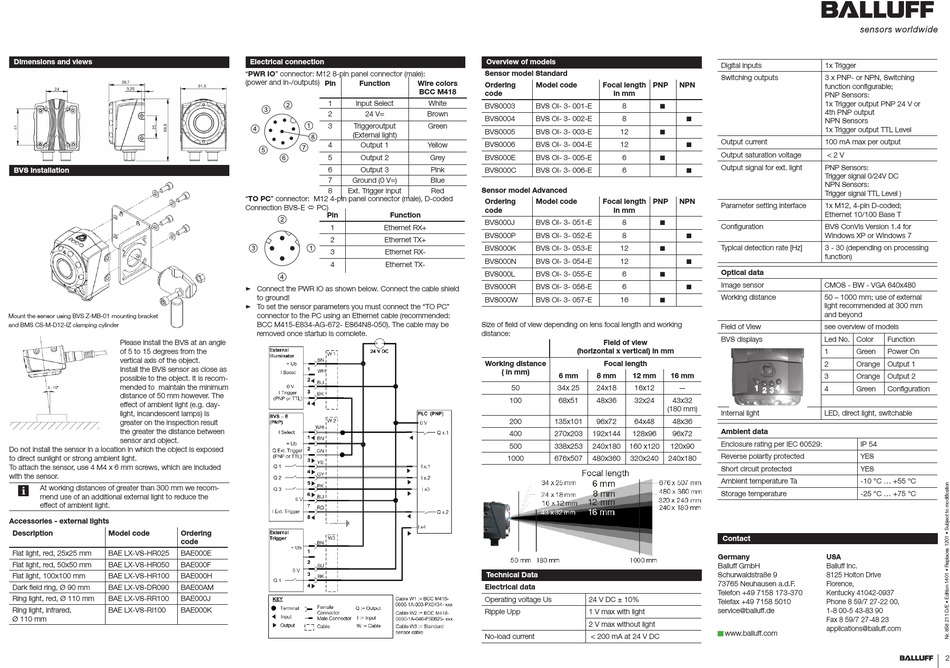

Balluff BVS-E Handbuch Seite 4

Dimensions and views
BVS Installation
Mount the sensor using BVS Z-MB-01 mounting bracket
and BMS CS-M-D12-IZ clamping cylinder
Please install the BVS at an angle
of 5 to 15 degrees from the
vertical axis of the object.
Install the BVS sensor as close as
possible to the object. It is recom-
mended to maintain the minimum
distance of 50 mm however. The
effect of ambient light (e.g. day-
light, incandescent lamps) is
greater on the inspection result
the greater the distance between
sensor and object.
Do not install the sensor in a location in which the object is exposed
to direct sunlight or strong ambient light.
To attach the sensor, use 4 M4 x 6 mm screws, which are included
with the sensor.
At working distances of greater than 300 mm we recom-
mend use of an additional external light to reduce the
effect of ambient light.
Accessories - external lights
Description Model code Ordering
code
Flat light, red, 25x25 mm BAE LX-VS-HR025 BAE000E
Flat light, red, 50x50 mm BAE LX-VS-HR050 BAE000F
Flat light, 100x100 mm BAE LX-VS-HR100 BAE000H
Dark field ring, Ø 90 mm BAE LX-VS-DR090 BAE00AM
Ring light, red, Ø 110 mm BAE LX-VS-RR100 BAE000J
Ring light, infrared, BAE LX-VS-RI100 BAE000K
Ø 110 mm
Electrical connections
"PWR IO" connector: M12 8-pin panel connector (male):
(power and in-/outputs)
Pin Function Wire colors
BCC M418
1 Input Select
2 24 V=
3 Triggeroutput
(External light)
4 Output 1
5 Output 2
6 Output 3
7 Ground (0 V=)
8 Ext. Trigger input
"TO PC" connector: M12 4-pin panel connector (male), D-coded
Connection BVS-E ó PC)
Pin Function
1 Ethernet RX+
2 Ethernet TX+
3 Ethernet RX-
4 Ethernet TX-
► Connect the PWR IO as shown below. Connect the cable shield
to ground!
► To set the sensor parameters you must connect the "TO PC"
connector to the PC using an Ethernet cable (recommended:
BCC M415-E834-AG-672- ES64N8-050). The cable may be
removed once startup is complete.
Overview of models
Sensor model Standard
Ordering Model code Focal length
code
White
BVS0003 BVS OI- 3- 001-E
Brown
BVS0004 BVS OI- 3- 002-E
Green
BVS0005 BVS OI- 3- 003-E
Yellow BVS0006 BVS OI- 3- 004-E
BVS000E BVS OI- 3- 005-E
Grey
Pink BVS000C BVS OI- 3- 006-E
Blue
Sensor model Advanced
Red
Ordering Model code Focal length
code
BVS000J BVS OI- 3- 051-E
BVS000P BVS OI- 3- 052-E
BVS000K BVS OI- 3- 053-E
BVS000N BVS OI- 3- 054-E
BVS000L BVS OI- 3- 055-E
BVS000R BVS OI- 3- 056-E
BVS000W BVS OI- 3- 057-E
Size of field of view depending on lens focal length and working
distance:
Field of view
(horizontal x vertical) in mm
Working distance Focal length
( in mm)
6 mm 8 mm
50 34x 25 24x18
100 68x51 48x36
200 135x101 96x72
400 270x203 192x144
500 338x253 240x180
1000 676x507 480x360
Technical Data
Electrical data
Operating voltage Us 24 V DC ± 10%
Ripple Upp 1 V max with light
2 V max without light
No-load current < 200 mA at 24 V DC
Digital inputs
Switching outputs
PNP NPN
in mm
8
n
8 n
12 n
Output current
12 n
Output saturation voltage
6
n
Output signal for ext. light
6
n
PNP NPN
Parameter setting interface
in mm
8
n
Configuration
8 n
Typical detection rate [Hz]
12 n
12 n
Optical data
6
n
Image sensor
6
n
Working distance
16 n
Field of View
BVS displays
12 mm 16 mm
16x12 — 1 2 3 4
32x24 43x32
(180 mm)
Internal light
64x48 48x36
Ambient data
128x96 96x72
Enclosure rating per IEC 60529:
160 x120 120x90
Reverse polarity protected
320x240 240x180
Short circuit protected
Ambient temperature Ta
Storage temperature
Contact
Germany
Balluff GmbH
Schurwaldstraße 9
73765 Neuhausen a.d.F.
Telefon +49 7158 173-370
Telefax +49 7158 5010
service@balluff.de
www.balluff.com
1x Trigger
3 x PNP- or NPN, Switching
function configurable;
PNP Sensors:
1x Trigger output PNP 24 V or
4th PNP output
NPN Sensors
1x Trigger output TTL Level
100 mA max per output
< 2 V
PNP Sensors:
Trigger signal 0/24V DC
NPN Sensors:
Trigger signal TTL Level )
1x M12, 4-pin D-coded;
Ethernet 10/100 Base T
BVS ConVis Version 1.4 for
Windows XP or Windows 7
3 - 30 (depending on processing
function)
CMOS - BW - VGA 640x480
50 – 1000 mm; use of external
light recommended at 300 mm
and beyond
see overview of models
Led No. Color Function
1 Green Power On
2 Orange Output 1
3 Orange Output 2
4 Green Configuration
LED, direct light, switchable
IP 54
YES
YES
-10 °C ... +55 °C
-25 °C ... +75 °C
USA
Balluff Inc.
8125 Holton Drive
Florence,
Kentucky 41042-0937
Phone 8 59/7 27-22 00,
1-8 00-5 43-83 90
Fax 8 59/7 27-48 23
applications@balluff.com
