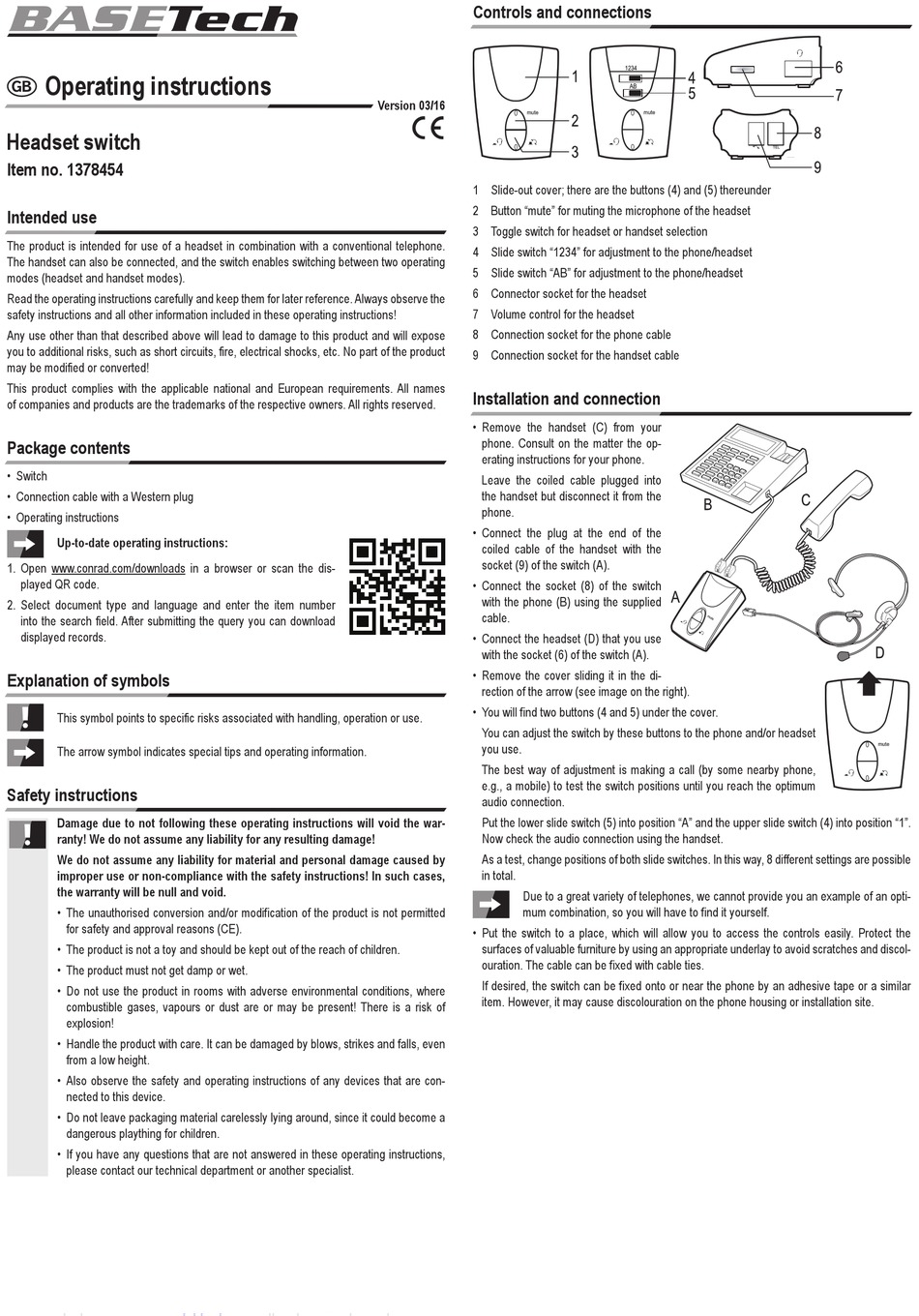

Operating instructions
Headset switch
Item no. 1378454
Intended use
The product is intended for use of a headset in combination with a conventional telephone.
The handset can also be connected, and the switch enables switching between two operating
modes (headset and handset modes).
Read the operating instructions carefully and keep them for later reference. Always observe the
safety instructions and all other information included in these operating instructions!
Any use other than that described above will lead to damage to this product and will expose
you to additional risks, such as short circuits, fire, electrical shocks, etc. No part of the product
may be modified or converted!
This product complies with the applicable national and European requirements. All names
of companies and products are the trademarks of the respective owners. All rights reserved.
Package contents
• Switch
• Connection cable with a Western plug
• Operating instructions
Up-to-date operating instructions:
1. Open www.conrad.com/downloads in a browser or scan the dis-
played QR code.
2. Select document type and language and enter the item number
into the search field. After submitting the query you can download
displayed records.
Explanation of symbols
This symbol points to specific risks associated with handling, operation or use.
The arrow symbol indicates special tips and operating information.
Safety instructions
Damage due to not following these operating instructions will void the war-
ranty! We do not assume any liability for any resulting damage!
We do not assume any liability for material and personal damage caused by
improper use or non-compliance with the safety instructions! In such cases,
the warranty will be null and void.
• T he unauthorised conversion and/or modification of the product is not permitted
for safety and approval reasons (CE).
• The product is not a toy and should be kept out of the reach of children.
• The product must not get damp or wet.
• Do not use the product in rooms with adverse environmental conditions, where
combustible gases, vapours or dust are or may be present! There is a risk of
explosion!
• Handle the product with care. It can be damaged by blows, strikes and falls, even
from a low height.
• Also observe the safety and operating instructions of any devices that are con-
nected to this device.
• Do not leave packaging material carelessly lying around, since it could become a
dangerous plaything for children.
• If you have any questions that are not answered in these operating instructions,
please contact our technical department or another specialist.
Controls and connections
Version 03/16
°
1 Slide-out cover; there are the buttons (4) and (5) thereunder
2 Button "mute" for muting the microphone of the headset
3 Toggle switch for headset or handset selection
4 Slide switch "1234" for adjustment to the phone/headset
5 Slide switch "AB" for adjustment to the phone/headset
6 Connector socket for the headset
7 Volume control for the headset
8 Connection socket for the phone cable
9 Connection socket for the handset cable
Installation and connection
• Remove the handset (C) from your
phone. Consult on the matter the op-
erating instructions for your phone.
Leave the coiled cable plugged into
the handset but disconnect it from the
phone.
• Connect the plug at the end of the
coiled cable of the handset with the
socket (9) of the switch (A).
• Connect the socket (8) of the switch
with the phone (B) using the supplied
cable.
• Connect the headset (D) that you use
with the socket (6) of the switch (A).
• Remove the cover sliding it in the di-
rection of the arrow (see image on the right).
• Y ou will find two buttons (4 and 5) under the cover.
You can adjust the switch by these buttons to the phone and/or headset
you use.
The best way of adjustment is making a call (by some nearby phone,
e.g., a mobile) to test the switch positions until you reach the optimum
audio connection.
Put the lower slide switch (5) into position "A" and the upper slide switch (4) into position "1".
Now check the audio connection using the handset.
As a test, change positions of both slide switches. In this way, 8 different settings are possible
in total.
Due to a great variety of telephones, we cannot provide you an example of an opti-
mum combination, so you will have to find it yourself.
• Put the switch to a place, which will allow you to access the controls easily. Protect the
surfaces of valuable furniture by using an appropriate underlay to avoid scratches and discol-
ouration. The cable can be fixed with cable ties.
I f desired, the switch can be fixed onto or near the phone by an adhesive tape or a similar
item. However, it may cause discolouration on the phone housing or installation site.
