5. Mounting and startup procedure

5.3 Terminating resistors

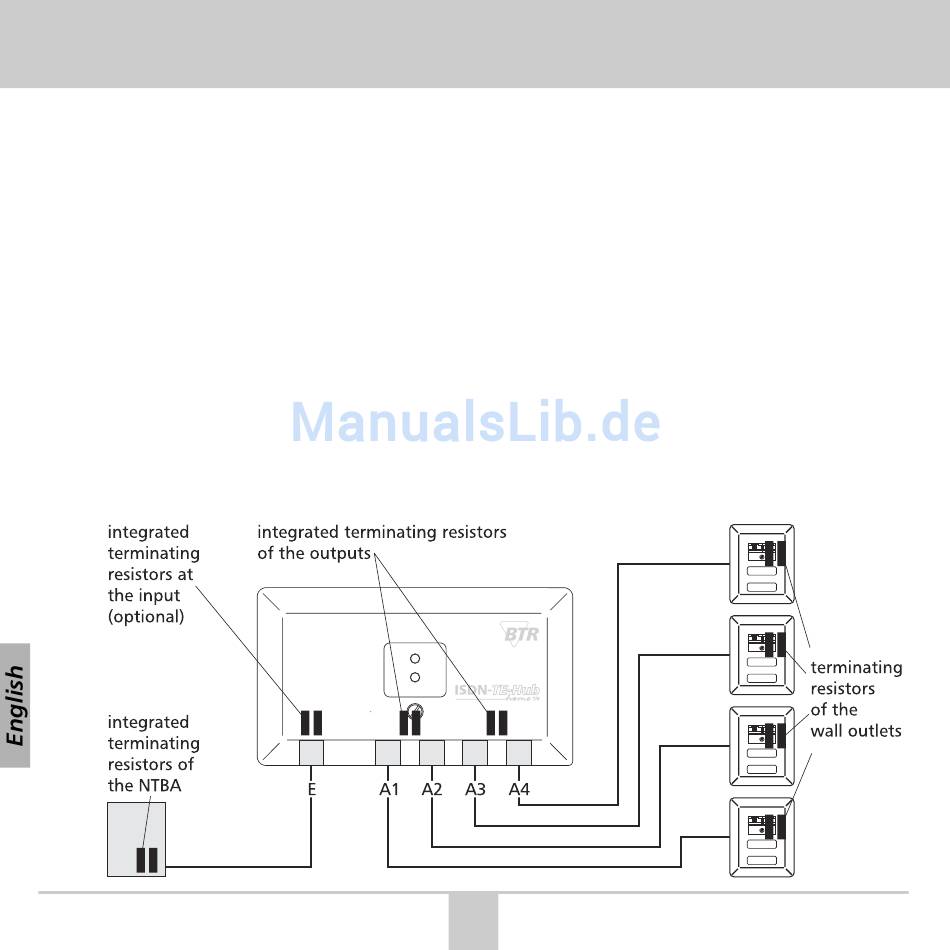

ISDN S bus installations require that the ISDN S
0
beginning and end by 100 Ohm terminating resistors. The outputs A1 to A4
of the ISDN-TE-Hub home 1/4 are to consider as independent ISDN busses.
The resistors at the beginning of the bus of these outputs are integrated to
the ISDN-TE-Hub home 1/4. The terminating resistors at the bus end have
to be mounted into the ISDN wall outlets.
When using the ISDN cable included, it is not necessary to terminate the
input of the ISDN-TE-Hub home 1/4. Activate the internal terminating resis-
tors when installing the ISDN-TE-Hub home 1/4 via installation cables by
using the terminal blocks. If the ISDN S
nal terminating resistors and terminate the bus at its end.
0
bus continues, deactivate the inter-
0
E14
bus is terminated at its
