Change Of Door Opening Direction Of Frozen Food Compartment - Küppersbusch IKE 156-0 Gebrauchs- Und Montageanleitung

Change of door opening direction of
frozen food compartment
After changing the outer door opening direction at this
type it is necessary to remount the door of the frozen
food compartment as well.

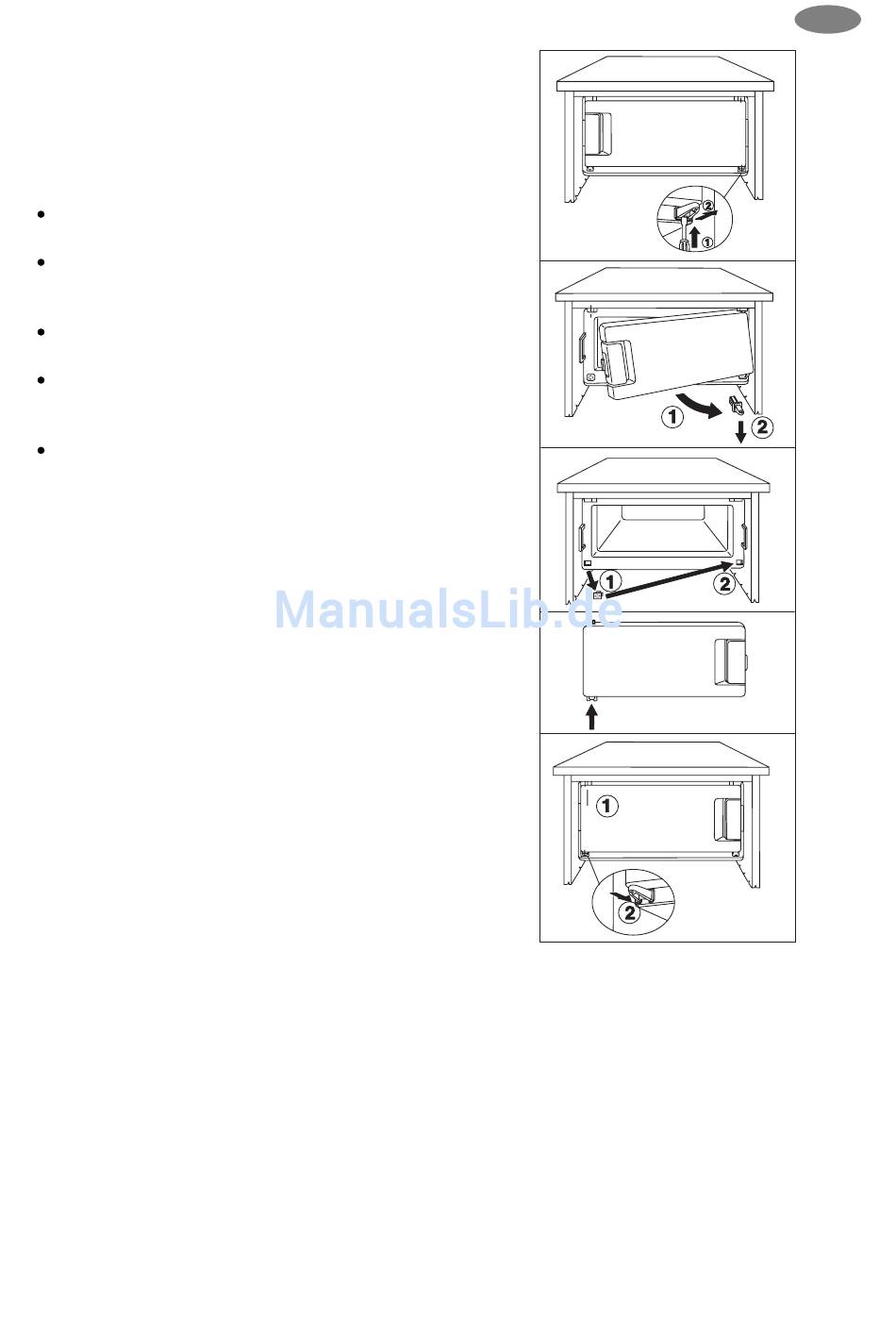

Operations and their order can be seen in figure.
Press the retaining lever inside the lower
doorhinge.
Tilt the lower doorhinge out together with the
freezer compartment door then remove it from the
pin of the freezer compartment door.
Remove the rectangular plug and put it into the
opening got free on the other side.
Having the freezer compartment door turned by
180° put the lower hinge onto the lower pin of the
freezer compartment door.
Put the upper hinge pin of the freezer compartment
door into the free opening, then push the lower
hinge into its place together with the freezer
compartment door.
In case you do not want to perform the procedures
above, call the nearest brand-mark service.
Technicians will accomplish the refitting expertly for
charge.
