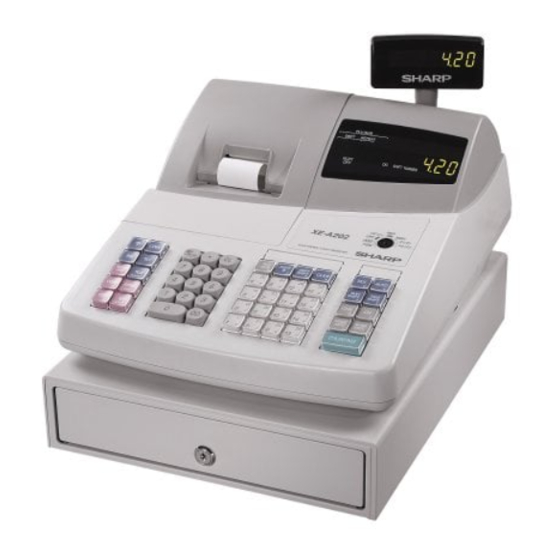

XE-A202 Quick Start Guide
For quick set-up, follow the steps shown below. Note that malfunction may occur if you do not follow the steps. For further information, please read the instruction manual. Before setting up your cash register, prepare
three new R6 or LR6 batteries ("AA" size), which are necessary for memory backup, and find a stable surface near an AC outlet where the cash register is not subject to water sources or direct sunlight.
Installing the Cash
1 2
Register
Install the cash register using the fixing
Initializing the Cash Register
angle bracket provided with the register.
To ensure the cash register operates properly, initialize it
using the following procedure.
1. Thoroughly clean the location where
1. Make sure the AC power cord is unplugged and
the fixing angle bracket (B) is to be
batteries are not installed on the register.
placed.
2. Insert the manager (MA) key into
2. Peel off the adhesive tape on the
the mode switch and turn it to the
fixing angle bracket.
REG position.
3. Hook the angle bracket onto the hook
3. Insert the plug of the AC power
(A) that is located at the bottom rear
cord into the AC outlet. A buzzer
of the register.
will sound three times.
4. Firmly stick the fixing angle bracket to
IMPORTANT: This operation must be performed
the table surface that you cleaned
above.
4. The register display should now show "
NOTE: If the buzzer does not sound when the plug is
inserted, the initialization has not been done successfully.
Wait at least one minute after pulling out the plug, and
insert the plug again.
Installing the Batteries
Install three new R6 or LR6 batteries ("AA" size) according
to the procedure shown below with the power cord
connected and set the mode switch to
REG position.
A
B
1. Lift the rear of the printer cover and
detach it.
To remove the register from the fixing
angle bracket:
2. Open the battery compartment
1. Lift up the front of the register and
cover.
pull the register towards you.
3. Install three new R6 or LR6
batteries ("AA"size) as per the
diagram.
When the batteries are properly
installed " " on the display will
disappear.
4. Close the battery compartment cover.
Preparing the Cash Register
REG
OPX/Z
MGR
X1/Z1
X2/Z2
PGM
without batteries installed.
0.00".
Installing the Paper Roll
3
(for receipt printing)
1. Lift up the print roller release lever to unlock and open the
print roller arm
Print roller arm
Print roller
release lever
2. Set a paper roll in the paper roll cradle as per the diagram.
To the printer To the printer
Correct Incorrect
3. Feed the end of the paper along
with the paper
Paper positioning
positioning guides
guides
as per the diagram.
4. While holding down the paper,
slowly close the print roller arm,
and push down the arm until you
hear a click locking the arm.
Make sure securely you push
down the center of the wing part
of the arm as per the diagram.
The paper will be fed
automatically.
5. Cut off the excess paper using
the edge of the inner cover, and
replace the printer cover. Press
F
the key to make sure the
paper end comes out of the
printer cover and clean paper
appears.
NOTE: If the print roller arm is not securely locked, printing is
not done right. If this problem occurs, open the arm, and close
the arm as instructed above.
If you want to use a paper roll for journal printing, please refer
to GETTING STARTED section of the instruction manual.
English
Basic Programming
4
Set the mode switch to the PGM
position.
Setting the Date
Enter the date in 8 digits using the day-
month-year format. Then press s .
Example: Date (26 August, 2003)
s
26082003
Setting the Time
Enter the time in 4 digits ("hhmm"
format) using the 24 hour system. Then
press s .
Example: Time (2:30 p.m.)
s
1430
Setting the VAT
Set the VAT rate in seven digits (3-digit
integer and 4-digit decimal).
Example: VAT1 rate 16%
s @ @ @
9 1 16
s A
NOTE: Department 1 to 50 are set to
VAT1 by default.
Other programming
While the cash register is
preprogrammed so that it can be used
with minimal setup, you may need to
program some items such as
department texts and logo message.
For details of programming, please refer
to the instruction manual.
Now, you are ready for
5
sales entries.
Set the mode switch to the REG
position, and start registration. For
details of registration, please refer to the
instruction manual.
