ASSEMBLY STEPS

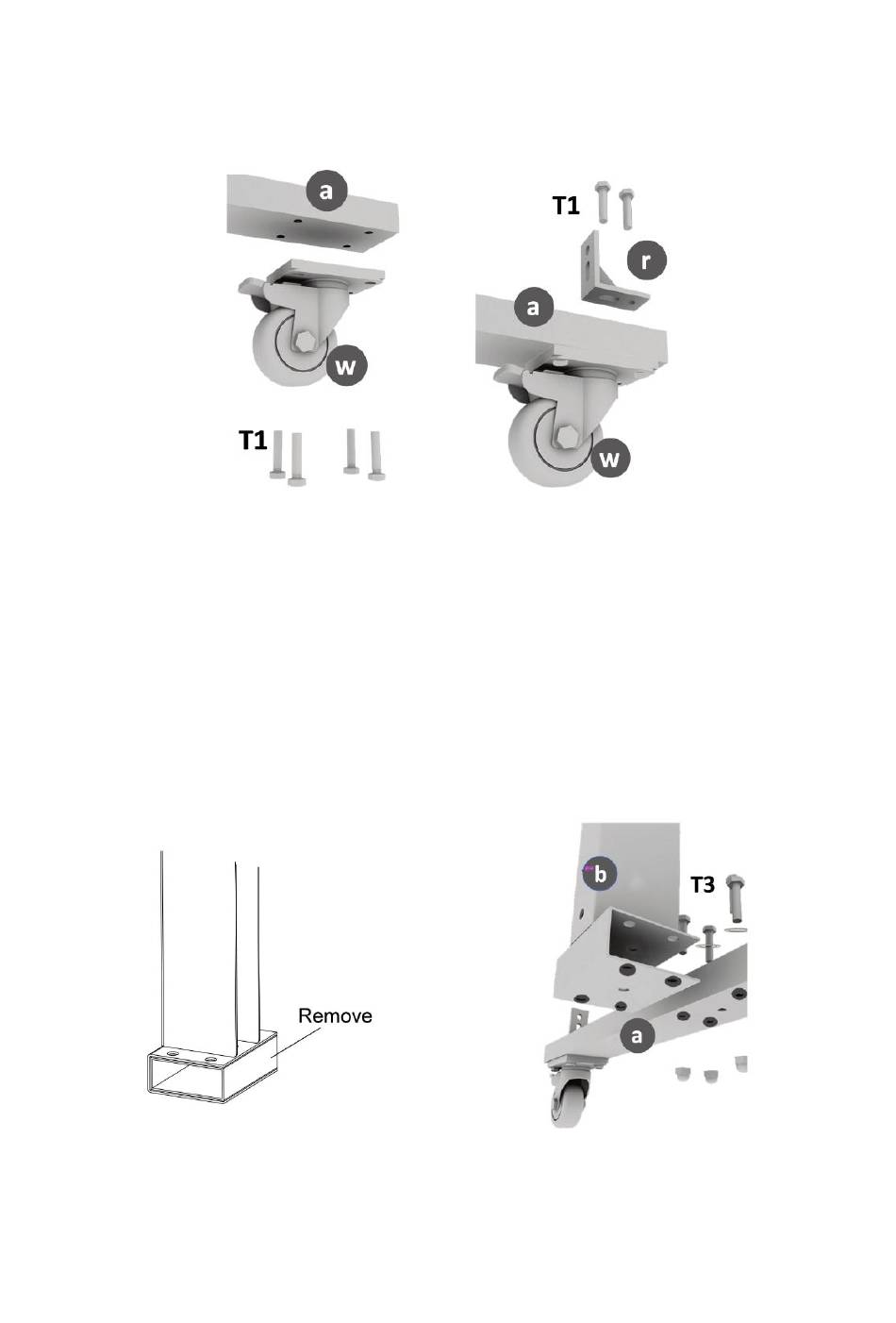

STEP 1:
Ⅰ.Place the wheel (w) on one side of the small bar (a). Insert retaining
screw T1 (4 for each wheel). Use the wrench to tighten it in place. Repeat
for each of the 4 wheels.
Ⅱ.Place the bottom rod(r) on the top of small bar (a). Make sure the L
shape faces out. Insert two (T1) screws and use the wrench to tighten it
in place. Repeat for all the other 3 rods.
STEP 2:
Take vertical bar (b) and place it in the middle of the small bar (a) with C
shape facing inside as shown in figure and tighten it with four (T3) screw
washers and nuts. Repeat for the other side.
