English
Dimensions
27
22
G½ ISO 228/1
G¾ ISO 228/1
LBFS-xx1xx.x
LBFS-xx2xx.x
65
87
M18×1
LBFS-xx7xx.x
Electrical connections
Function M12 plug Cable
+ VDC
1
Brown
NC
2
White
- VDC
3
Blue
NO
4
Black
Connecting the FlexProgrammer, 9701
Using Teach-In
Sophisticated settings for Teach-In as well as output type, diagnostics, data logging, tag no. and damping can be configured using
the FlexProgrammer 9701, either via Level Switch LBFS or programmed as stand alone.
FlexProgrammer 9701 stand alone menu
Press and simultaneously (the vertical arrows) to enter the
FlexProgrammer menu containing e.g. Teach-In and Auto zero functionalities.
www.baumer.com

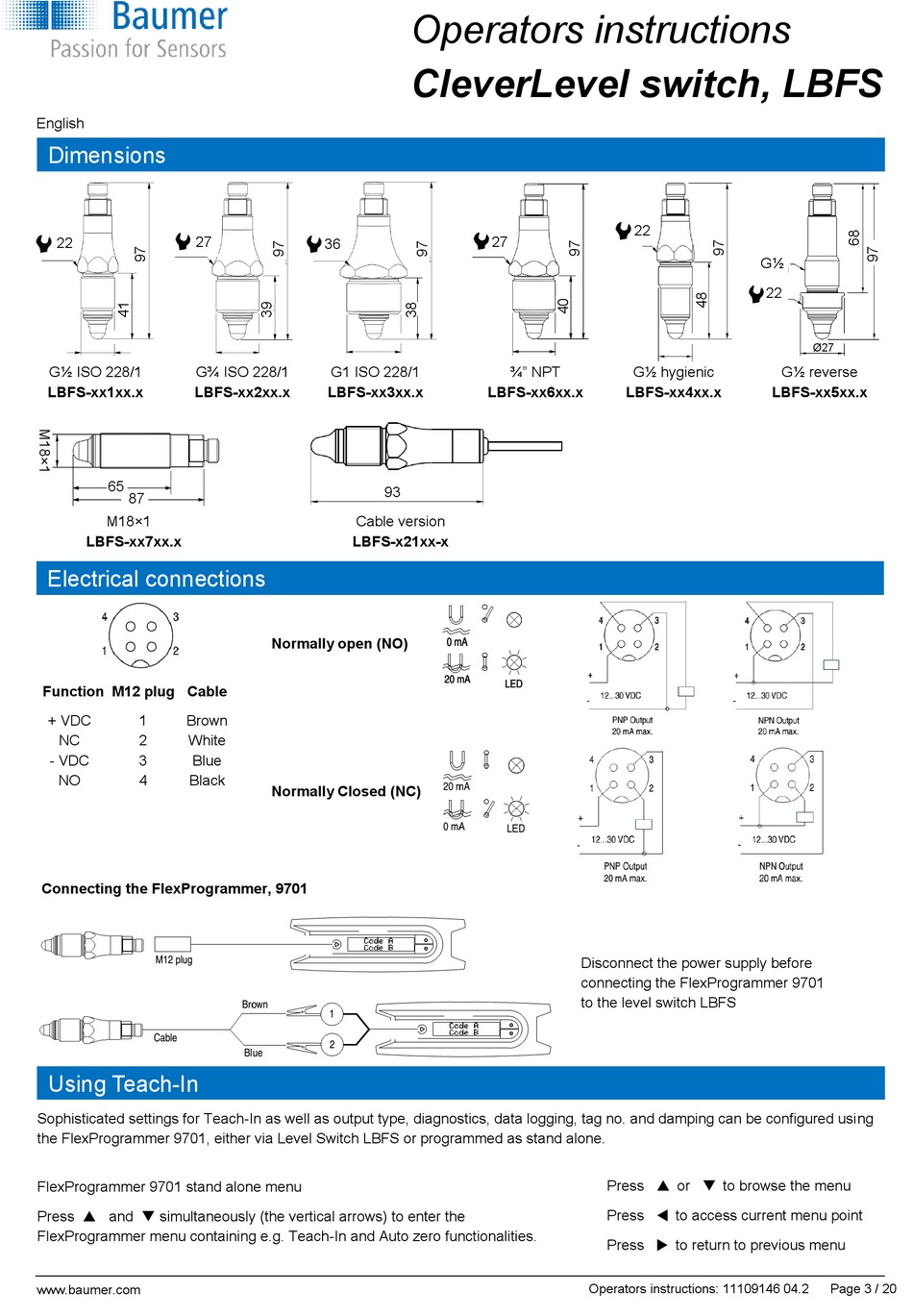

Operators instructions
CleverLevel switch, LBFS
36
G1 ISO 228/1
LBFS-xx3xx.x
93
Cable version
LBFS-x21xx-x
Normally open (NO)
Normally Closed (NC)
22
27
¾" NPT
G½ hygienic
LBFS-xx6xx.x
LBFS-xx4xx.x
Disconnect the power supply before
connecting the FlexProgrammer 9701
to the level switch LBFS
Press or to browse the menu
Press to access current menu point
Press to return to previous menu
Operators instructions: 11109146 04.2
G½
22
Ø27
G½ reverse
LBFS-xx5xx.x
Page 3 / 20
