English

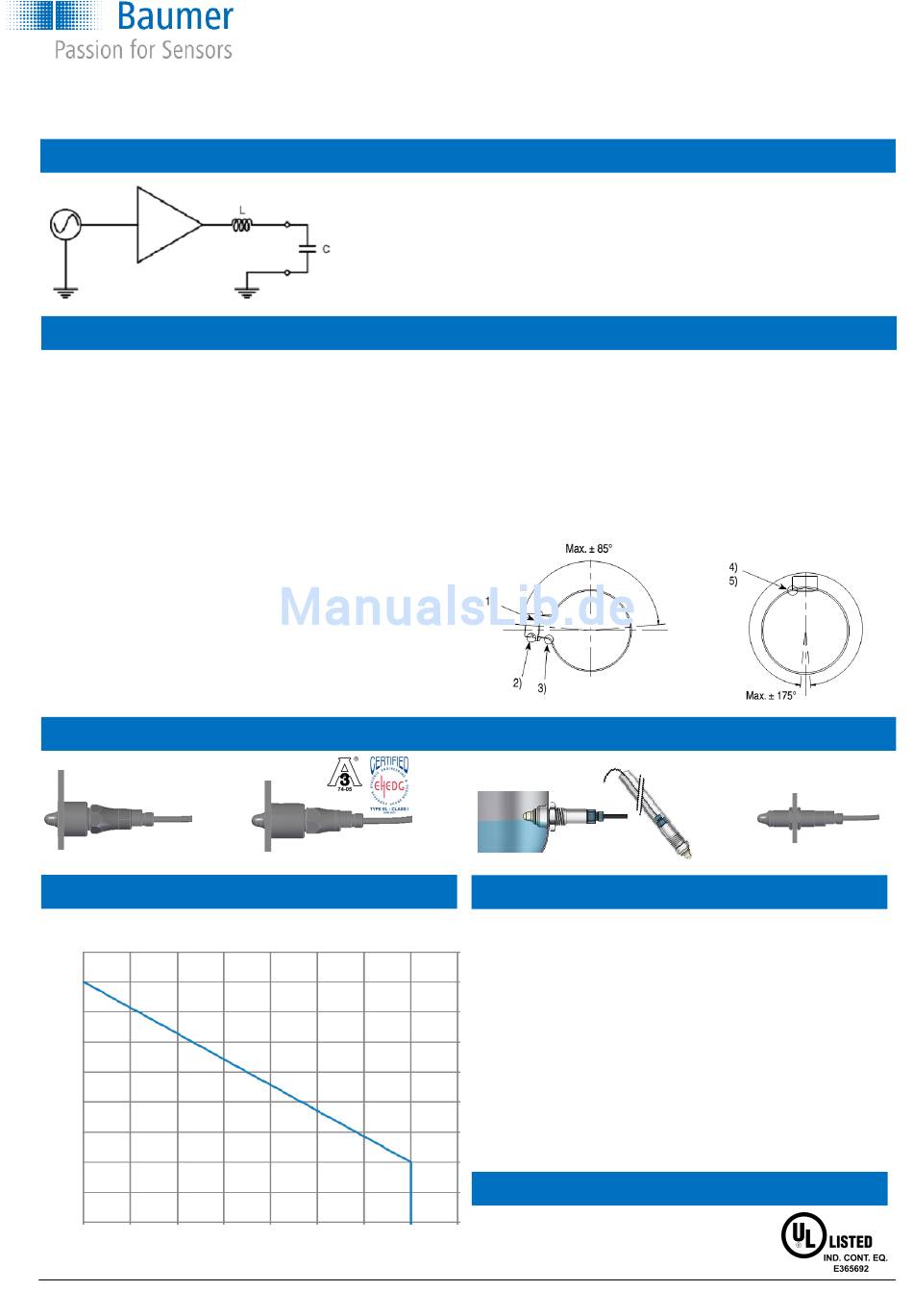

Measuring principle
Mounting
The thread must be sealed e.g. by a gasket or Teflon® tape and
tightened into the counterpart.
Recommended tightening max. 25...30 Nm
Refer to the data sheet "Accessories" for O-rings, gaskets and
other accessories.
If the PEEK tip or PEEK sealing rings for sliding connection is
damaged or seriously scratched, the instrument or sealing rings
should be replaced.
The switch has a protection class of IP67 when mounted with a
correct IP67 M12 cable or in cable version. If mounted with a
stainless steel M12 connection the switch conforms IP69K if
mounted with a correct IP69K M12 cable.
Mounting applications
LBFS-xx1/2/3/6xx.x
Media vs. ambient temperature
Media temperature °C
120
115
110
105
100
95
90
85
80
75
50
55
60
www.baumer.com
The capacity (C) of the media is directly proportional to the dielectric value of the
media
A frequency between 100 and 180MHz is swept into the media
When the coil (L) and the capacitor (C) reach a resonance frequency, it will be
detected by the electrical circuit
LBFS-xx42x.x
65
70
75
80
Ambient temperature °C
Operators instructions
CleverLevel switch, LBFS
Installation of 3-A approved and EHEDG certified products:
1) Use only a 3-A approved counter part.
2) The inspection hole should be visible and drained.
3) Mount the instrument in a self drained position.
4) Level the inner surface of the pipe with the counter part.
5) Weldings should be grinded to Ra= 0.8
LBFS-xx5xx.x
When re-ordering a CleverLevel switch
If a new CleverLevel switch is installed in an existing applica-
tion, it is normally a "plug-n'-play" operation.
If the settings of the level switch was changed from standard
factory settings, it is necessary to re-adjust the new switch to
same as the "old" switch. It is possible to save the settings of
the "old" switch on the PC/FlexProgrammer and download those
again to the new level switch.
The factory settings of the sensitivity of the media may vary up
to ±1,5%. This means that if a very exact set point is required, a
new teach-in or adjustment by the FlexProgram must be per-
formed.
UL approval
Note:
85
90
The UL approval is not valid for cable version
(LBFS-x2xxxx.x)
LBFS-xx71x.x
Operators instructions: 11109146 04.2
Page 2 / 20
