GRAUPNER MICRO MAGIC Betriebsanleitung Seite 22

(supplied) on top; these will conceal the oversized holes.
•
The next step is to cut the slot in the deck for the
keel attachment: the length is indicated by the two
marked points. The slot should be between 2.5 mm
and 3 mm wide. TIP: drill 2.5 mm Ø holes in the
deck at the marked points, then form the slot by
running a sharp knife between the two holes,
working as accurately as you can. The slot should
only be trimmed to final size when the deck and
hull have finally been joined.
•

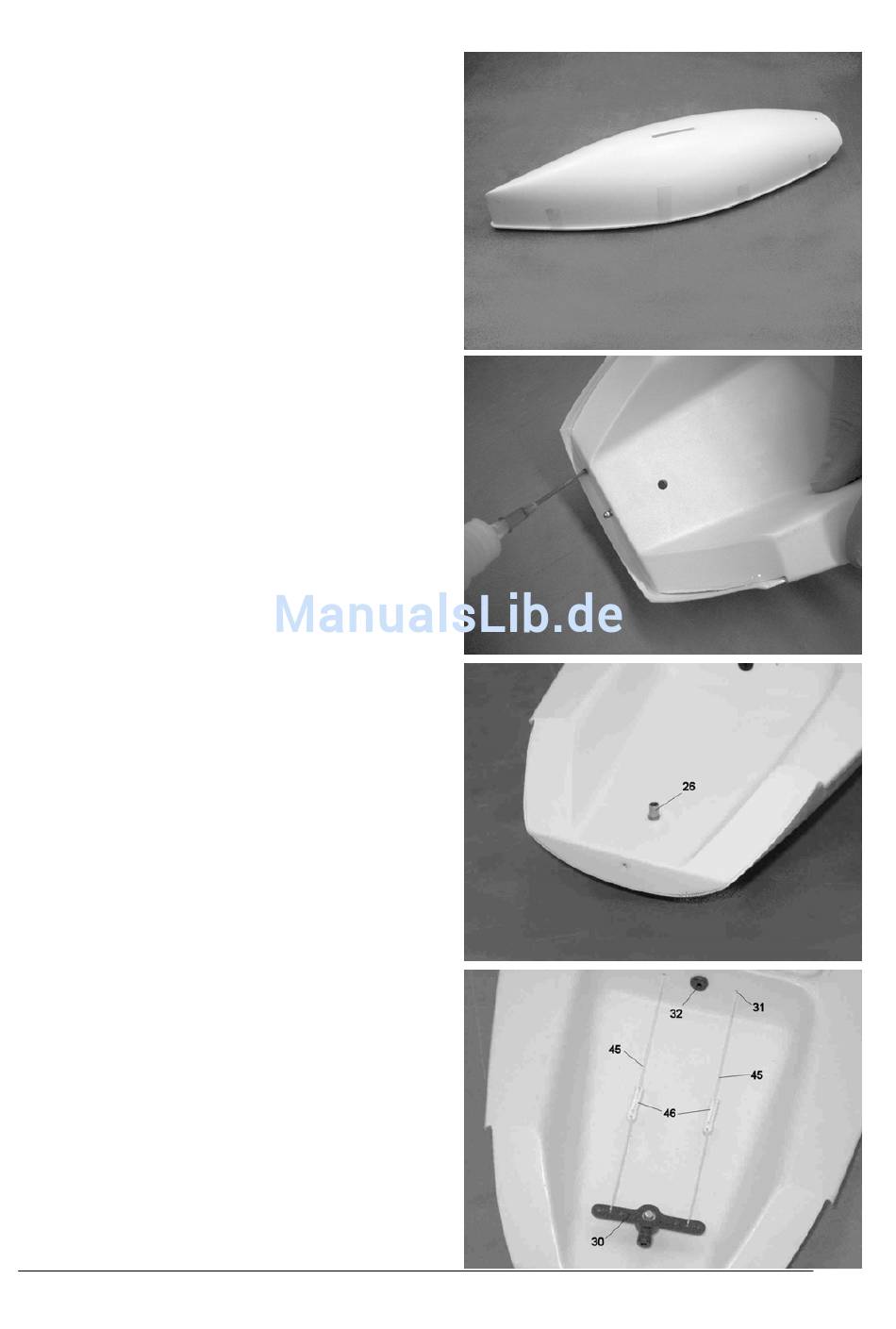

The deck can now be glued to the hull: the first step
is to check that the two parts are a snug fit
together; if not, trim them carefully until they are an
accurate fit. Apply UHU plus (e.g. Order No. 962) to
the bow reinforcement (part 9) and the central
girder (part 25) where the parts meet. Now apply
plenty of UHU plast spezial to the edge of the deck
- omitting the stern area - and join the parts without
delay. IMPORTANT: ensure that neither the hull
nor the deck is distorted when the parts are joined.
Hold the hull and deck together using adhesive
tape or rubber bands while the glue is hardening.
However, don't apply too much pressure, or the hull
will distort. Allow the glue to cure completely, then
apply a little UHU plast spezial along the joint
edges to fill any lurking gaps.
•
Apply plenty of high-viscosity (thick) cyano-acrylate
glue to the unglued gap at the stern. TIP: move the
parts relative to each other to persuade the
adhesive to work its way into the joint. Tape the
stern area together while the cyano is hardening.
•
The stern area
alternatively you can leave the hull projecting
slightly beyond the deck. Note: For version 2014.C
please be assured that the bonding and adhesion
at the stern area is made properly and exactly,
because otherwise it is very difficult to remove the
glue from the carbon surface (it could be
damaged).
•
At this point you must check the hull / deck joint for
leaks. You may need to run more cyano along the
joint to fill any remaining gaps.
•
The deck can now be stiffened by gluing the central
bulkhead (part 19) to the keel / mast socket (part
5).
•
The rudder bush (part 26) is glued in the hull next;
you may need to trim the hole slightly. Position the
rudder bush in the hull as shown on the plan, and
glue it in place using think cyano, forming a narrow
fillet of adhesive round the bush at top and bottom.
Allow the glue to cure completely, then sand back
the underside flush with the hull. It is important that
the gap between the rudder (part 27) and the
surface of the hull is as small as possible. If the gap
is not even, you may need to trim the top edge of
the rudder blade to match the shape of the hull.
•
Set the rudder servo (part 28) to centre from the
transmitter, fit the output arm (part 29) on it, and
install the servo in the servo plate using the
retaining screws provided.
•
Assemble the tiller (part 30) from the plastic lever,
