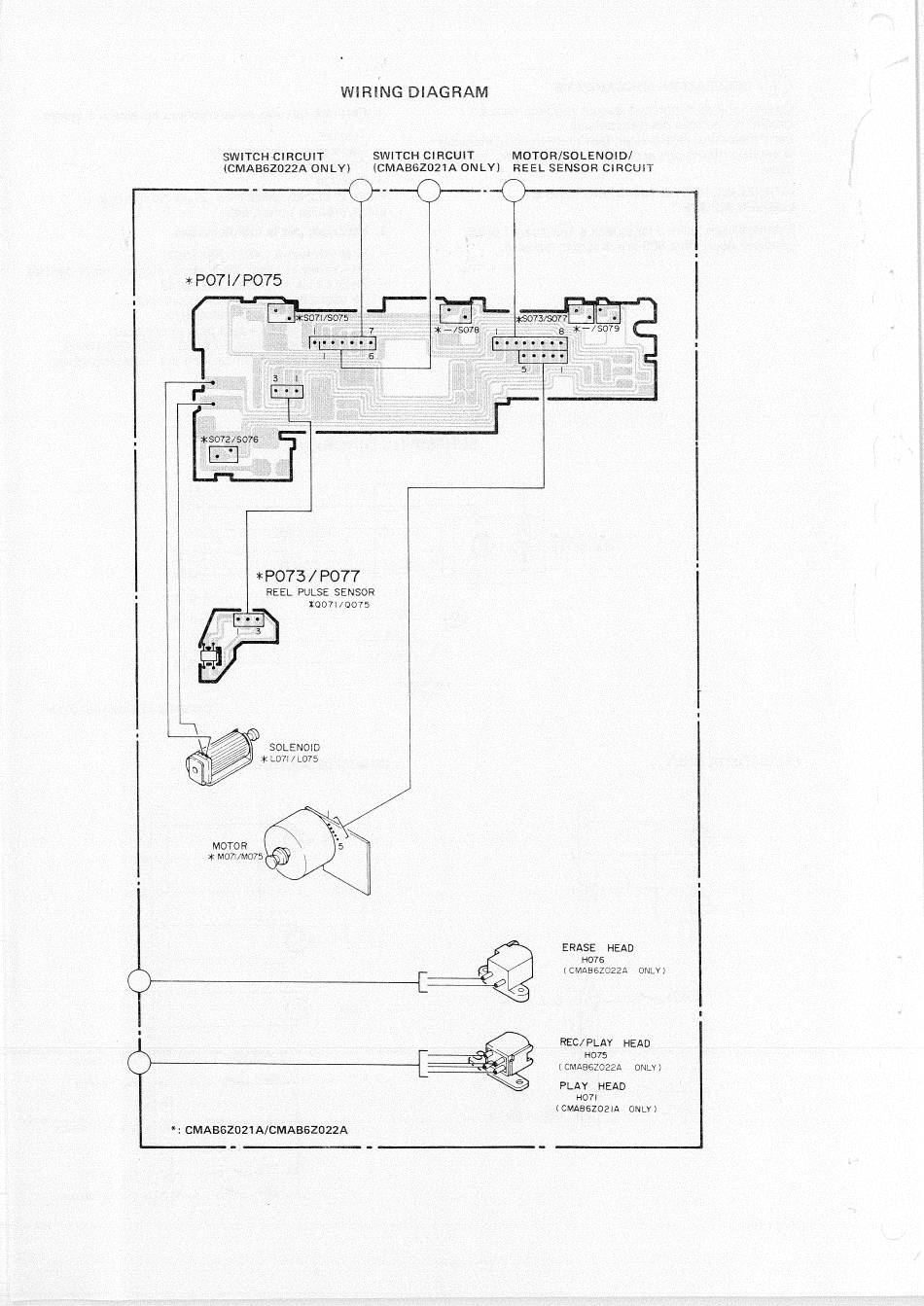

WIRING
SWITCH CIRCUIT
(CMAB6Z022A ONLY)
*P071/P075
07t,'S075
3
*S072/S076
*P073/P077
REEL PULSE SENSOR
XQ071/Q075
SOLENOID
* 1.071 /L07S
MOTOR
5
* M071/M075
• • CMAB6Z021A/CMAB6Z022A
DIAGRAM
SWITCH CIRCUIT MOTOR/SOLENOID/
(CMAB6Z021A ONLY) REEL
073,'S077
—vsore
7
06
5
SENSOR CIRCUIT
ERASE HEAD
H076
CMAB6Z022A ONLY)
REC/PLAY HEAD
H075
( CMAB6Z022A ONLY )
PLAY HEAD
H071
( CMAB6Z021A ONLY)
