Renkforce TB230WW Bedienungsanleitung Seite 27

1 On/off switch
2 SOURCE button (audio source)
3 ►II / PAIR button (play, pause, pairing)
4 VOL + / VOL – button
5 Remote control sensor
6 NFC sensor area
7 Standby indicator
8 AUX indicator
(AUX 1, steadily green / AUX 2, flashing green)

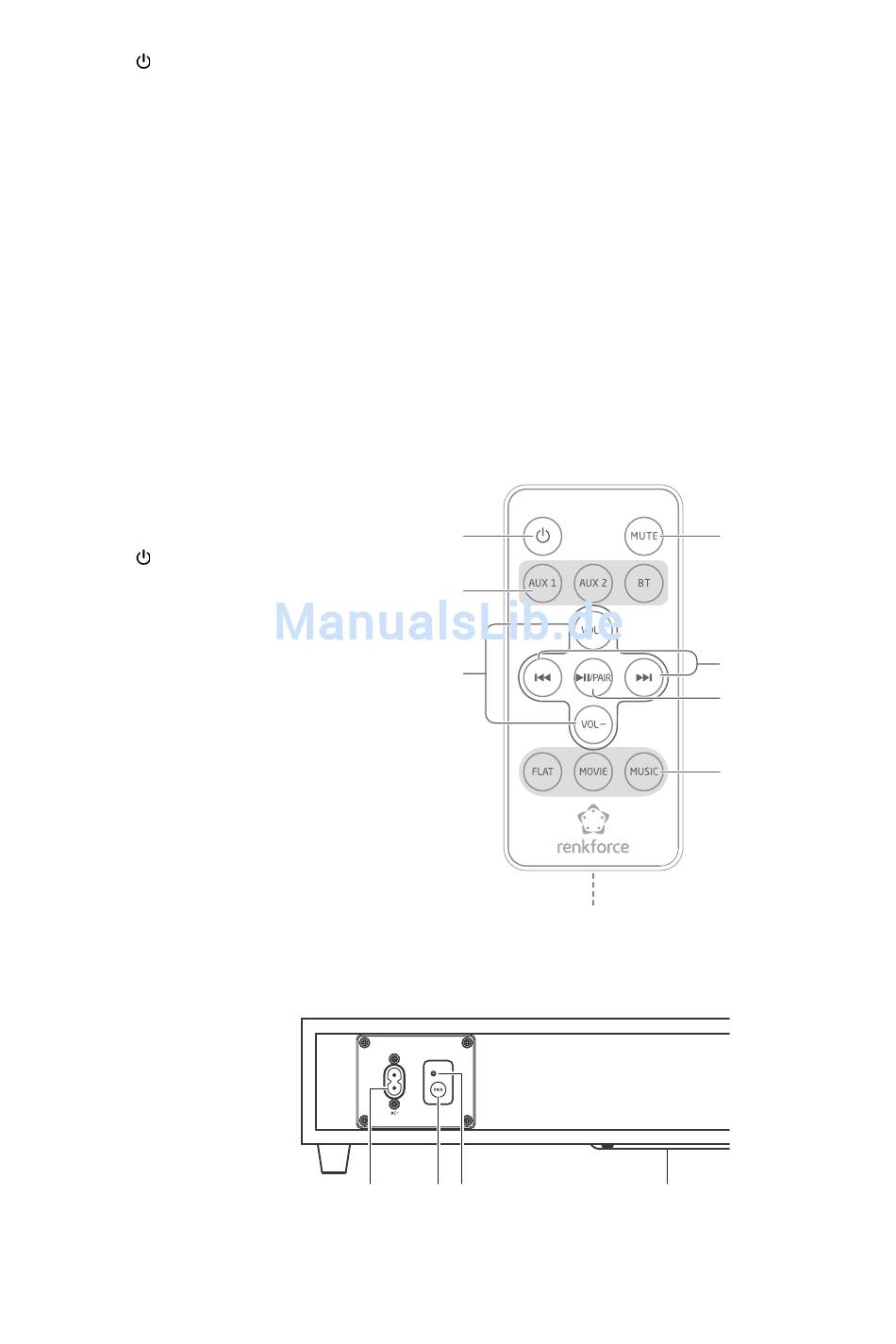

Remote control
15 VOL + / VOL – buttons
16 Buttons for audio sources
17 On/off switch
18 MUTE button (turn sound off)
19 Buttons I ◄◄ / ► ► I (skip to previous/next song
in Bluetooth mode)
20 Button ►II / PAIR (playback, pause, pairing)
21 Sound settings
(MUSIC=music, MOVIE=video, FLAT=neutral)
22 Battery compartment, on the side (covered)
Subwoofer
23 AC ~ port for mains cable
24 Button Pair
25 Pairing indicator
26 Speaker
9 Bluetooth indicator (Bluetooth mode: steadily
blue)
10 AC ~ port for mains cable
11 USB service port (without function)
12 AUX 1 socket
13 AUX 2 socket
14 Screws for wall bracket
