Mark Web Module Installationsanleitung Seite 3

2 Preparation

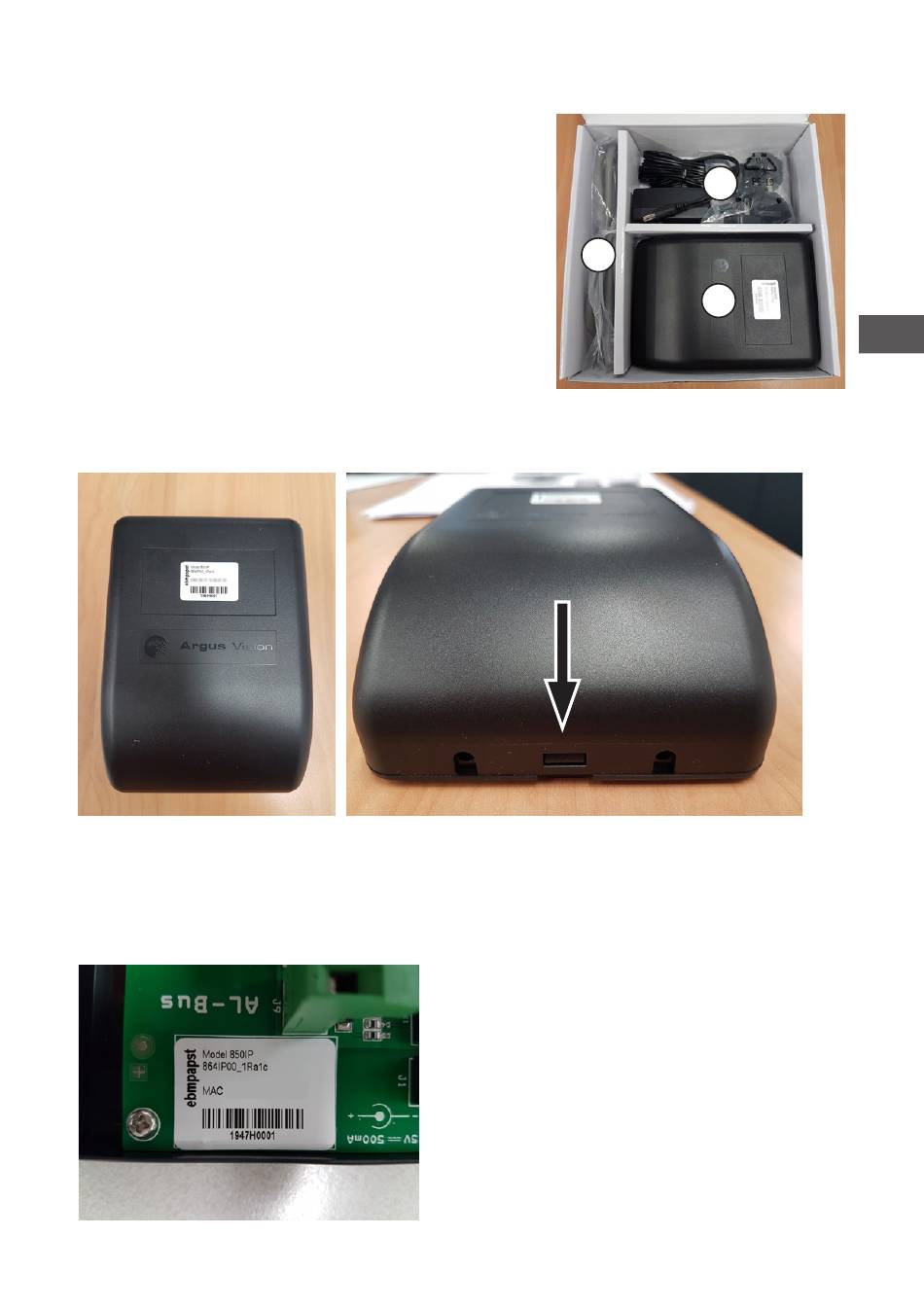

2.1 Contents (Image 1)
1 Web Module
2 Power cable
Input: AC 100-230V 50-60Hz 0.6A
Output: DC 5V 3.0A
Length: 1,9 meter
3 Cat 5E cable
Length: 1,5 meter
2.2 Open Web Module
Carefully open the Web Module with a screwdriver (saw cut) at the black arrow in Image 3.
Image 2
2.3 MAC-address
The MAC address can be found on the sticker of the Web Module (see Image 4). Make a note of this for
yourself, you will use it later during the installation process.
xx xx xx xx xx
Image 4
Image 3
2
3
1
EN
Image 1
3
