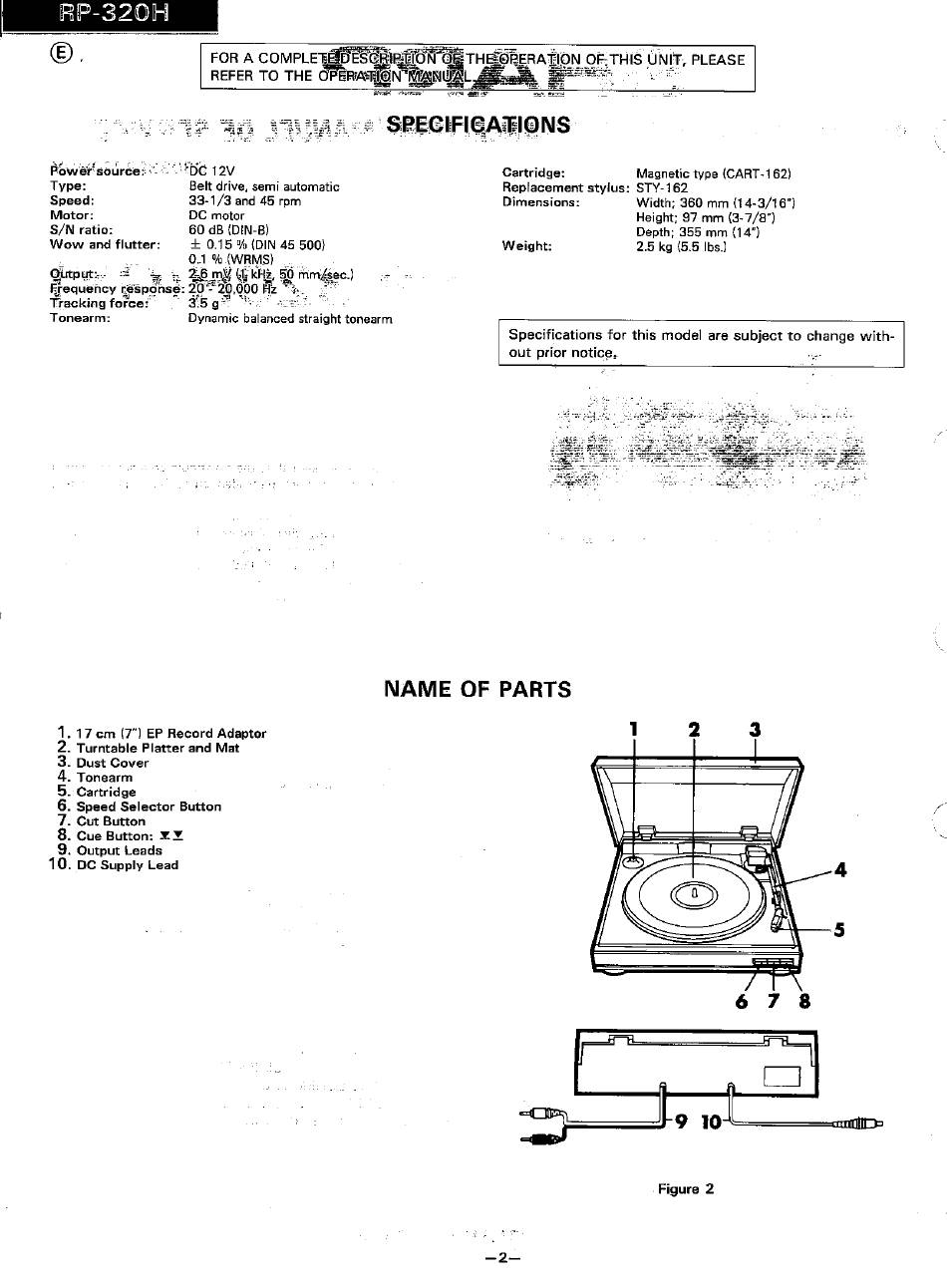

Sharp RP-320H Serviceanleitung Seite 2

RP-320H
FOR A COMPLETäffåÖälP$fdN
REFER
12V
source-.. -
Type: Belt drive. semi automatic
33-1/3 and 45 rpm
Speed:
Motor: DC motor
S/N ratio:
60 dB (DIN-B)
Wow and flutter: ± 0.15 % (DIN 45 500)
0.1 % (WRMS)
qutput:
Frequency response.
Tracking force:
Tonearm: Dynamic balanced straight tonearm
1.
1 7 cm (7") EP Record Adaptor
2.
Turntable Platter and Mat
3.
Dust Cover
4.
Tonearm
5.
Cartridge
6.
Speed Selector Button
7.
Cut Button
8. Cue Button:
9.
Output Leads
10.
DC Supply Lead
TO THE
SPECIFICATIONS
(i mmfec.)
NAME
O*TH$ÖÉERATION ORTHIS UNIT, P LEASE
Cartridge:
Replacement stylus:
Dimensions:
Weight:
Specifications for this model are subject to change with-
out prior notice,
OF PARTS
Magnetic type (CART-162)
STY-162
Width; 360 mm (14-3/16")
Height; 97 mm (3-7/8")
Depth; 355 mm (14")
2.5 kg (5.5 lbs.)
2
3
6 7 8
9 10
Figure 2
4
5
