General description (simplified)
Casing (3), motor cover (5) and inlet plate (4) are made from painted carbon steel. Cover (6) is made from aluminum sheet. Impeller (2) is made
from aluminum alloy. Silencer (10) is made from galvanized carbon steel, with use of damping mat and connection elements made from
aluminum and steel-aluminum. Bushings and connection elements (9, 11) are made from steel, aluminum, galvanized steel, stainless steel.
sealing - sealing paste and or sealing tapes (e.g. EPDM) has been used.
on reasonable request.
22/33 tel. (22) 751 95 50
MPB-R/U/2016
www.venture.pl
Full list of components and materials used in fan can be provided
fax. (22) 751 22 59

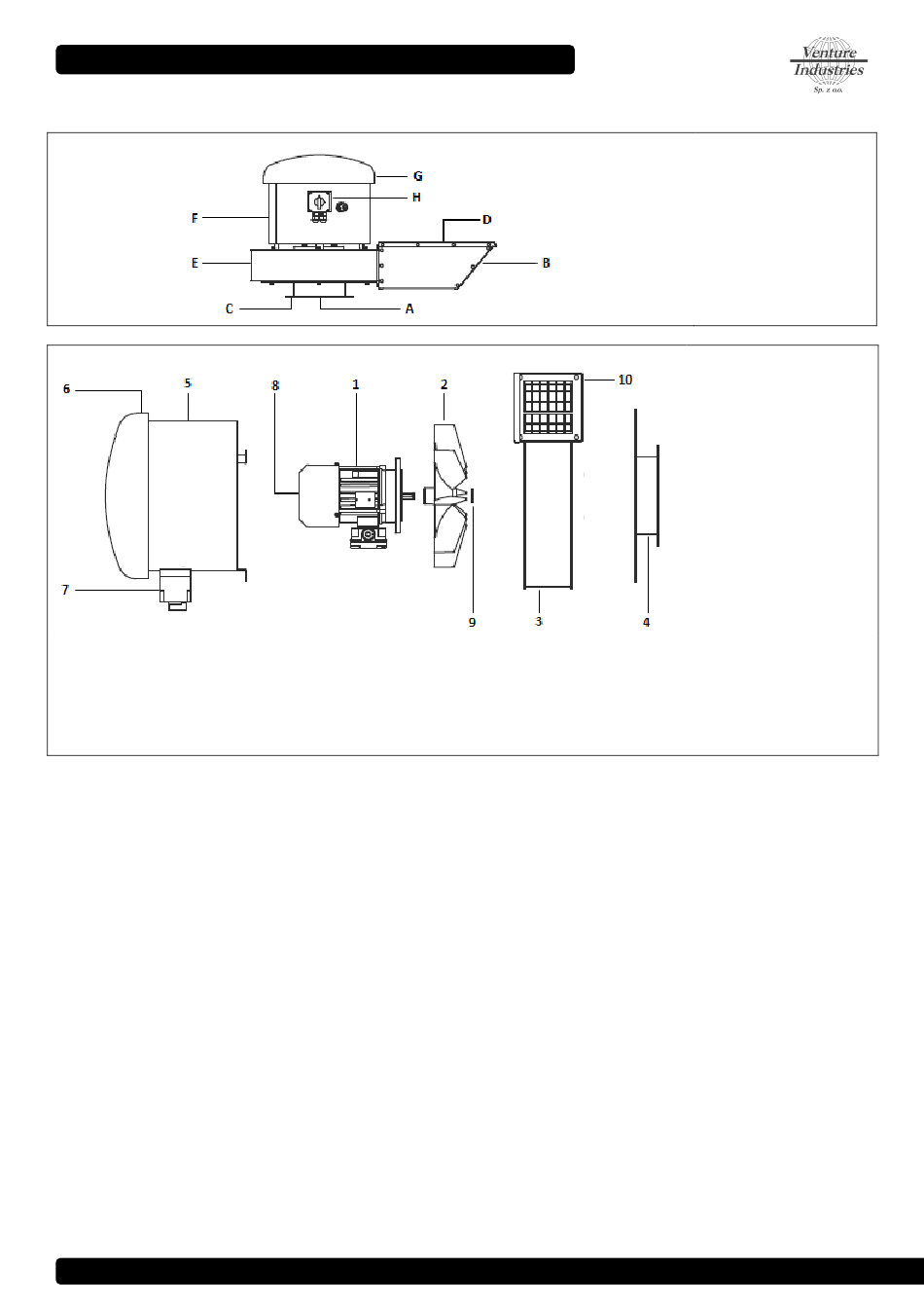

A – inlet, impeller
B - outlet
C – inlet flange
D - silencer
E – casing
F – motor cover
G – cover
H – isolating switch
1 - motor
2 - impeller
3 – casing
4 – inlet plate
5 – motor cover
6 – cover
7 – isolating switch
8 – motor cooling impeller
9 – bushing
10 - silencer
11 – connection elements (not
included on diagram)
12 – electrical wires between
motor and isolating switch
(not included on diagram)
