2.2 Batteries
A battery integration drawing and wiring schematic is included in the kit supplied with the product (except the
rack and F3U).
3 Connection

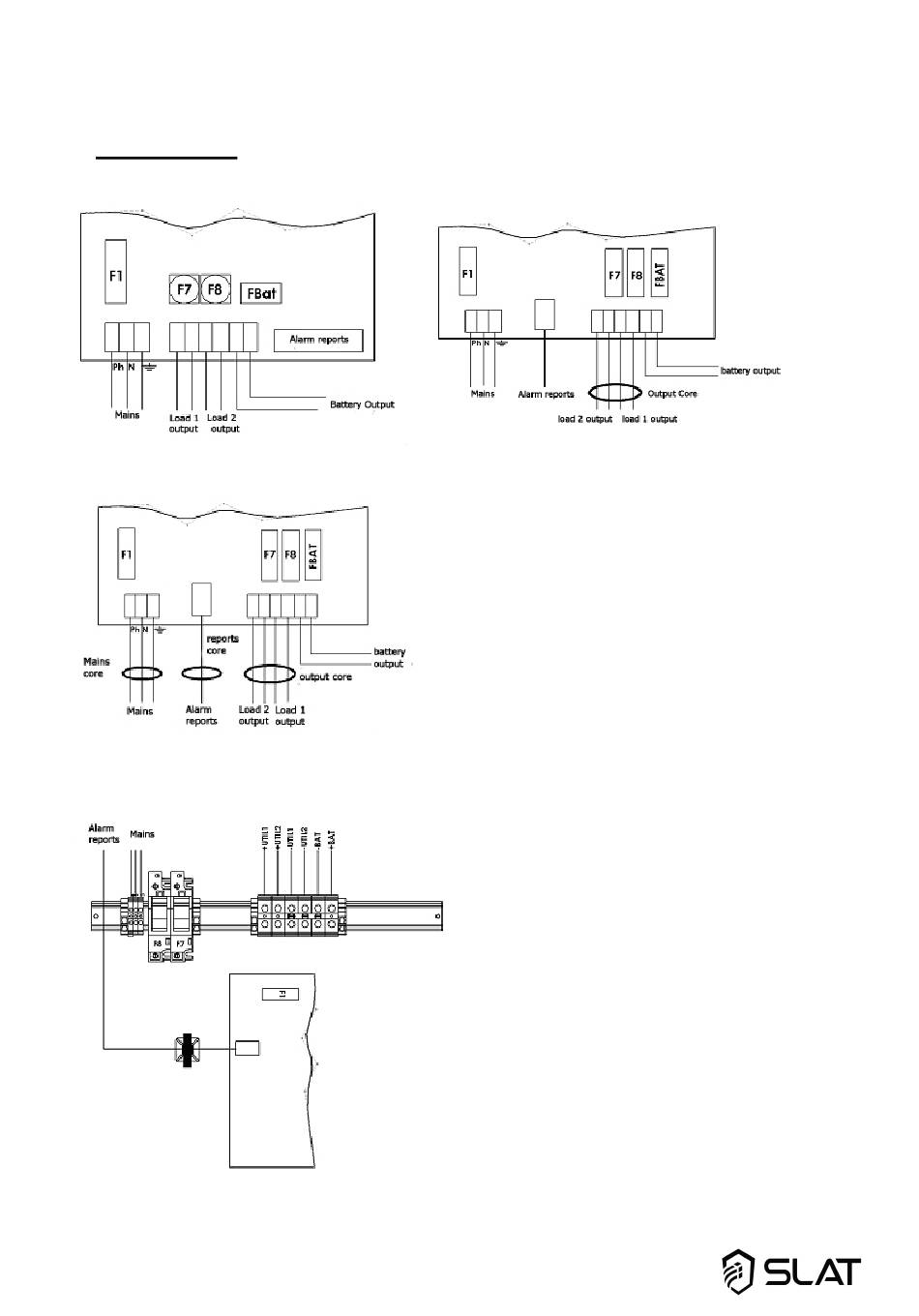

3.1 Connection diagram
75 W wiring
400-600 W wiring
Special case for the Evolution 12V48A
EV 12V48A wiring
100-300 W wiring
