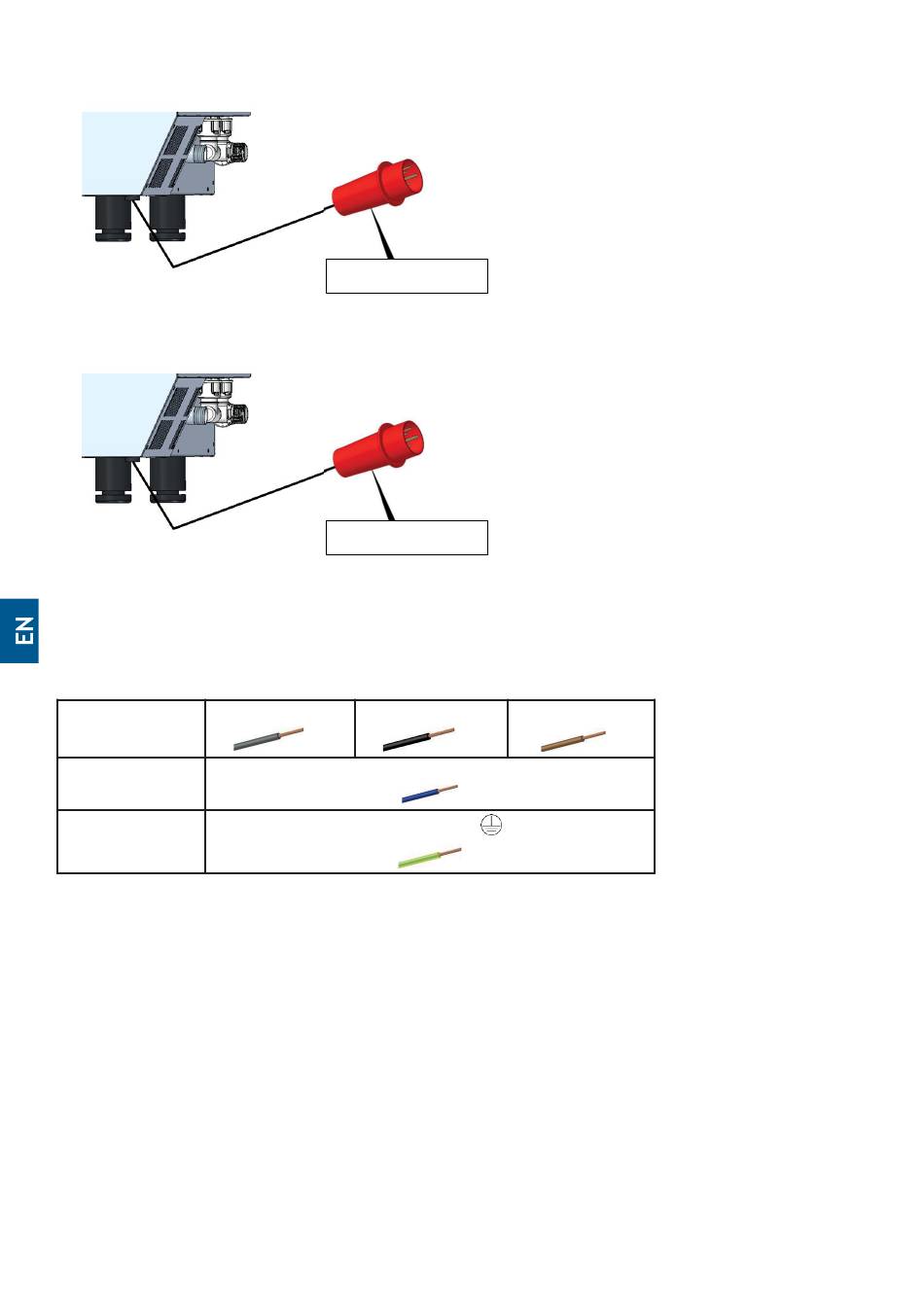

2. Three phase connection 400V connected to a three-phase power socket
3. Three phase 230V connection to a three-phase socket
In order to prevent damages from unintentional reset of the cutting thermal device, this unit should not be fed by an
external control device, such as a timer, or be connected to a circuit whose supply is regularly interrupted.
An own power supply line protected by an adequately-sized circuit breaker switch and a fixed supply connection is recommen-
ded to connect the units.
Observe the colour code of cables. Inappropriate connection may damage the unit.
COLOUR CODE:
Grey (L1)
PHASES
NEUTRAL
GROUNDING
2. Water inlet
The use of an anti-lime filter at the water supply inlet and a check valve is recommended. The oven has a ¾ connection for water
inlet.
Besides, installing a "digimeter" or digital instrument for measuring the litres of water consumed by the oven is recommended.
In this way, you will know when the filter needs be replaced.
Important: Before connecting the water supply, check that there are no residues in the pipe. The pressure of the incoming water
should range between 1 and 3 bar, with temperature not higher than 30 ºC. If pressure is higher than these values, a pressure
reducer at the inlet should be installed.
3. Draining connection
• The oven draining connection should be trolleyried out with discharge pipes ensuring thermal stability, the oven gases may
reach high temperatures (85-95ºC).
• It is recommended to connect the oven draining pipe to a syphon to avoid vapour coming out from the oven. This pipe must
be inclined 4% minimum to ensure appropriate operation.
• The draining pipe diameter should NOT be smaller than the draining connection.
• Being specific for each unit. Otherwise, check that the main conduit is dimensioned to ensure the correct flow and
without obstacles.
• Having no pinching.
.
BRAK W ZESTAWIE
NICHT MITGELIEFERTES MATERIAL
MATERIAL NOT SUPPLIED
.
BRAK W ZESTAWIE
NICHT MITGELIEFERTES MATERIAL
MATERIAL NOT SUPPLIED
Black (L2)
Blue (N)
Yellow /Green
Brown (L3)
