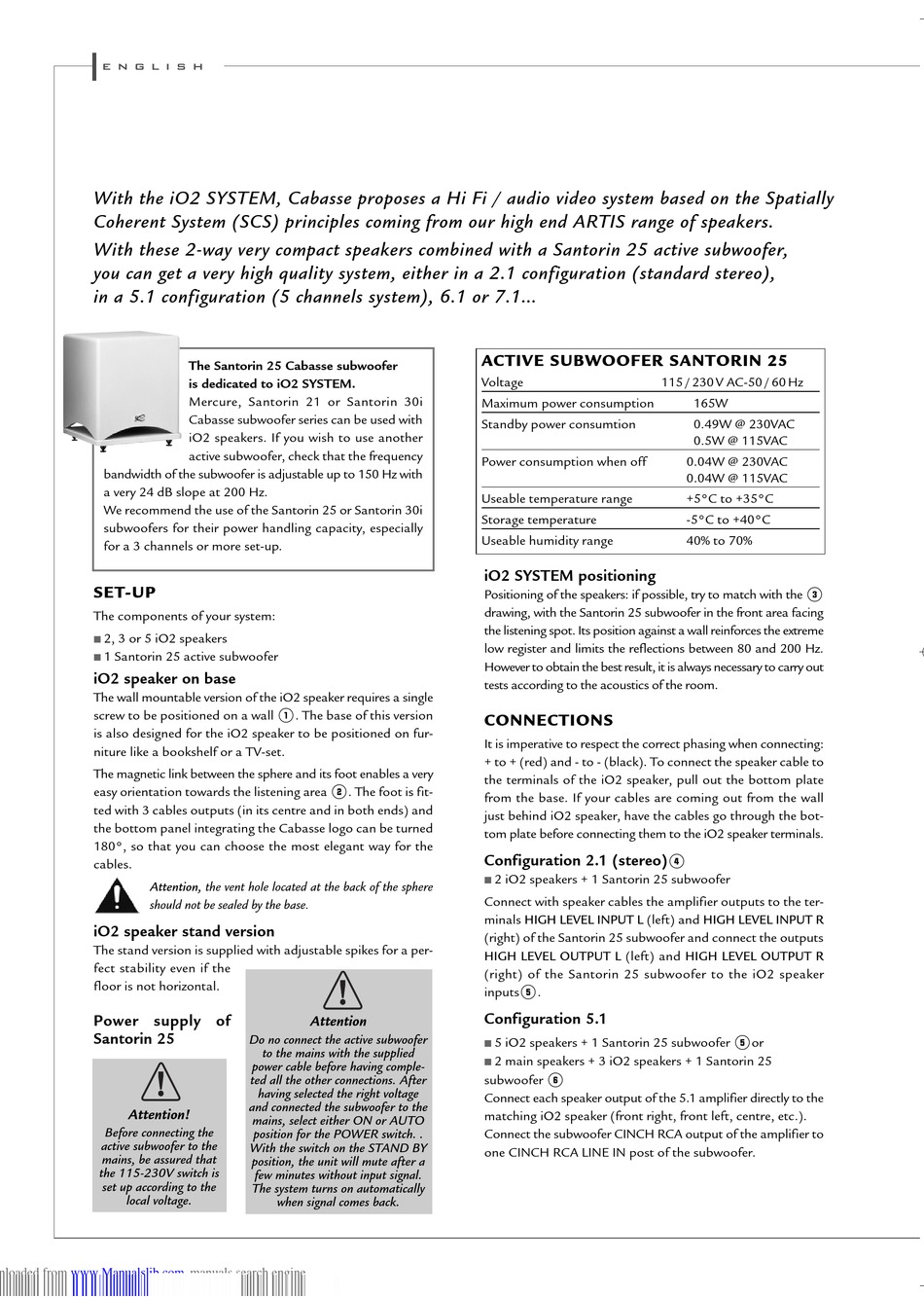

Cabasse IO2 Betriebsanleitung Seite 10

e n g l i s h
With the iO2 SYSTEM, Cabasse proposes a Hi Fi / audio video system based on the Spatially
Coherent System (SCS) principles coming from our high end ARTIS range of speakers.
With these 2-way very compact speakers combined with a Santorin 25 active subwoofer,
you can get a very high quality system, either in a 2.1 configuration (standard stereo),
in a 5.1 configuration (5 channels system), 6.1 or 7.1...
The Santorin 25 Cabasse subwoofer
is dedicated to iO2 SYSTEM.
Mercure, Santorin 21 or Santorin 30i
Cabasse subwoofer series can be used with
iO2 speakers. If you wish to use another
active subwoofer, check that the frequency
bandwidth of the subwoofer is adjustable up to 150 Hz with
a very 24 dB slope at 200 Hz.
We recommend the use of the Santorin 25 or Santorin 30i
subwoofers for their power handling capacity, especially
for a 3 channels or more set-up.
SET-UP
The components of your system:
2, 3 or 5 iO2 speakers
1 Santorin 25 active subwoofer
iO2 speaker on base
The wall mountable version of the iO2 speaker requires a single
screw to be positioned on a wall
is also designed for the iO2 speaker to be positioned on fur-
niture like a bookshelf or a TV-set.
The magnetic link between the sphere and its foot enables a very
easy orientation towards the listening area
ted with 3 cables outputs (in its centre and in both ends) and
the bottom panel integrating the Cabasse logo can be turned
180°, so that you can choose the most elegant way for the
cables.
Attention, the vent hole located at the back of the sphere
should not be sealed by the base.
iO2 speaker stand version
The stand version is supplied with adjustable spikes for a per-
fect stability even if the
floor is not horizontal.
Power supply of
Santorin 25
Do no connect the active subwoofer
to the mains with the supplied
power cable before having comple-
ted all the other connections. After
having selected the right voltage
and connected the subwoofer to the
Attention
mains, select either ON or AUTO
Before connecting the
position for the POWER switch. .
active subwoofer to the
With the switch on the STAND BY
mains, be assured that
position, the unit will mute after a
the 115-230V switch is
few minutes without input signal.
set up according to the
The system turns on automatically
local voltage.
. The base of this version
2
. The foot is fit-
Attention
when signal comes back.
ACTIVE SUBWOOFER SANTORIN 25
Voltage
Maximum power consumption
Standby power consumtion
Power consumption when off
Useable temperature range
Storage temperature
Useable humidity range
iO2 SYSTEM positioning
Positioning of the speakers: if possible, try to match with the
drawing, with the Santorin 25 subwoofer in the front area facing
the listening spot. Its position against a wall reinforces the extreme
low register and limits the reflections between 80 and 200 Hz.
However to obtain the best result, it is always necessary to carry out
tests according to the acoustics of the room.
CONNECTIONS
It is imperative to respect the correct phasing when connecting:
+ to + (red) and - to - (black). To connect the speaker cable to
the terminals of the iO2 speaker, pull out the bottom plate
from the base. If your cables are coming out from the wall
just behind iO2 speaker, have the cables go through the bot-
tom plate before connecting them to the iO2 speaker terminals.
Configuration 2.1 (stereo)
2 iO2 speakers + 1 Santorin 25 subwoofer
Connect with speaker cables the amplifier outputs to the ter-
minals HIGH LEVEL INPUT L (left) and HIGH LEVEL INPUT R
(right) of the Santorin 25 subwoofer and connect the outputs
HIGH LEVEL OUTPUT L (left) and HIGH LEVEL OUTPUT R
(right) of the Santorin 25 subwoofer to the iO2 speaker
5
inputs .
Configuration 5.1
5 iO2 speakers + 1 Santorin 25 subwoofer
2 main speakers + 3 iO2 speakers + 1 Santorin 25
6
subwoofer
Connect each speaker output of the 5.1 amplifier directly to the
matching iO2 speaker (front right, front left, centre, etc.).
Connect the subwoofer CINCH RCA output of the amplifier to
one CINCH RCA LINE IN post of the subwoofer.
115 / 230 V AC-50 / 60 Hz
165W
0.49W @ 230VAC
0.5W @ 115VAC
0.04W @ 230VAC
0.04W @ 115VAC
+5°C to +35°C
-5°C to +40°C
40% to 70%
3
4
5
or
