4.2 Extension set for vertical roof integration

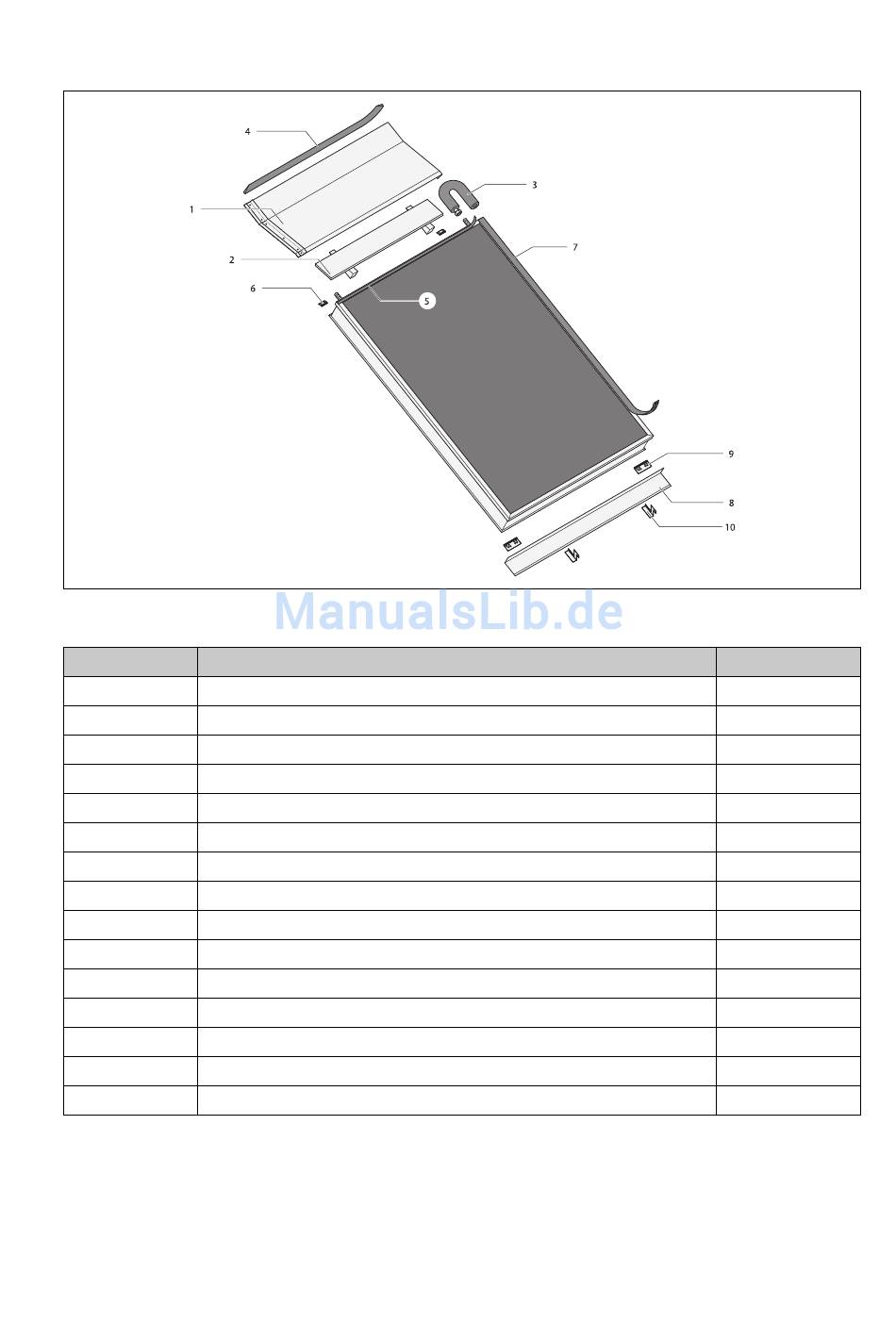

Extension set for roof integration, item no. 136 12 94 (collectors are not included)
Pos.
Components: Extension set for roof integration
1 Sheet metal cover, top
2 Wooden support
3 Collector coupling hose
4 Foam rubber sealing tape (wedge-shaped)
5 Cellular rubber sealing tape
6 Collector bracket, top
7 Silicone T-profile
8 Metal sheet, bottom
9 Collector bracket, bottom
10 Sheet metal clamp, bottom
Seal 1/2" for connections
Clout nail
Dry wall screw 4 x 35
Dry wall screw 5 x 120
Plumber sealing screw 4.5 x 25
Number per set
1
1
1
1
1
2
1
1
2
2
2
10
12
2
2
19
