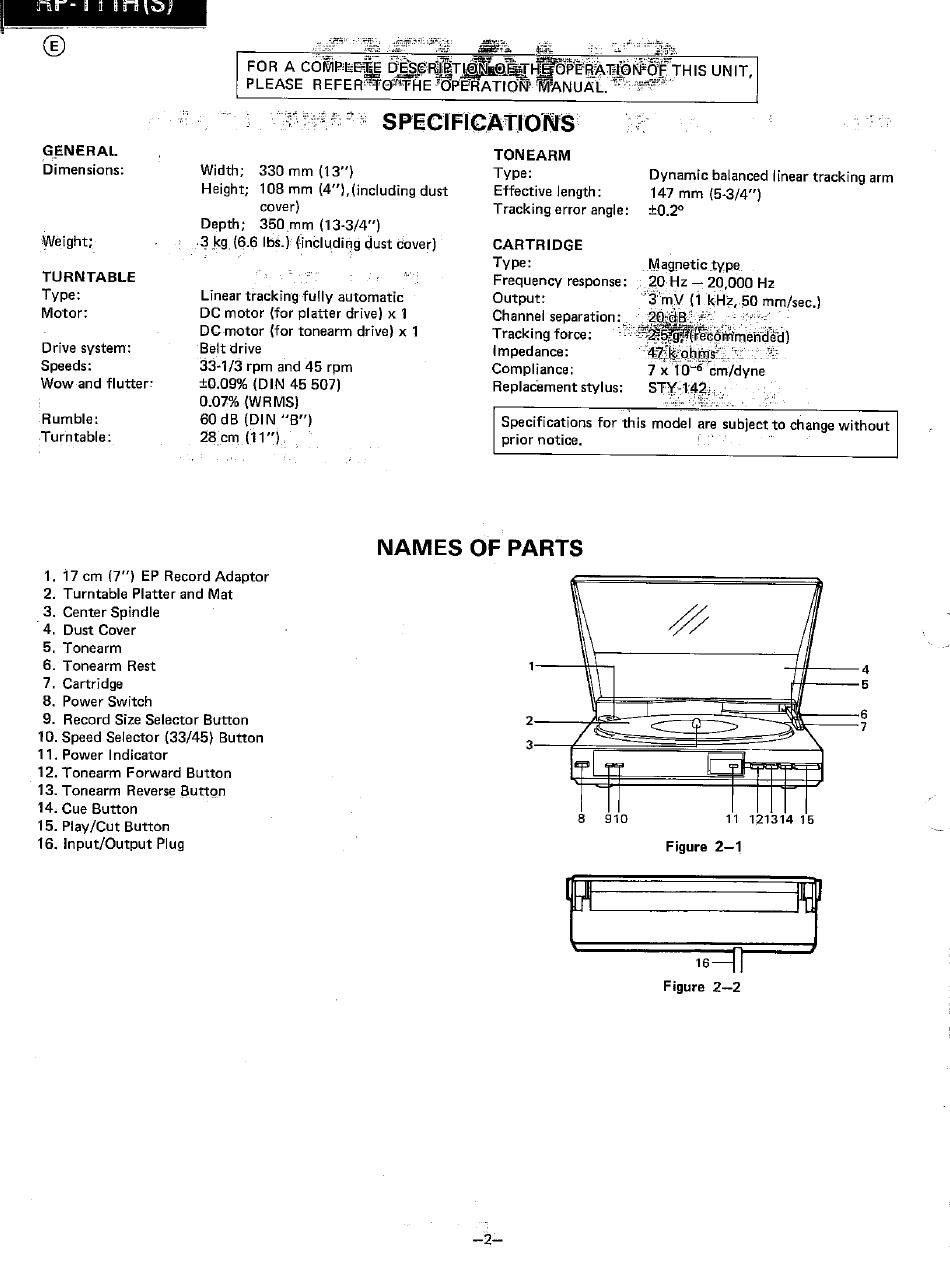

Sharp RP-111H Serviceanleitung Seite 2

GENERAL
Dimensions:
Width;
Height;
Depth;
Weight; .3_kg (6.6lbs.y(includiqgdustcover)
TURNTABLE
Type:
Linear tracking fully automatic
Motor: DC motor (for platter drive) x I
DC motor (for tonearm drive) x I
Drive system: Belt
Speeds: 33-1/3 rpm and 45 rpm
Wow and flutter:
0.07% (WRMS)
Rumble: 60 dB (DIN
Turntable: 28 cm (11")
17 cm (7") EP Record Adaptor
I.
2. Turntable Platter and Mat
Center Spindle
3.
4.
Dust Cover
5. Tonearm
6. Tonearm Rest
7.
Cartridge
8. Power Switch
9.
Record Size Selector Button
10. Speed Selector (33/45) Button
11. Power Indicator
12. Tonearm Forward Button
13. Tonearm Reverse Button
14, Cue Button
15. Play/Cut Button
16. Input/Output Plug
FOR ACOWIP:ee É
PLEASE
SPECIFICATIONS
330 mm (13")
108 mm (4"), (including dust
cover)
350 mm (13-3/4")
drive
(DIN 45 507)
NAMES
•MANUAL.
TONEARM
Type:
Effective length:
Tracking error angle:
±0.20
CARTRIDGE
Type:
Magnetic type
Frequency response:
20 Hz — 20,000 Hz
Output: 3'mV (I kH2,50 mm/sec.)
Channel separation:
Tracking force:
Impedance:
47fO'0hÉns%
7 x 10-öcm/dyne
Compliance:
Replacement stylus:
STY„T42J
Specifications for this model are subjectto changewithout
prior notice.
OF PARTS
1
2
3
8 910
—2—
THIS UNIT,
Dynamic balanced linear tracking arm
147 mm (5-3/4")
11 121314 15
Figure 2—1
16
Figure 2—2
4
5
6
7
