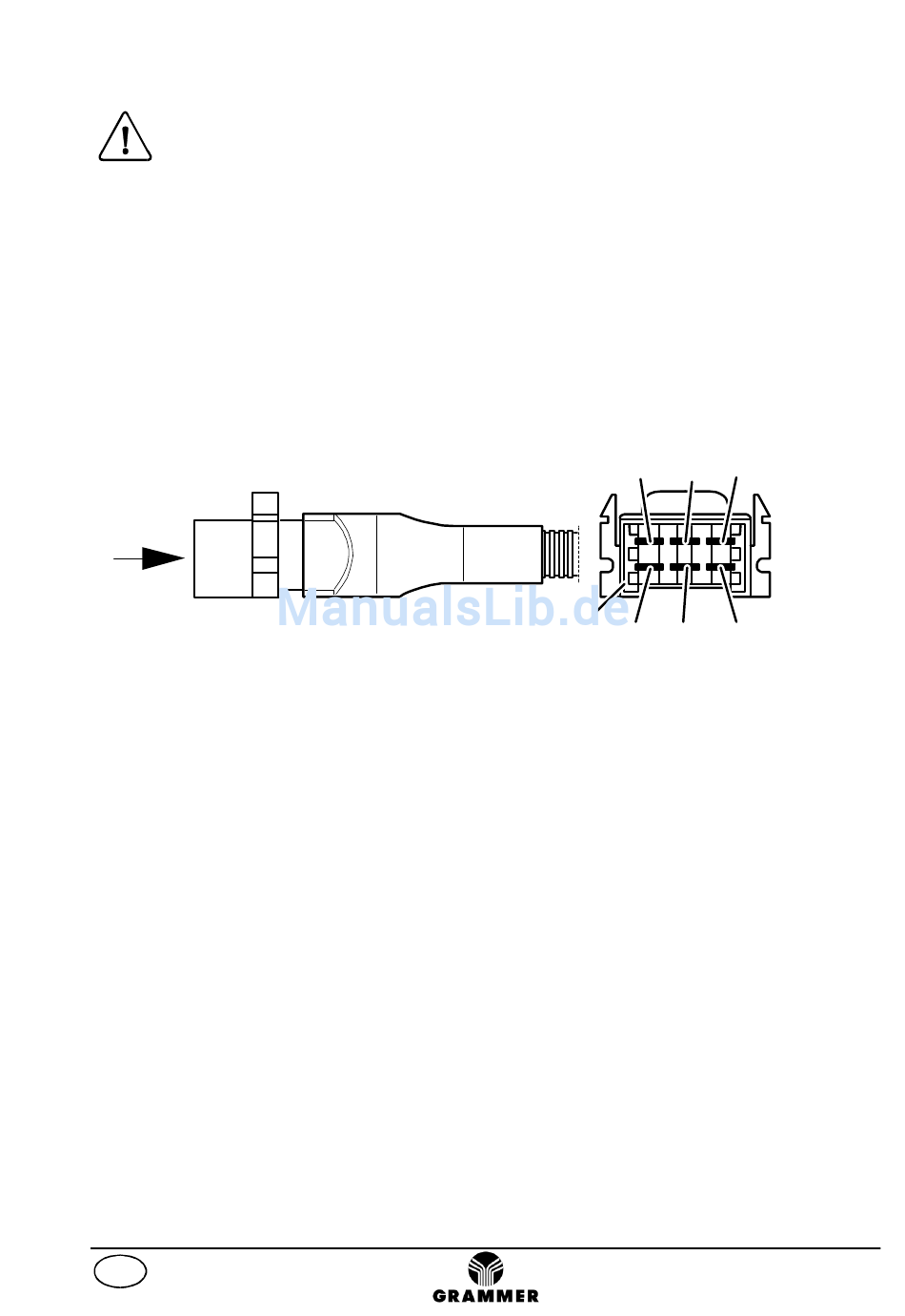

Cable assignment of the connector plug
Attention:
Absolutely observe correct polarity when connecting the wires of the seat connecting cable!
Power supply red: positive 12 V
black: negative
Before installation, check the fuse protection of the seat and compare it with the technical
data of the vehicle.
Note:
When doing the connection to the fuse box, make sure that the fuse of the selected electric
circuit does not exceed the amperage prescribed for the seat and the cable harness.
X
Cable colours:
1 > yellow
2 > red
3 > white
4 > green
5 > black
6 > blue

Guarantee and liability

GRAMMER AG does not disclaim any guarantee or liability for damage resulting from
• • • •
incorrect assembly, use or repair of the seats.
Further details on the guarantee granted by GRAMMER AG are stated in your contractual
• • • •
documents (see invoice or delivery note). Guarantee claims against GRAMMER AG
beyond the guarantee obligations described there are excluded.
GB
X
Cable assignments:
3 - 1 > make contact seat occupancy detection
system
3 - 4 > break contact seat occupancy detection
system
3 - 6 > belt buckle switch
2 - 5 > seat heater / compressor
Connecting data
6 5 4
3 2 1
23
