Important: When you have eaten,
drunken alcohol or smoked a cigarette,
wait at least 20 minutes before starting
the measurement. ACE Technik warns:
Even if you get a result with the me-
aning „Safe range", you should not
drive after having consumed alcohol
or do any other activities which are
badly affected by the consumption of
alcohol.

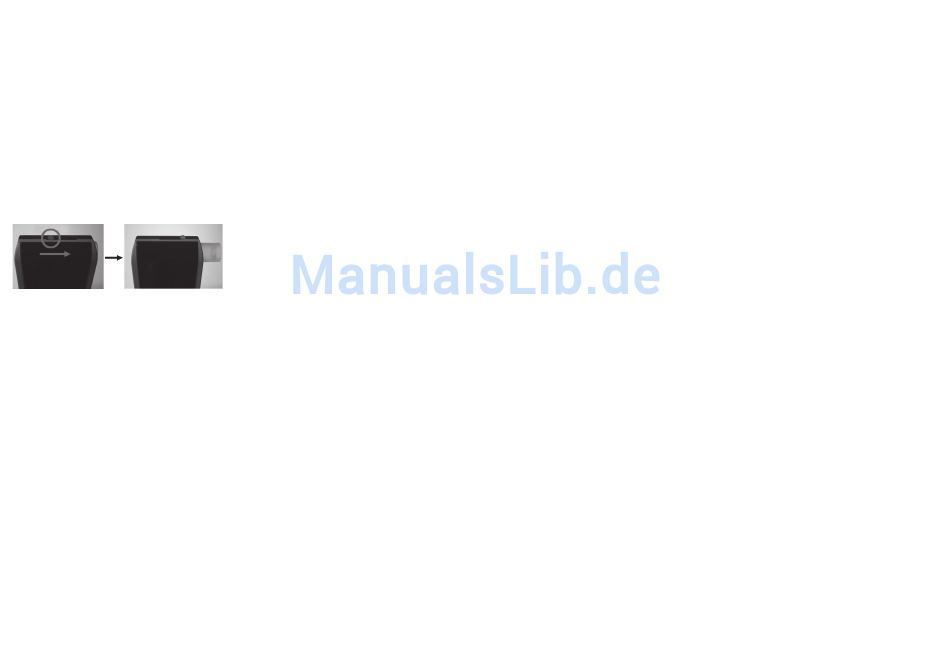

Usage of personal mouthpiece:
If you push the hook aside like shown
on the right, you can use your personal
mouthpiece.
Flow
The breath sample was not strong
enough for measurement. After warming
automatically, please blow strong and
steady during sampling.
bAt
The battery power is low. Please
replace the batteries.
CAL
If you test over 1,000 tests, ACE Neo will
display "CAL" sign for 3 seconds when
warming up for test. This "CAL" sign will
be provided the appropriate time for ca-
libration. Please send the device to ACE
Technik for a calibration service.
Out
The device is turning off („Out" is shown
during approx. 5 seconds on the display,
then the device switches itself off
automatically). OUT also appears if you
don`t use the device during approx. 30
seconds or if you press continuously the
start button for approx. 3 seconds.
P
The device is in passive mode. „P"
appears on the display if you turn on
the device and push the start button
afterwards again. The passive mode can
be used when a person is too drunk to
do a test by using a mouthpiece.
As soon as „P" appears on the display,
the test person must briefly exhale in the
direction where normally the mouthpiece
is inserted and at the same time you
have to push the start button perma-
nently for a few seconds until you hear a
„tictac tone". Now the device evaluates
the test and afterwards you can see
either „P" or „F" in the display.
P = Pass (person is not drunken)
F = Fail (person is drunken and must
not drive)
Default values (not changeable):
P < 0,20 per mille and
F > = 0,20 per mille

Technical data:

Statement of the BAC: 0,00 ~ 4,00 ‰
(fixed basic setting)
Accuracy: +/- 0,05 ‰
Warm-up time: 3 sec up to max. 4 min
Response time: Within 10 seconds
Sensor: Fuel cell sensor
Mouthpieces: ACE mouthpieces
(each hygienic and separately packaged)
Energy supply: 2 pieces AAA alkaline
batteries (1.5 V)
Dimensions of the device: 44 x 100 x 15
mm (width x height x thickness)
Weight: 66 g (including batteries)
Ambient conditions: Operation: 5 - 40° C
Storage: 0 - 50° C
Calibration: Every 12 months or after
1000 tests
Warranty and liability:
Warranty: The ACE Handels- und Entwicklungs
GmbH will give a warranty of two years after
purchase for material and processing errors
for the product, to which this warranty and
liability declaration is attached, in all versions
and designations; a warranty of one year for the
sensor. This warranty includes the electronics as
well as the casing or the sensor without sampling
components. Components that are inevitably
destroyed upon effectiveness (such as fuses)
are not part of this warranty. The warranty is
valid from the date of delivery or from the date
of first activation (always the shorter period), if
this is not stated otherwise in the accompanying
literature of the product by ACE Handels- und
Entwicklungs GmbH. Limitation of warranty
and liability:
Product description: The ACE Handels- und
Entwicklungs GmbH rejects any further expressly
stated or implied warranty, including the marke-
tability and suitability for a determined purpose.
This warranty especially excludes calibration.
After changing the sensor, calibration is absolu-
tely necessary. When an exchange of the sensor
or a calibration is necessary for a product, the
user may receive a estimate of costs. Should the
user refuse the estimate, the ACE Handels- und
Entwicklungs GmbH will send the product back
unrepaired / uncalibrated and the product will be
labelled accordingly.
Should the product not fulfil the warranty, the
claim of the buyer and the obligations of the
ACE Handels- und Entwicklungs GmbH are
limited exclusively and at the discretion of the
ACE Handels- und Entwicklungs GmbH to an
exchange or repair of the affected goods or to
a reimbursement of the purchasing price for the
faulty goods.
Application restriction: The ACE Handels- und
Entwicklungs GmbH is on no account liable
for additional damage, incidental damage or
consequential damage such as, among others,
lost profit and downtime that result from selling,
producing or using products, which are part of
this application restriction. This is independent of
any claims, such as from contracts, negligence
or other culpable actions. The product, which is
accompanied by this warranty and liability decla-
ration, no matter in which version or designation,
can especially not be used legally binding to de-
termine capability to operate vehicles or to exe-
cute action that could lead to damage to oneself
or others under the influence of alcohol. The
thorough check for damage of all products upon
receipt, a calibration suitable for the given use
by the buyer and the proper use, maintenance
and service according to the instructions of the
accompanying product literature by the ACE
Handels- und Entwicklungs GmbH are manda-
tory prerequisites for this warranty. Maintenance
and service work by non-qualified persons, as
well as using non-approved consumables or
spare parts lead to an expiry of this warranty.
As for all technically challenging products, it is
a fundamental prerequisite and mandatory for
the warranty by ACE Handels- und Entwicklungs
GmbH, that all users of these product are familiar
with the properties and restrictions of the product
as stated in the respective literature.
Advice restriction: The buyer confirms that he
has checked the intended use and suitability of
purchased goods for any purpose in sole respon-
sibility. Between the two parties it is expressly
agreed upon that all technical or other advice
by ACE Handels- und Entwicklungs GmbH
regarding use of the goods or services is free of
charge and was made with to the exclusive risk
of the buyer. Therefore no obligation or liability
can arise to the ACE Handels- und Entwicklungs
GmbH from any recommendation or their result.
