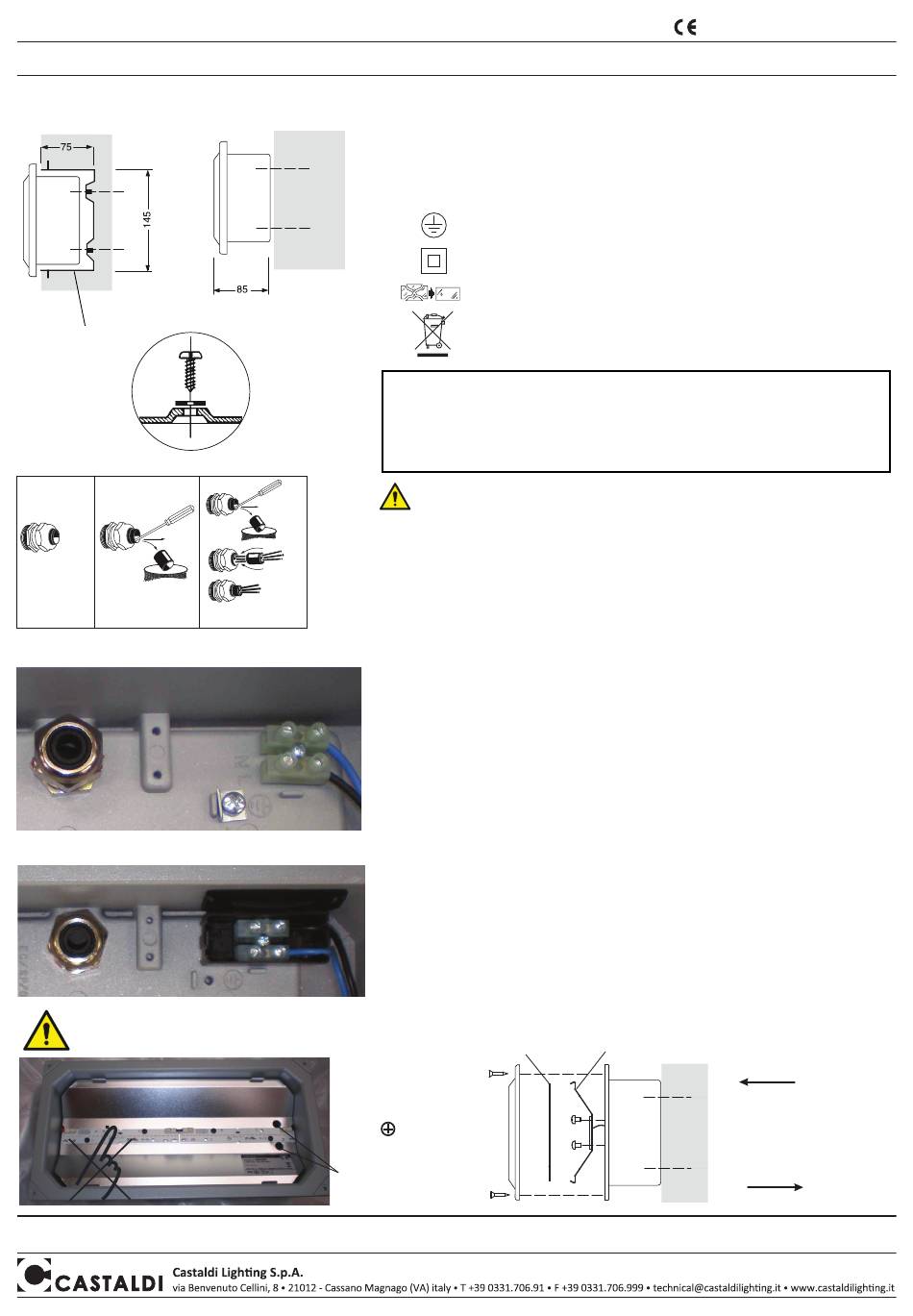

MI/1413 - 11 ed. ENG - 11/2016
installation and maintenace sheet
NB: These assembly instructions must be given to end users for correct maintenance and so that they know how to change the bulb. The appliance must not be tampered with
or transformed and it must be installed and used as supplied and in compliance with the National Rules on Installations. Any non-compliant installations will invalidate all forms
of guarantee. THE COMPANY CANNOT BE HELD RESPONSIBLE FOR DAMAGE CAUSED BY INCORRECT ASSEMBLY.
A
cod. D08/CI
(pict.2)
a b
Ø min 7,5 mm
Ø min 8,5 mm
Ø max 8,5 mm Ø max 12 mm
CLASS I
(pict.3)
CLASS II
(pict.4)
CAUTION: HANDLE THE
REFLECTOR AND LED BOARD
WITH CARE
Quality control: In case of complaint please get in touch with our company or its sales organization. Please give the number of your order as well as the serial
number that recognizes the fixture.
(pict.1)
c
INSTALLATION:
• for outdoor locations it is mandatory to use (EN 60598-1, EN 50565-2) a three core (two-core
Ø min 2,5 mm
Ø max 3,5 mm
• perform wiring operations according to the version and observe the polarity (pict.3-pict.4).
•
• to guarantee the perfect watertightness it is necessary to put the supplied gaskets
• after inserting the lamp or connecting the LED, close the fixture while making sure that
MAINTENANCE:
• it is essential to do a frequent cleaning of the glass and of the outer surface of the fixture
LAMP VERSION:
• respect fully type and power of lamp as shown on the label. Read carefully the
LED VERSION:
The light source contained in this device must only be replaced by the manufacturer
or its assistance service or by an equally qualified person.
(pict.5)
screw
to be used to
secure the reflector
to the lamp body
Features - meaning of the symbols shown on the label:
suitable for interior and exterior applications - masonry recessed or projected
Totally dust proof.
IP65
Protected against water jets from any directions.
Class I
Version
Class II
Version
replace the damaged protective glass screens
getting rid of as urban waste forbidden
separate collection is mandatory when the product
is at the end of its life
N.B. - for flush mounting in concrete or mansonry the moulded
form "CI" is mandatory (pict. A).
1) Place the form in the falsework of the mould in such a way that its outer edge
is flush with the edge of the finished wall.
2) Place the protective tube of the electric cable in the mould.
3) Connect the unit following the instructions enclosed into the unit itselself.
ATTENTION: Switch-off the power supply before
any installation and maintenance operations.
only forClass II version rubber cable type H07RN-F with a diameter between 7,5 and 12 mm.
PVC insulated cables or with outer PVC cover or anyhow cable different from the one
here prescribed are not allowed. Proceed as shown in pict.2 a-b for a correct coupling
cable-cable gland. Only for indoor applications independent single wires may be used.
In this evenience use the special three holes rubber to guarantee a perfect seal (pict.2-c).
connect the LED and observe the polarity; the cables must be positioned beneath
the reflector. Secure the reflector to the lamp body using the screws provided (pict.5).
on the fixing holes using 4 mm diameter screws (pict.1).
the seal is properly positioned in its housing, then tighten the screws gradually and
sequentially so as to ensure uniform tightening.
to avoid build up of mud and dirtiness resulting in dangerous overheating due to
uncorrect light and heath dissipation. Clean carefully the glass screen removing
limestone deposits by means of a scraper.
instructions of the lamp manufacturer for proper lamp use. The relamping must be done
with maximum attention avoiding to dirty the sealing gasket and its contact surface.
It is therefore necessary before opening the fixture to clean it accurately.If the gasket is
damaged, deformed or not in perfect conditions it is necessary to change it.
Opal
A
slots
1
product in compliance with the requirements
of the European Community Directories
SIMPLE INSULATION: earth required
DOUBLE INSULATION: no earth required
Reflector + LED board
C
B
C
D08 - block
A-B
OPEN
C -FASTENING
D -WIRING (pict.4)
B-A
CLOSE
