Introduction
The LED Pen is dedicated to running ATP performance verification and calibration on the MVP ICON
with firmware 5.5.0 and above.
The LED Pen provides a stable and reliable light output to guarantee consistent performance.

Important Usage Guidelines

The LED Pen has been designed for use in a laboratory or office setting.
• Performance is guaranteed for a temperature range of 18–25 °C.
• Do NOT take the luminescent rod into factory processing areas.
• Do NOT immerse the instrument body in liquid or allow liquid to enter any part of the instrument.
• Do NOT expose to high temperatures
Do NOT forcefully insert the LED Pen in luminometer. Improper orientation may result in damage to the
instrument and render it unusable.
To ensure the stability and longevity of the LED Pen, the following precautions MUST be taken:
• Do NOT expose to direct sunlight or intense artificial light before use and do NOT subject LED Pen to prolonged
light exposure.
• If the LED Pen is exposed to bright light prior to use, put it in its packaging and wait a minimum of
2 minutes before proceeding.
• Store the LED Pen in its original packaging when not in use and within temperature storage of 18–25 °C.
• Handle LED Pen carefully. Any damage or drop could affect LED Pen functioning or light emission performance.
In such case, LED Pen should not be used anymore for verification or calibration

System general use

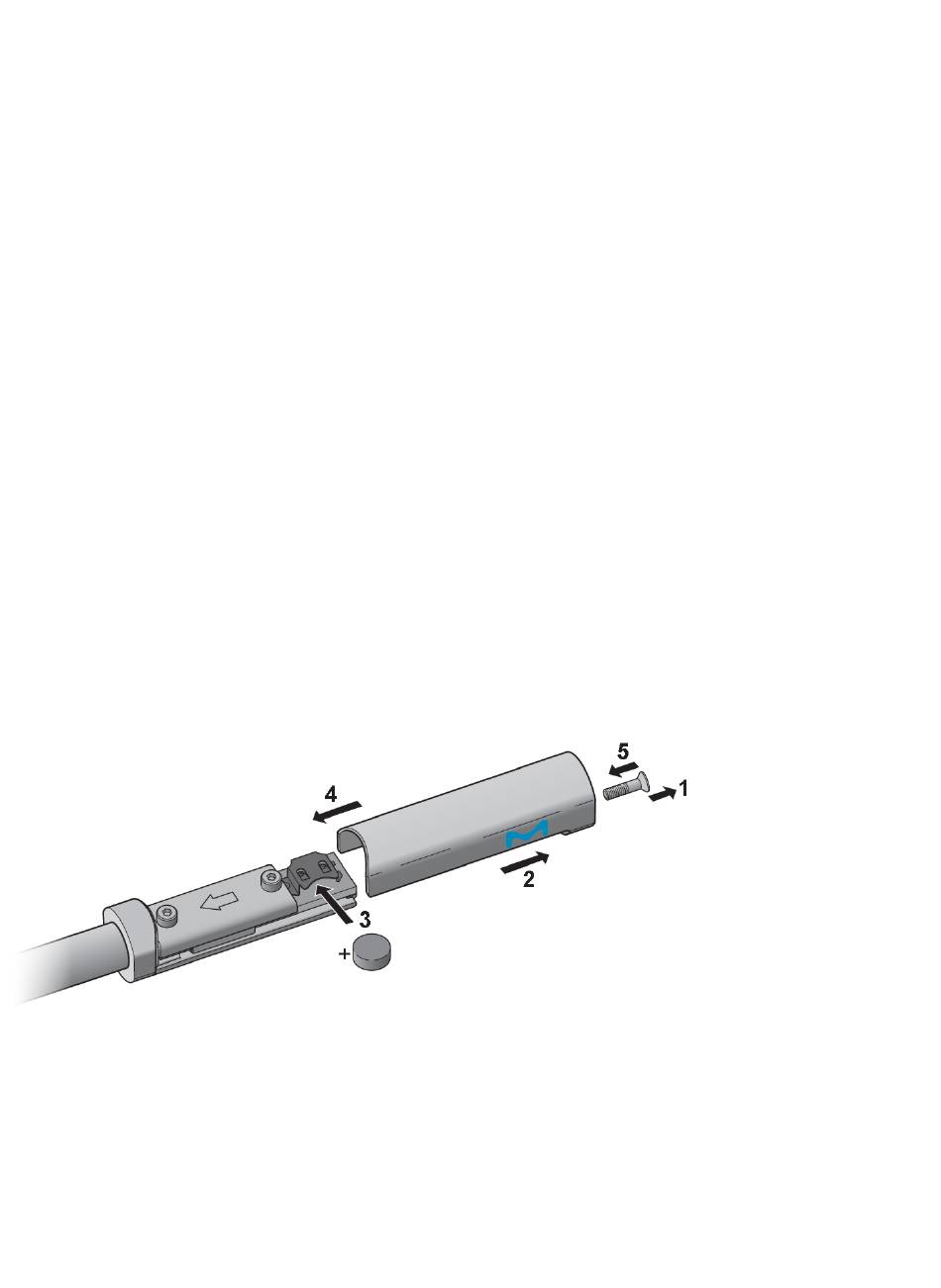

How to install the battery
ONLY SR626 or SR626W button cell shall be used with the LED Pen.
DO NOT USE other battery types that may damage the system or lead to inconsistent results.
RESPECT POLARITY when installing the button cell.
®
1. Remove the screw
2. Slide the cover
3. Insert the battery ("+" facing up)
4. Close the cover
5. Put back the screw
