Burda M1 Installations- Und Betriebs-Anleitung Seite 9

GB
Each single unit of the modular system has its own power supply system and is equipped with a cord of
1.9 m with Schuco plug.
Each module is fitted with T-brackets for wall mounting
Rated voltage 235 V / 50 Hz. Power of each modular unit is given on the rating plate of the unit.

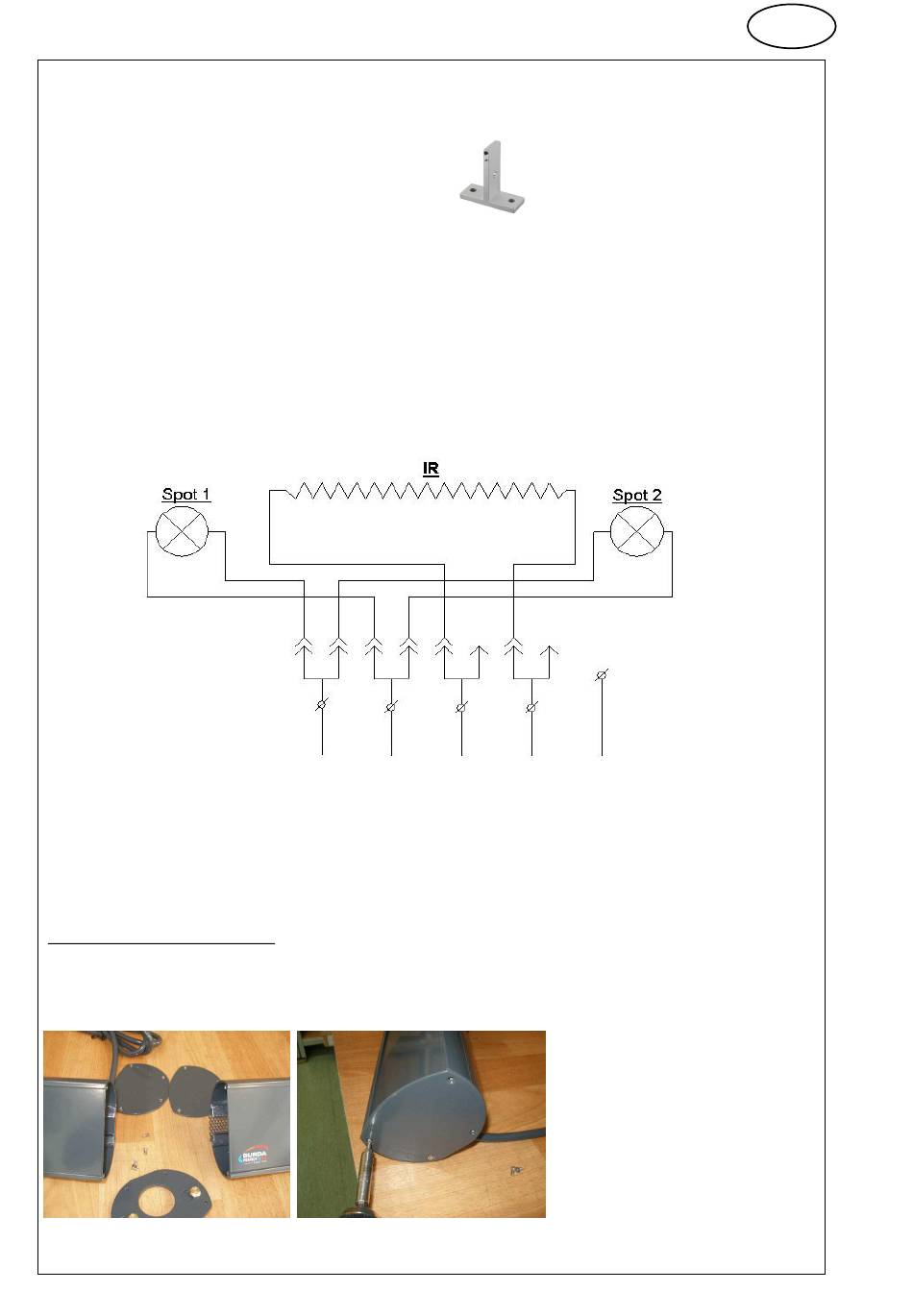

ELECTRIC DIAGRAM MURLHC2165 = M3
N1 L1 L2 N2 PE
N1 – blue,
L1 – black (SPOT 1 & SPOT 2)
N2 – grey
L2 – brown (IR QUARTZEMITTER)
PE – yellow-green
C :
ONNECTION OF SINGLE MODULES
1. Remove side covers of the modular unit with its own power supply (the side covers with their own power
supply, for connection of modular units are available at your dealer of modular units).
