GYS DRAW ALIGNER PRO Betriebsanleitung Seite 11

Operating manual
ASSEMBLY
Translation of the original
instructions
DRAW ALIGNER PRO
M12x90 screw: 1
M12 lock nut: 1
M12 washer: 2

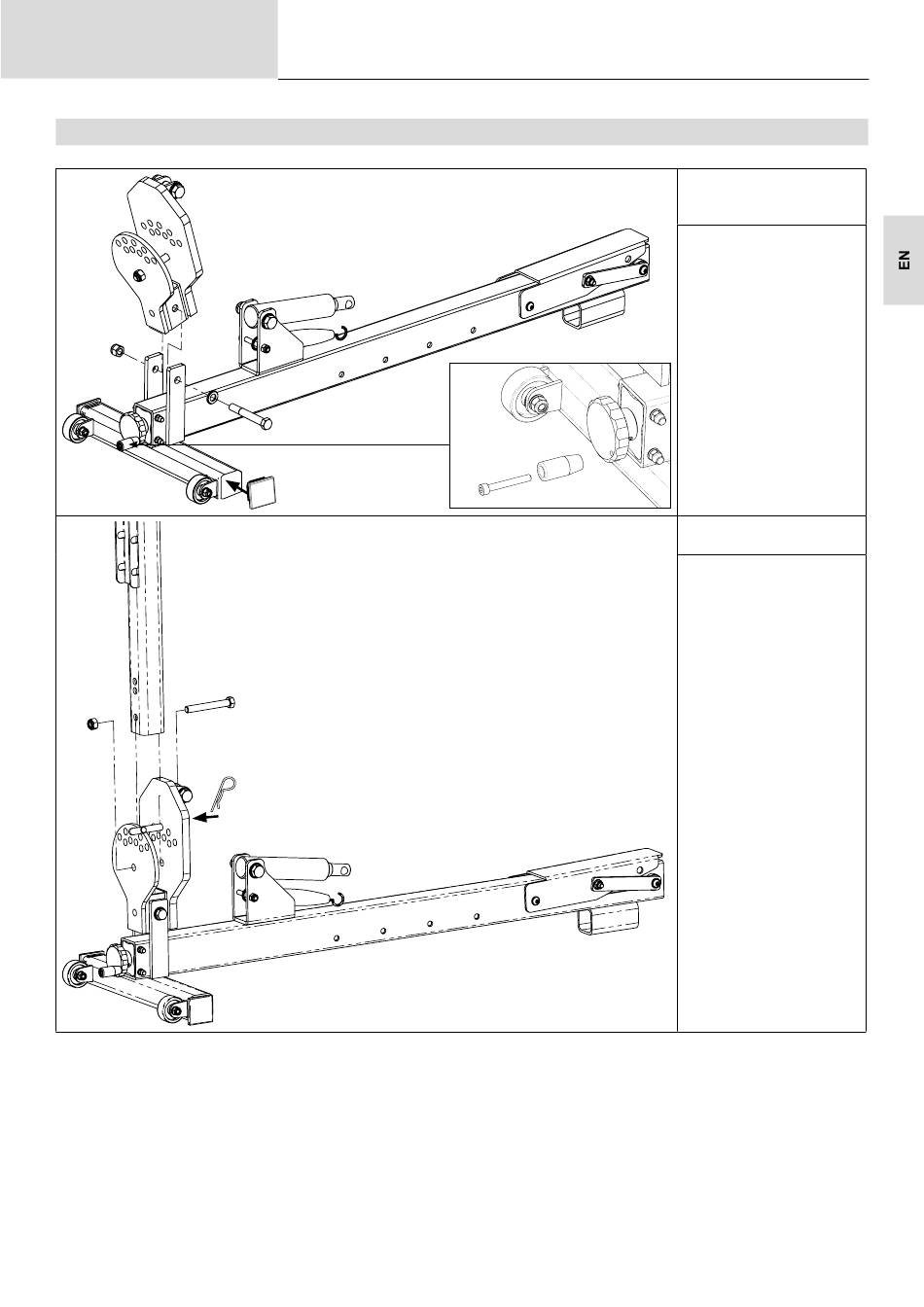

Assemble the vertical arm
joint to the horizontal part
of the screw bracket using
the M12x90 screw and its
corresponding nut.
M12x90 screw: 1
M12 lock nut: 1
Connect the vertical bar
to the vertical arm joint
using the M12x90 screw
and nut. Position the angle
adjustment pin to keep the
pole vertical.
11
