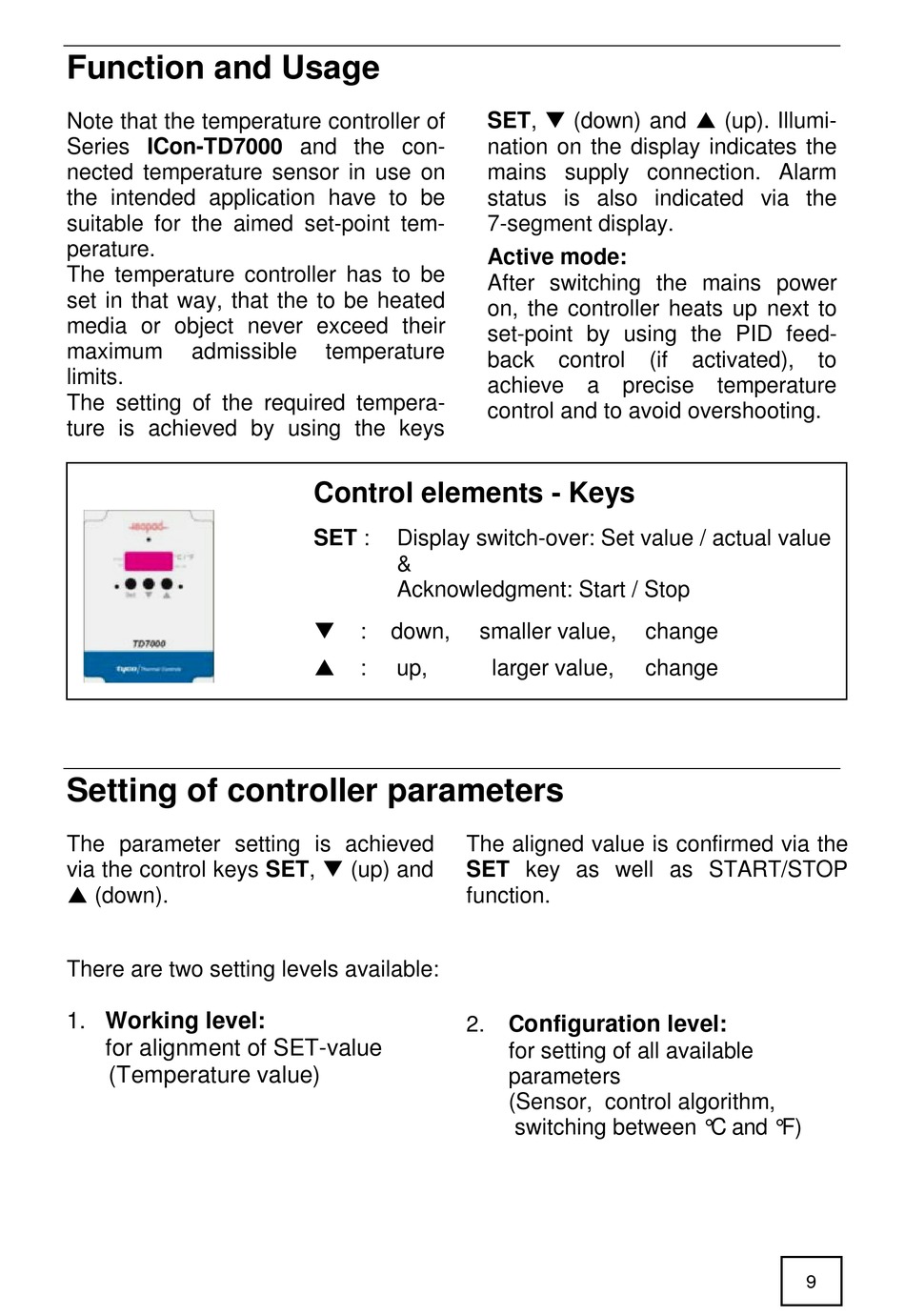

Function and Usage

Note that the temperature controller of
Series ICon-TD7000 and the con-
nected temperature sensor in use on
the intended application have to be
suitable for the aimed set-point tem-
perature.
The temperature controller has to be
set in that way, that the to be heated
media or object never exceed their
maximum admissible
limits.
The setting of the required tempera-
ture is achieved by using the keys

Setting of controller parameters

The parameter setting is achieved
via the control keys SET, q (up) and
p (down).
There are two setting levels available:
1. Working level:
for alignment of SET-value
(Temperature value)
temperature
Control elements - Keys
SET : Display switch-over: Set value / actual value
&
Acknowledgment: Start / Stop
q
: down, smaller value,
p : up,
The aligned value is confirmed via the
SET key as well as START/STOP
function.
2.
SET, q (down) and p (up). Illumi-
nation on the display indicates the
mains supply connection. Alarm
status is also indicated via the
7-segment display.
Active mode:
After switching the mains power
on, the controller heats up next to
set-point by using the PID feed-
back control (if
achieve a precise temperature
control and to avoid overshooting.
change
larger value, change
onfiguration level:
C
for setting of all available
parameters
(Sensor, control algorithm,
switching between ° C and ° F)
activated), to
