ATTENTION!
Never mishandle the safety devices for any reason.
1.9 - Work stations
The correct work station that the operator must occupy to opti-
mize the work of the sack filling machine is indicated in fig.
1.9.1.
10 - Vibrations
The vibrations that the machine transmits to the counter are not important.
2

Technical features

2.1 - Main parts

To facilitate understanding the manual the main machine parts are listed and
shown in the following fig. 2.1.1.
1. Command pedal
2. Product outlet
3. Pushbutton panel
4. Work speed adjustment tap
5. Mixture carrying cylinder
6. Solid steel structure
7. Cover
8. Cover blocking ring nuts
9. Feed cable
10

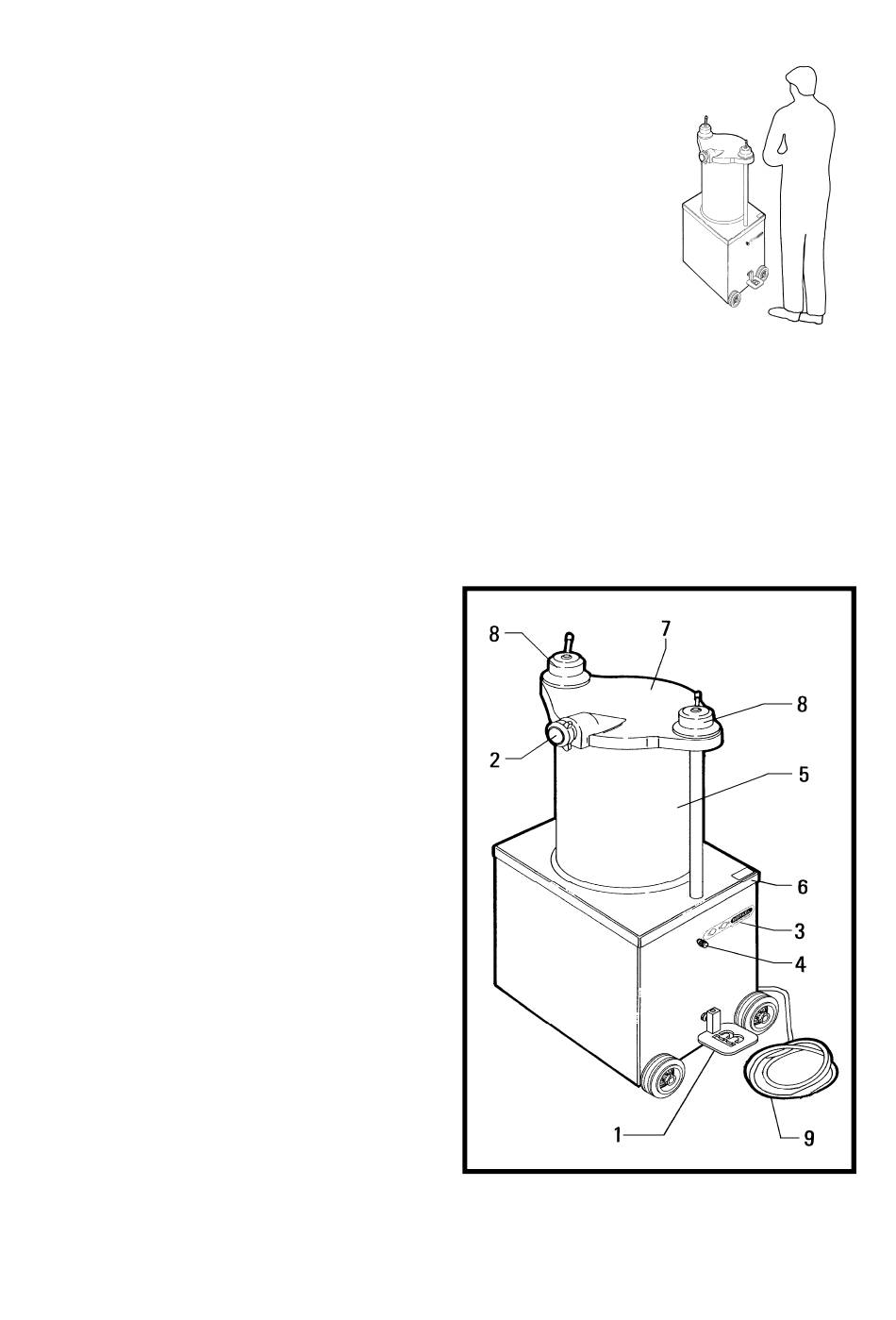

Fig. 1.9.1
Fig. 2.1.1
