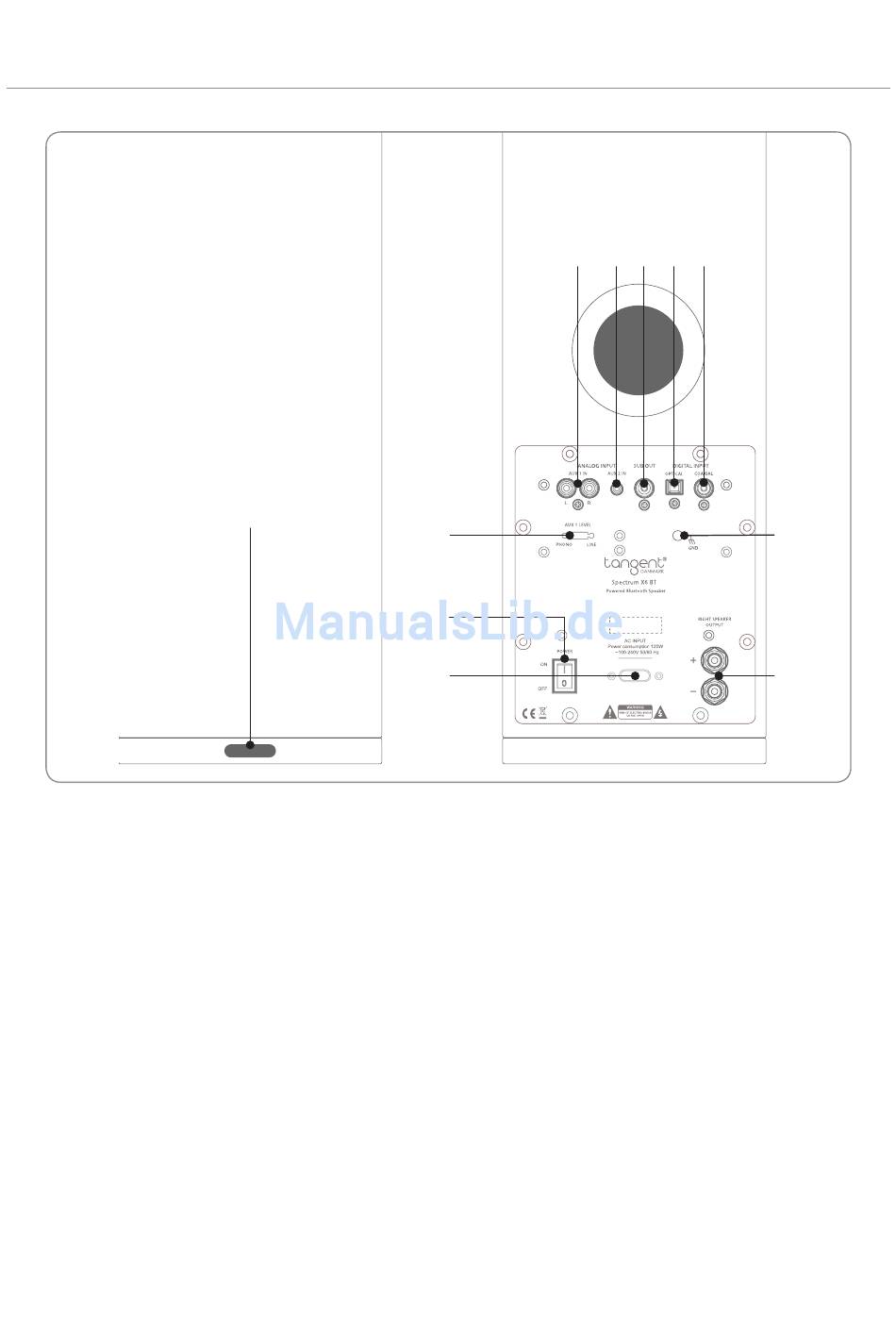

FRONT AND REAR PANEL

1. Power LED and BT detector
2. AUX. 1 input
For left / right RCA stereo plugs of
CD / DVD, TV etc.
3. AUX. 2 input
To connect 3,5 mm mini jack plug
4. SUB OUT to connect an active
subwoofer
5. Optical audio input
6. Coaxial audio input
1
2
7
8
9
7. Phono or line input selection
8. Switch for input voltage power
ON / OFF
9. Main plug power input
10. Input groundwire
11. Right channel amplifier output to
connect to the passive speaker.
3 4 5 6
10
11
