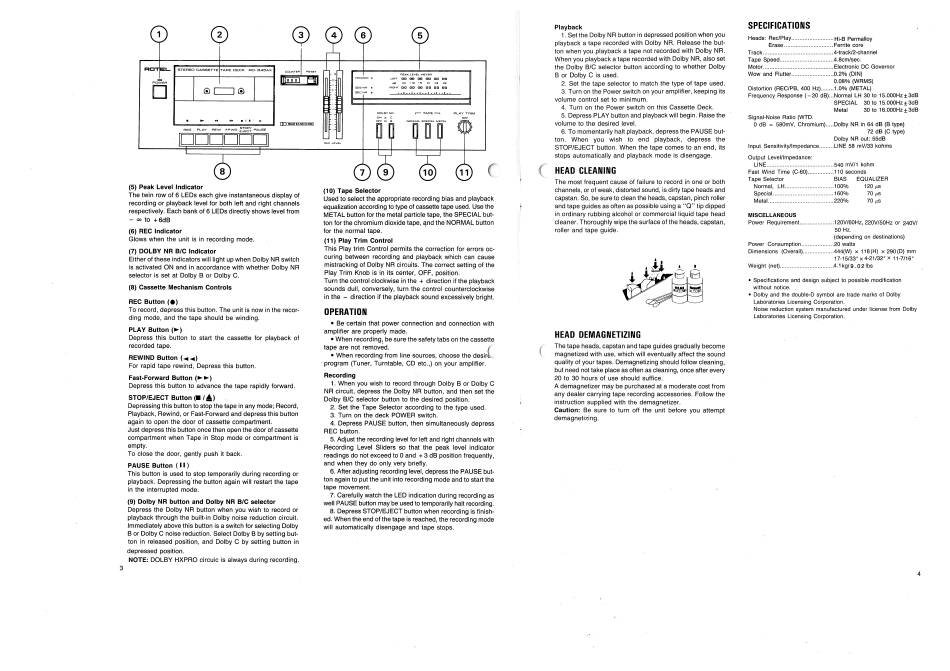

1 2 3
grevaeo CASSETTE APE DECK
powee
s Top,
. FLAY REW FFWO
euECT
8
(5) Peak Level Indicator
The twin row of 6 LEDs each give instantaneous display of
recording or playback level for both left and right channels
respectively. Each bank of 6 LEDs directly shows level from
— to +6dB
(6) REC Indicator
Glows when the unit is in recording mode.
(7) DOLBY NR BIC Indicator
Either of these indicators will light up when Dolby NR switch
is activated ON and in accordance with whether Dolby NR
selector is set at Dolby B or Dolby C.
(8) Cassette Mechanism Controls
REC Button (0)
To record, depress this button. The unit is now in the recor-
ding mode, and the tape should be winding.
PLAY Button
Depress this button to start the cassette for playback of
recorded tape.
REWIND Button
For rapid tape rewind, Depress this button.
Fast-Forward Button
Depress this button to advance the tape rapidly forward.
STOP/EJECTButton (E 14)
Depressing this button to stop the tape in any mode; Record,
Playback, Rewind, or Fast-Forward and depress this button
again to open the door of cassette compartment.
Just depress this button once then open the door of cassette
compartment when Tape in Stop mode or compartment is
empty.
To close the door, gently push it back.
PAUSE Button (11)
This button is used to stop temporarily during recording or
playback. Depressing the button again will restart the tape
in the interrupted mode.
(9) Dolby NR button and Dolby NR BIC selector
Depress the Dolby NR button when you wish to record or
playback through the built-in Dolby noise reduction circuit.
Immediately above this button is a switch for selecting Dolby
B or Dolby C noise reduction. Select Dolby B by setting but-
ton in released position, and Dolby C by setting button in
depressed position.
NOTE: DOLBY HXPRO circuic is always during recording.
3
4 6
5
ao ao oa ao
00 00 ao aa oo
7 9 10 11
(10) Tape Selector
Used to select the appropriate recording bias and playback
equalization according to type of cassette tape used. Use the
METAL button for the metal particle tape, the SPECIAL but-
ton for the chromium dioxide tape, the NORMAL button
for the normal tape.
(I I) Play Trim Control
This Play trim Control permits the correction for errors oc-
curing between recording and playbacB which can cause
mistracking of Dolby NR circuits. The correct setting of the
Play Trim Knob is in its center, OFF, position.
Turn the control clockwise in the + direction if the playback
sounds dull, conversely, turn the control counterclockwise
in the — direction if the playback sound excessively bright.
OPERATION
• Be certain that power connection and connection with
amplifier are properly made.
• When recording, be sure the safety tabs on the cassette
tape are not removed.
• When recording from line sources, choose the desir
program (Tuner, Turntable, CD etc.,) on your amplifier.
Recording
I. When you wish to record through Dolby B or Dolby C
NR circuit, depress the Dolby NR button, and then set the
Dolby BIC selector button to the desired position.
2. Set the Tape Selector according to the type used.
3. Turn on the deck POWER switch.
4. Depress PAUSE button, then simultaneously depress
REC button.
5. Adjust the recording level for left and right channels with
Recording Level Sliders so that the peak level indicator
readings do not exceed to Oand + 3 dB position frequently,
and when they do only very briefly.
6. After adjusting recording level, depress the PAUSE but-
ton again to put the unit into recording mode and to start the
tape movement.
7. Carefully watch the LED indication during recording as
well PAUSE button may be used to temporarily halt recording.
8. Depress STOP/EJECT button when recording is finish-
ed. When the end of the tape is reached, the recording mode
will automatically disengage and tape stops.
Playback
1. Set the Dolby NR button in depressed position when you
playback a tape recorded with Dolby NR. Release the but-
ton when you playback a tape not recorded with Dolby NR.
When you playback a tape recorded with Dolby NR, also set
the Dolby BIC selector button according to whether Dolby
B or Dolby C is used.
2. Set the tape selector to match the type of tape used
3. Turn on the Power switch on your amplifier, keeping its
volume control set to minimum.
4. Turn on the Power switch on this Cassette Deck.
5. Depress PLAY button and playback will begin. Raise the
volume to the desired level.
6. To momentarily halt playback, depress the PAUSE but-
ton. When you wish to end playback, depress the
STOP/EJECT button. When the tape comes to an end, its
stops automatically and playback mode is disengage.
HEAD CLEANING
The most frequent cause of failure to record in one or both
channels, or of weak, distorted sound, is dirty tape heads and
capstan. So, be sure to clean the heads, capstan, pinch roller
and tape guides as often as possible using a "Q" tip dipped
in ordinary rubbing alcohol or commercial liquid tape head
cleaner. Thoroughly wipe the surface of the heads, capstan,
roller and tape guide.
HEAD DEMAGNETIZING
The tape heads, capstan and tape guides gradually become
magnetized with use, which will eventually affect the sound
quality of your tapes. Demagnetizing should follow cleaning,
but need not take place as often as cleaning, once after every
20 to 30 hours Of use Should suffice,
A demagnetizer may be purchased at a moderate cost from
any dealer carrying tape recording accessories. Follow the
instruction supplied with the demagnetizer.
Caution: Be sure to turn off the unit before you attempt
demagnetizing.
SPECIFICATIONS
Heads: Rec/PIay.........
Hi-B Permalloy
Erase ..............................Ferrite core
......................4-track/2-channel
Track...
Tape Speed...... ........4.8cm/sec.
Electronic DC Governor
Motor.......,
...0.2% (DIN)
Wow and Flutter...
0.08% (WRMS)
Distortion (RECIPB, 400 Hz)........l .00,'0(METAL)
Frequency Response ( —20 dB). ..Normal LH 30 to 15.000Hz±3dB
SPECIAL 30 to 15.000Hz±3dB
30 to 16.000Hz±3dB
Metal
Signal-Noise Ratio (WTD.
O dB = 580mV, Chromium)... .Dolby NR in 64 dB (B type)
72 dB (C type)
Dolby NR out: 55dB
Input Sensitivity/lmpedance .........LINE 58 mV/33 kohms
Output Level/lmpedance:
LINE.. . ..................540 mV/1 kohm
Fast Wind Time (C-60)..
110 seconds
Tape Selector BIAS EQUALIZER
Normal, LH.. 120
Special... 160% 70 gs
Metal... ...220% 70
MISCELLANEOUS
Power Requirement .....................120V/60Hz, 220V/50Hz or 240V/
50 Hz.
(depending on destinations)
Power Consumption.. ...20 watts
.444(W) x 118 (H) x 290 (D) mm
Dimensions (Overall).....
17-15/33" x 4-21/32" x 11-7/16"
Weight ...4.1 kg/9.02 lbs
• Specifications and design subject to possible modification
without notice.
• Dolby and the double-D symbol are trade marks of Dolby
Laboratories Licensing Corporation.
Noise reduction system manufactured under license from Dolby
Laboratories Licensing Corporation.
