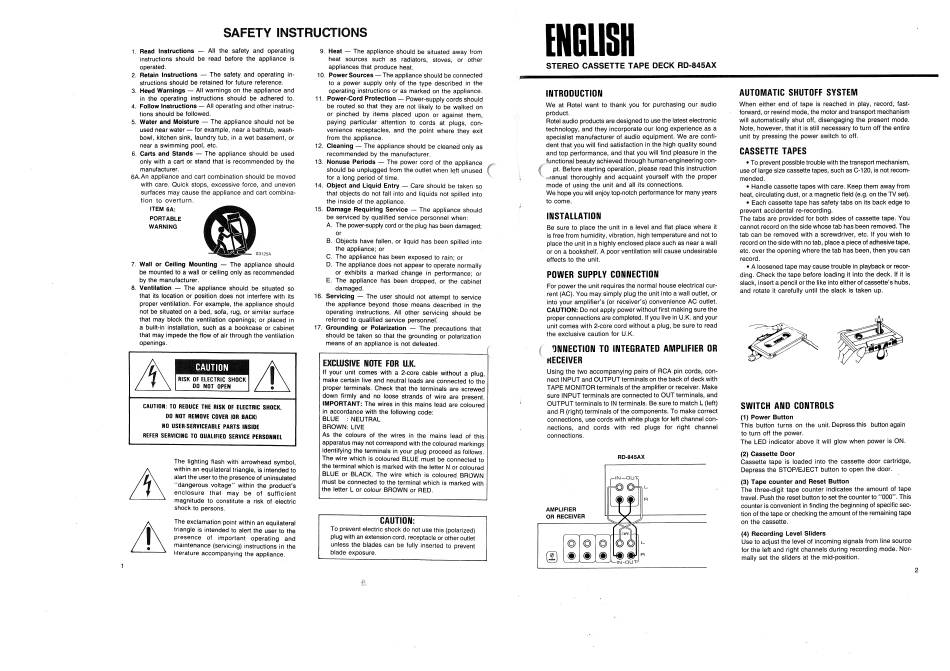

SAFETY
INSTRUCTIONS
I. Read Instructions
— All the safety and operating
instructions
should
be read before
the appliance
is
operated.
2. Retain Instructions
— The safety and operating in-
structions
should be retained
for future reference.
3. Heed Warnings — All warnings on the appliance and
in the operating instructions
should be adhered to.
4. Follow Instructions
— All operating and other instruc-
tions
should
be followed
5. Water and Moisture — The appliance should not be
used near water — for example, near a bathtub, wash-
bowl, kitchen sink, laundry
tub, in a wet basement,
or
near a swimming pool, etc.
6. Carts and Stands — The appliance should be used
only with a cart or stand that is recommended by the
manufacturer.
6A.An appliance
and cart combination
should
be moved
with care. Quick stops, excessive force, and uneven
surfaces may cause the appliance and cart combina-
tion
to overturn.
ITEM GA:
PORTABLE
WARNING
S3'25A
7. Wall or Ceiling
Mounting
— The appliance should
be mounted to a wall or ceiling only as recommended
by the manufacturer.
8. Ventilation
— The appliance should be situated so
that its location
or position
does not interfere
with its
proper ventilation. For example, the appliance should
not be situated on a bed, sofa, rug, or similar surface
that may block the ventilation openings; or placed in
a built-in
installation,
such as a bookcase
or cabinet
that may impede the flow of air through the ventilation
openings.
CAUTION
RISK OF ELECTRICSHOCK
DO NOT OPEN
CAUTION: T O REDUCE THERISKOF ELECTRIC SHOCK,
DO NOTREMOVE COVER (ORBACK)
NO USER-SERVICEABLE PARTS INSIDE
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL
The lighting flash with arrowhead symbol,
within an equilateral triangle, is intended to
alart the user to the presence of uninsulated
"dangerous
voltage" within the product's
enclosure
that
may be of sufficient
magnitude
to constitute
a risk of electric
shock to persons.
Theexclamation pointwithinan equilateral
triangle is intended to alert the user to the
presence of important operating and
maintenance (servicing) instructions in the
literature accompanying the appliance.
9.
Heat — The appliance should be situated away from
heat sources such as radiators,
stoves,
or other
appliances that produce heat.
10.
Power Sources — The appliance should be connected
to a power supply only Of the type described in the
operating instructions or as marked on the appliance.
II.
Power-Cord Protection — Power-supply cords should
be routed so that they are not likely to be walked on
or pinched by items placed upon or against them,
paying particular attention to cords at plugs, con-
venience receptacles, and the point where they exit
from the appliance.
12.
Cleaning — The applianceshould be cleanedonly as
recommended by the manufacturer.
13.
Nonuse Periods — The power cord of the appliance
should be unplugged from the outlet when left unused
for a long period of time.
14.
Object and Liquid Entry — Care should be taken so
that objects do not fall into and liquids not spilled into
the inside of the appliance.
Damage Requiring Service — The appliance should
15.
be serviced by qualified service personnel when:
A.
The power-supply cordor the plug hasbeen damaged;
or
B.
Objects have fallen, or liquid has been spilled into
the appliance;
or
C.
The appliance has been exposed to rain; or
The appliancedoesnot appearto operatenormally
D.
or exhibits a marked change in performance; or
E.
The appliance has been dropped, or the cabinet
damaged.
16.
Servicing — The user should not attempt to service
the appliance beyond those means described in the
operating instructions. All other servicing should be
referred to qualified service personnel'.
Grounding or Polarization — The precautions that
17.
should be taken so that the grounding or polarization
means of an appliance is not defeated.
EXCLUSIVE NOTE FOR ILK.
•If your unit comes with a 2-core cable without a plug,
make certain live and neutral leads are connected to the
proper terminals. Check that the terminals are screwed
down firmly and no loose strands of wire are present.
IMPORTANT: The wires in this mains lead are coloured
in accordance with the following code:
BLUE
• NEUTRAL
BROWN:
LIVE
As the colours of the wires in the mains lead of this
apparatus may not correspondwith the coloured markings
identifying the terminals in your plug proceed as follows.
The wire which is coloured BLUE must be connected to
the terminal which is marked with the letter N or coloured
BLUE or BLACK. The wire which is coloured BROWN
must be connected to the terminal which is marked with
the letter L or colour
BROWN
or RED.
CAUTION:
To preventelectricshockdonot usethis (polarized)
plug with an extensioncord, receptacleor other outlet
unless the bladescan be fully insertedto prevent
blade exposure.
ENGLISH
STEREO
CASSETTE
TAPE
DECK
RD-845AX
INTRODUCTION
We at Rotel want to thank you for purchasing our audio
product.
Rotel audio products are designed to usethe latest electronic
technology, and they incorporate our long experience as a
specialist manufacturer of audio equipment. We are confi-
dent that you will find satisfaction in the high quality sound
and top performance, and that you will find pleasure in the
functional beauty achieved through human-engineering con-
pt. Before starting operation, please read this instruction
-,nanual thoroughly and acquaint yourself with the proper
mode of using the unit and all its connections.
We hope you will enjoy top-notchperformancefor manyyears
to come.
INSTALLATION
Be sure to place the unit in a level and flat place where it
is free from humidity, vibration, high temperature and not to
place the unit in a highly enclosed place such as near a wall
or on a bookshelf. A poor ventilation will cause undesirable
effects
to the
unit.
POWER SUPPLY CONNECTION
For power the unit requires the normal house electrical cur-
rent (AC). You may simply plug the unit into a wall outlet, or
into your amplifier's (or receiver's) convenience AC outlet.
CAUTION: Do not apply power without first making sure the
proper connections are completed. If you live in U.K. and your
unit comes with 2-core cord without a plug, be sure to read
the exclusive
caution
for U.K.
')NNECTION TO INTEGRATED AMPLIFIER OR
HECEIVER
Using the two accompanying pairs of RCA pin cords, con-
nect INPUT and OUTPUT terminals
on the back of deck with
TAPE MON ITOR terminals of the amplifier or receiver. Make
sure INPUT terminals
are connected
to OUT terminals,
and
OUTPUT terminals to IN terminals. Be sure to match L (left)
and R (right) terminals of the components. To make correct
connections, use cords with white plugs for left channel con-
nections,
and cords
with red plugs for right channel
connections.
RD-845AX
IN—OUT
AMPLIFIER
OR RECEIVER
TAPE
o
AUTOMATIC
SHUTOFF SYSTEM
When either end Of tape is reached in play, record, fast-
forward, or rewind mode, the motor and transport mechanism
will automatically
shut off, disengaging
the present mode.
Note, however, that it is still necessary to turn off the entire
unit by pressing the power switch to off.
CASSETTE TAPES
• To prevent possible trouble with the transport mechanism,
use of large size cassette tapes, such as C-120, is not recom-
mended.
• Handle cassette tapes with care. Keep them away from
heat, circulating dust, or a magnetic field (e.g. on the TV set).
• Each cassette tape has safety tabs on its back edge to
prevent accidental re-recording.
The tabs are provided for both sides of cassette tape. You
cannot record on the side whose tab has been removed. The
tab can be removed with a screwdriver, etc. If you wish to
record on the side with no tab, place a piece of adhesive tape,
etc. over the opening where the tab has been, then you can
record.
• A loosened tape may cause trouble in playback or recor-
ding. Check the tape before loading it into the deck. If it is
slack, insert a pencil or the like into either of cassette's hubs,
and rotate it carefully until the slack is taken up.
SWITCH AND CONTROLS
(I) Power Button
This button turns on the unit. Depress this button again
to turn off the power.
The LED indicator above it will glow when power is ON.
(2) Cassette Door
Cassette tape is loaded into the cassette door cartridge,
Depress the STOP/EJECT button to open the door.
(3) Tape counter and Reset Button
The three-digit tape counter indicates the amount of tape
travel. Push the reset button to set the counter to "000".
This
counter is convenient in finding the beginning of specific sec-
tion of the tape or checking the amount of the remaining tape
on the
cassette.
(4) Recording Level Sliders
Use to adjust the level of incoming signals from line source
for the left and right channels during recording mode. Nor-
mally set the sliders at the mid-position.
2
